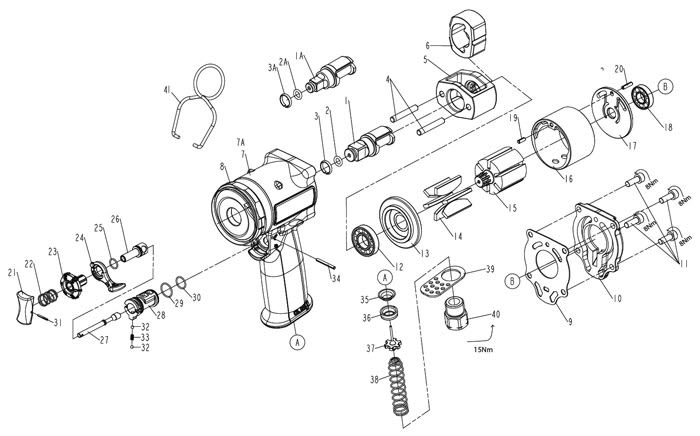

CP7731 3/8" Impact Wrench Repair Parts


Index
No.
Part No.
Description
No.
Req'd
4
8940171604
Hammer Pin
2
5
8940171605
Hammer Frame
1
6
8940171606
Hammer
1
7
8940171691
Housing (CP7732)
1
7A
8940172273
Housing (CP7731) 1
14
8940171608
Blades Set
6
15
8940171609
Rotor
1
16
8940171610
Cylinder
1
8
8940171611
Cover
1
40
8940171612
Air Inlet
1
41
8940171613
Hook
1
-
8940171614 Rear Cover Kit
9

Packing
1
10

Rear Cover
1
11

Hex. Soc. Hd. Bolt
4
-
8940171618 Front Plate Kit
12
8940171619
Bearing
1
13

Front Bearing Plate
1
19

Spring Pin
1
-
8940171622 Rear Plate Kit
17

Rear End Plate
1
18
8940171624
Bearing
1
20

Spring Pin
1
-
8940172272
Anvil Kit (CP7731)
1A

Anvil
1
-
2050556893 Socket Retaining Kit (CP7731)
2A

O-Ring
5
3A

Socket Ring
5
-
8940171599 Anvil Kit (CP7732)
1

Anvil
1
-
2050556923 Socket Retaining Kit (CP7732)
2

O-Ring
5
3

Socket Ring
5
-
8940171626 Regulator Reverse Trigger Kit
34

Spring Pin
1
-
8940171628 Trigger Kit
21

Trigger
1
22

Spring
1
27

Trigger Tip
1
31

Spring Pin
1
-
8940171633 Reverse Kit
24

Lever
1
28

Reverse Valve
1
29

O-Ring
1
30

O-Ring 1
32

Ball
2
33

Positioning Spring
1
-
8940171640 Regulator Kit
23

Regulator A
1
25

O-Ring
1
26

Regulator B
1
-
8940171644 Throttle Valve Kit
35

Seal Bushing
1
36

Seal
1
37

Tip Valve
1
38

Spring
1
-
8940171649 Tune-Up Kit
(Incl: 9, 14, 25, 29, 30)
-
8940171655 Small Parts Kit
19

Spring Pin
1
20

Spring Pin
1
22

Spring
1
26

Regulator B
1
27

Trigger Tip
1
31

Spring Pin
1
34

Spring Pin
1
39

Exhaust Deflector
1
Sort By:
Page of 1
2050556893 Chicago Pneumatic Socket Retaining Kit - 3/8" R
2050556893 Chicago Pneumatic Socket Retaining Kit - 3/8" R
Price $2.30

2050556893 Chicago Pneumatic Socket Retaining Kit - 3/8" R more info
2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R
2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R
Price $2.00

2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R more info
8940171599 Chicago Pneumatic Anvil Kit
8940171599 Chicago Pneumatic Anvil Kit
Price $47.60

8940171599 Chicago Pneumatic Anvil Kit more info
8940171604 Chicago Pneumatic Hammer Pin (Set Of 2)
8940171604 Chicago Pneumatic Hammer Pin (Set Of 2)
Price $8.40

8940171604 Chicago Pneumatic Hammer Pin (Set Of 2) more info
8940171605 Chicago Pneumatic Hammer Frame
8940171605 Chicago Pneumatic Hammer Frame
Price $47.60

8940171605 Chicago Pneumatic Hammer Frame more info
8940171606 Chicago Pneumatic Hammer
8940171606 Chicago Pneumatic Hammer
Price $26.60

8940171606 Chicago Pneumatic Hammer more info
8940171608 Chicago Pneumatic Blades (Set Of 6)
8940171608 Chicago Pneumatic Blades (Set Of 6)
Price $11.20

8940171608 Chicago Pneumatic Blades (Set Of 6) more info
8940171609 Chicago Pneumatic Rotor
8940171609 Chicago Pneumatic Rotor
Price $39.20

8940171609 Chicago Pneumatic Rotor more info
8940171611 Chicago Pneumatic Cover
8940171611 Chicago Pneumatic Cover
Price $30.80

8940171611 Chicago Pneumatic Cover more info
8940171612 Chicago Pneumatic Air Inlet
8940171612 Chicago Pneumatic Air Inlet
Price $7.00

8940171612 Chicago Pneumatic Air Inlet more info
8940171613 Chicago Pneumatic Hook
8940171613 Chicago Pneumatic Hook
Price $4.20

8940171613 Chicago Pneumatic Hook more info
8940171614 Chicago Pneumatic Rear Cover Kit
8940171614 Chicago Pneumatic Rear Cover Kit
Price $25.20

8940171614 Chicago Pneumatic Rear Cover Kit more info
8940171618 Chicago Pneumatic Front Plate Kit
8940171618 Chicago Pneumatic Front Plate Kit
Price $23.80

8940171618 Chicago Pneumatic Front Plate Kit more info
8940171619 Chicago Pneumatic Bearing
8940171619 Chicago Pneumatic Bearing
Price $7.00

8940171619 Chicago Pneumatic Bearing more info
8940171622 Chicago Pneumatic Rear Plate Kit
8940171622 Chicago Pneumatic Rear Plate Kit
Price $33.60

8940171622 Chicago Pneumatic Rear Plate Kit more info
8940171624 Chicago Pneumatic Bearing
8940171624 Chicago Pneumatic Bearing
Price $8.40

8940171624 Chicago Pneumatic Bearing more info
8940171626 Chicago Pneumatic Regulator Reverse Trigger Kit
8940171626 Chicago Pneumatic Regulator Reverse Trigger Kit
Price $33.60

8940171626 Chicago Pneumatic Regulator Reverse Trigger Kit more info
8940171628 Chicago Pneumatic Trigger Kit
8940171628 Chicago Pneumatic Trigger Kit
Price $8.40

8940171628 Chicago Pneumatic Trigger Kit more info
8940171633 Chicago Pneumatic Reverse Kit
8940171633 Chicago Pneumatic Reverse Kit
Price $21.00

8940171633 Chicago Pneumatic Reverse Kit more info
8940171640 Chicago Pneumatic Regulator Kit
8940171640 Chicago Pneumatic Regulator Kit
Price $11.20

8940171640 Chicago Pneumatic Regulator Kit more info
8940171644 Chicago Pneumatic Throttle Valve Kit
8940171644 Chicago Pneumatic Throttle Valve Kit
Price $8.40

8940171644 Chicago Pneumatic Throttle Valve Kit more info
8940171649 Chicago Pneumatic Tune Up Kit
8940171649 Chicago Pneumatic Tune Up Kit
Price $16.80

8940171649 Chicago Pneumatic Tune Up Kit more info
8940171655 Chicago Pneumatic Small Parts Kit
8940171655 Chicago Pneumatic Small Parts Kit
Price $9.80

8940171655 Chicago Pneumatic Small Parts Kit more info
8940171691 Chicago Pneumatic Housing Cp7732
8940171691 Chicago Pneumatic Housing Cp7732
Price $87.36

8940171691 Chicago Pneumatic Housing Cp7732 more info
CP7732 Chicago Pneumatic 1/2" Stubby Impact Wrench
CP7732 Chicago Pneumatic 1/2" Stubby Impact Wrench
Price $128.97

CP7732 1/2" Stubby Impact Wrench - This compact and light weight 1/2" square drive pistol style impact wrench has a steel front cover, aluminum body, ambidextrous forward / reverse, 3 power settings and a jumbo hammer. This easy to use and powerful tool is only 4.4" long and is ideal for limited space applications. more info
