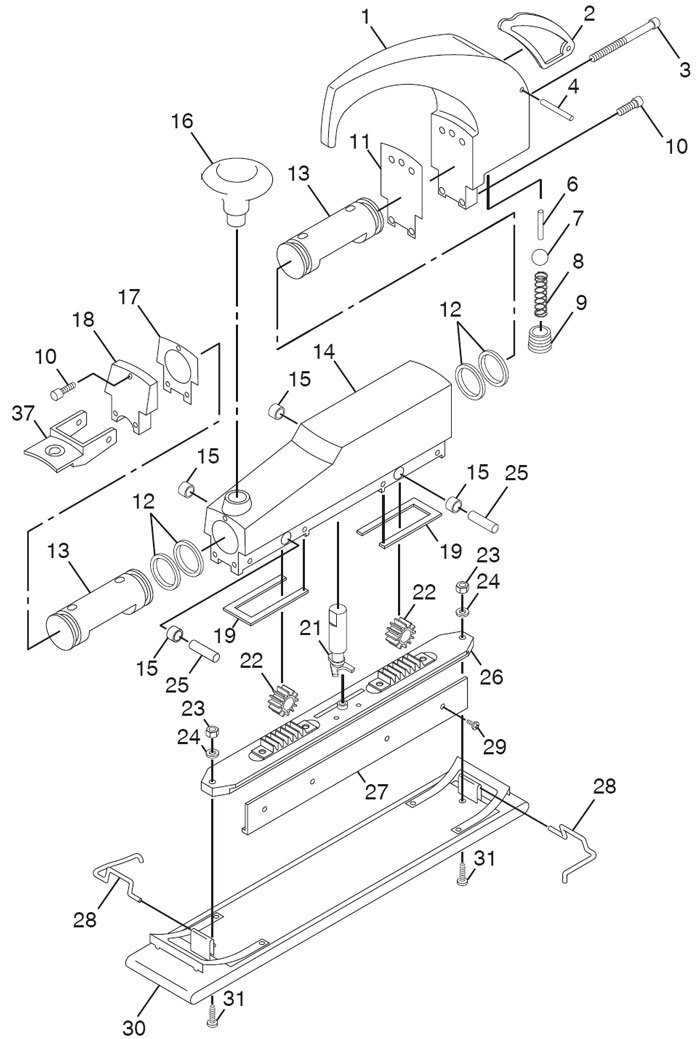

| Index No. | Part No. | Description | No. Req'd |
| 1 | KF136287 | Handle | 1 |
| 2 | KF134215 | Lever- Throttle | 1 |
| 3 | KF124298 | Screw- Allen (Long) | 2 |
| 4 | KF130949 | Pin- Throttle Lever | 1 |
| 6 | KF127260 | Pin- Valve | 1 |
| 7 | C043691 | Valve- Throttle Ball | 1 |
| 8 | A088212 | Spring- Throttle Valve | 1 |
| 9 | C068799 | Plug- Pipe | 1 |
| 10 | C078984 | SocketHead Screw | 5 |
| 11 | KF124337 | Gasket- Valve (Housing) | 1 |
| 12 | KF130955 | Ring- Packing | 4 |
| 13 | KF127243 | Piston | 2 |
| 14 | KF137780 | Housing- Piston (Incl Index No: 20) | 1 |
| 15 | KF124348 | Bearing- Needle | 4 |
| 16 | KF124359 | Knob | 1 |
| 17 | KF137779 | Gasket- Front Cover | 1 |
| 18 | KF137778 | Cover- Front | 1 |
| 19 | KF136324 | Strip- Wear | 2 |
| 21 | KF127269 | Valve | 1 |
| 22 | KF124340 | Gear- Piston | 2 |
| 23 | C018515 | Nut- Hex | 2 |
| 24 | P072435 | Lockwasher | 2 |
| 25 | KF124368 | Shaft- Bearing | 2 |
| 26 | KF137781 | Carrier(CP768) | 1 |
| 27 | KF124345 | Plate- Side | 2 |
| 28 | KF136445 | (Discontinued) Lever- Clamp | 2 |
| 29 | KF124347 | Screw- Truss Head (CP768) | 8 |
| 30 | KF125457 | Shoe- Sanding (CP768) (Incl Index Nos: 23, 24, 28 & 31) | 1 |
| 31 | KF136446 | Screw- Socket Button Head | 2 |
| 37 | KF139845 | Guard- Carrier | 1 |
| - | CA144007 | SafetyLabel (Not Shown) | 1 |
| - | KF137298 | WarningLabel (Not Shown) | 1 |
