6023 Associated Battery Charger Parts List


MODEL 6023 REPAIR PARTS

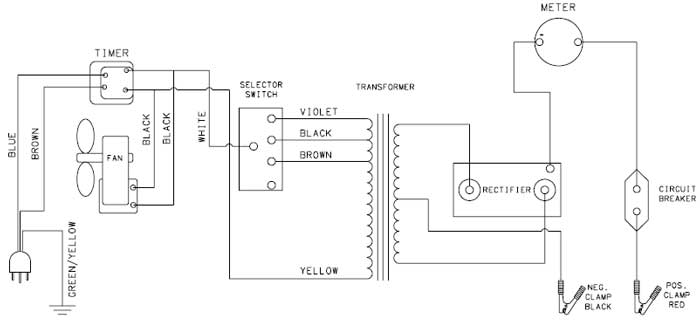

Diagram # Description Part Number

Timer 611272

Switch 610560

Axle w/nuts 610052

Wheels w/nuts (2) 605672

Transformer 610906

Rectifier 610850

Fan Blade 610189

Fan Motor 610750

DC Circuit Breaker (1) 610536

Ammeter 610829

AC Cord 610548

DC Cable Set 610907

Handle 610753

MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of DC Cable Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
Sort By:
Page of 1
600121 Associated Meter Cover 600121 Associated Meter Cover

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others

Price $10.02

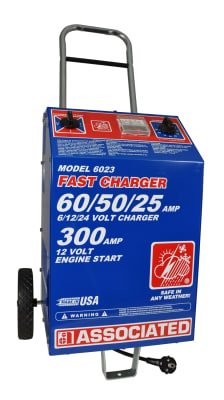

6023 Associated 60/50/25/300 Amp 6/12/24 Volt Commercial Automotive Battery Charger (230 VAC) 6023 Associated 60/50/25/300 Amp 6/12/24 Volt Commercial Automotive Battery Charger (230 VAC)

Made In The USA6023 Associated 60/50/25/300 Amp 6/12/24 Volt Commercial Automotive Battery Charger (230 VAC; 50/60 HZ). The Flagship Model 220 volt fleet car battery charger on the market, with a boost rating of 300 Amps. Charges 6, 12 and 24 volt batteries. UL listed for indoor/outdoor use, "Safe In Any Weather". Charges 6, 12, and 24 volt batteries. Heavy-duty transformer, patented "Sub-Sil" multi diode rectifiers, longer AC cord and DC leads are standard features for higher performance. UL listed for indoor/outdoor use, "Safe In Any Weather".

Price $679.97
603147 Associated Pointer Knob (Press-On) 603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $10.95
610175 Fan Motor 220 Volt 610175 Fan Motor 220 Volt

610175 Fan Motor 220 Volt

Price $74.80
610180 Associated Knob 610180 Associated Knob

Associated 610180 KNOB

Price $21.92
610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $14.39
610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $62.04
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit 610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Discontinued
610548 Associated A/C Cord Europe 610548 Associated A/C Cord Europe

610548 Associated A/C Cord Europe

Price $48.05
610555 Associated Mechanical Timer With Knob 610555 Associated Mechanical Timer With Knob

Discontinued See 610389. Mechanically controls charging in timed Mode with manual hold mode. Two Independant Single Pole Single Throw (SPST) Switches rated 15 amperes. Includes 610931 Knob & (2) #6-20 self-tapping, thread-cutting (type 25) screws.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Discontinued See 610389
610560 Associated 8 Position Rotary Selector Switch With Knob 610560 Associated 8 Position Rotary Selector Switch With Knob

610560 Associated 8 Position Rotary Selector Switch With Knob

Price $42.28
610748 Associated Transformer 6023 610748 Associated Transformer 6023

610748 Associated Transformer 6023

Price $573.24
610749 Associated Rectifier 6023 610749 Associated Rectifier 6023

610749 Associated Rectifier 6023

Price $88.40
610752 Associated DC Cable Set 6023 610752 Associated DC Cable Set 6023

610752 Associated DC Cable Set 6023

Price $295.97
610829 Associated Ammeter 0-100 Amp Range W/ Boost 610829 Associated Ammeter 0-100 Amp Range W/ Boost

Associated 610829 Ammeter 0-100 Amp Range w/ Boost. Includes Mounting Template and mounting hardware.

Price $58.12
610850 Associated Rectifier Assy 20 Diode 6x7.76 610850 Associated Rectifier Assy 20 Diode 6x7.76

Associated 610850 Rectifier Installation Kit. The Highest rated Rectifier on the market, completely assembled, includes mounting hardware and insulators.

Price $44.64
610895 Associated Timer W/Knob 610895 Associated 90 Minute Mechanical Timer With Knob

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.

Discontinued See 611254
610907 Associated DC Cable Assembly 610907 Associated DC Cable Assembly

DC CABLE ASSEMBLY

Price $237.30
610931 Associated Knob 610931 Associated Knob With Set Screw

610931 Associated Knob with set screw for controls with 1/4" Stem.

Price $10.95
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611272 Associated 150 Min 230V Electric Timer Upgrade Kit 611272 Associated 150 Minute 230V Electric Timer Upgrade Kit

611272 Associated 150 Minute 230V Electric Timer Upgrade Kit. Replaces all previous 230 volt timers. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles.

Price $160.88

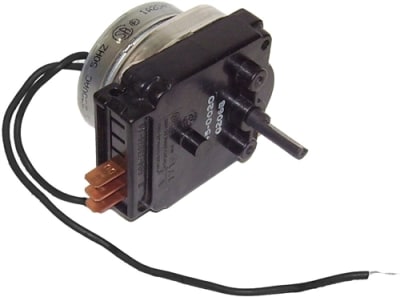

611277 Associated Timer 150 Min 230 Vac 611277 Associated Timer 150 Min 230 Vac
