51-865 Goodall 0-60/250 Amp 6/12 Volt Automatic Manual Battery Charger/Starter/Tester


Ref # Part Description
1 N/A Base
2 51-294 (2) Hubs
3 51-286 (2) Wheels, Axle and (2) Hubs
5 51-287 Fan Blade
7 51-288 Fan Motor With Blade & Mounting Bracket
8 51-289 Power Cord with Strain Relief
9 51-292 "-" Negative Clamp with Cable and Strain Relief
9 249-093-900 "-" Negative Clamp
10 51-293 "+" Positive Clamp with Cable and Strain Relief
10 249-094-900 "+" Positive Clamp
11 51-236 Rectifier Assembly
11 512-127-000 Rectifier Stand Off
12 51-240 Circuit Breaker
13 51-267 Voltmeter / Test Meter
14 51-256 Ammeter
15 51-258 Selector Switch
16 51-247 Control Knob (Timer)
16 51-247 Control Knob (Rate Selector)
17 51-268 Rate Control PC Board Assembly
18 51-248 Timer
19 51-259 Switch (Test)
21 51-295 Front Foot
Not Shown 51-290 Handle
Not Shown 51-291 Clamp Holder


Sort By:
Page of 1
246-041-888 Selector Knob 246-041-888 Selector Knob

246-041-888 Selector Knob. Fits new style plastic stem switches only.

Price $6.36
249-066-666 Solar Booster Clamps Positive & Negative 249-066-666 Solar Booster Clamps Positive & Negative

Clamps Positive & Negative. Screw Type Connection for ring terminal cables to anchor wire for solderless connection. Dual Hot Jaws for better power distribution. Includes Phillips anchor screws. Does not include hardware for cables, (ring terminals, solder etc...).

Discontinued - replaced by 238-006-666
249-093-900 Black Negative Booster Clamp 249-093-900 Black Negative Booster Clamp

Black Negative Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $14.45
249-094-900 Red Positive Booster Clamp 249-094-900 Red Positive Booster Clamp

Red Positive Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $14.45
412-751-666 Handle W/Hardware 412-751-666 Chrome Battery Charger Handle

412-751-666 Chrome Battery Charger Handle. Replaces 442-020-166 and other older Century / Solar Handles

Price $30.55
442-020-166 Century Battery Charger Handle 442-020-166 Century Battery Charger Handle

442-020-166 Century Battery Charger Handle. Flat side black painted finish.

Price $14.85
51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. 51-236 Goodall 250 Amp Heatsink Rectifier

51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. Extra Long center studs for thick transformer lead wires.

Discontinued See 865-682-666
51-240 Circuit Breaker 90 Amp 51-240 Circuit Breaker 90 Amp

SLA90 Circuit Breaker, Open construction, automatic reset, 90 Amp, no terminal Hardware

Price $34.74
51-247 Goodall Selector Knob 51-247 Goodall Timer Knob

51-247 Timer Knob. Skirted Side for 1/4" O.D. 3/4 Shaft switches.

Our Price: $15.99
51-248 Mechanical Timer 2 Hour 51-248 Mechanical Timer 2 Hour

Mechanically controls charging in timed Mode. Single Pole Double Throw (SPDT) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Price $51.54

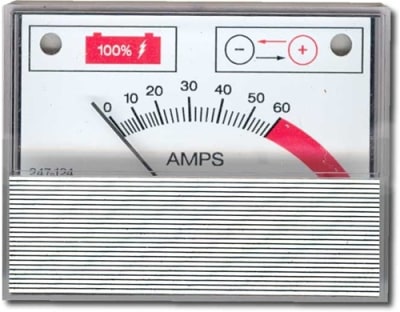

51-256 Goodall Ammeter Horizontal 0-60 Amp Range 51-256 Goodall Ammeter Horizontal 0-60 Amp Range

Horizontal ammeter with a 0-60 amp range and a red high amp zone for boost or start. Easy snap in installation with "Wire-Through" induction pick-up on the back. Lamp sockets (red / green indicators) for battery charge and polarity indicators.

Price $29.94
51-258 Switch Three Position DPTT 15 Amp (On-Off-On) 51-258 Switch Three Position DPTT 15 Amp (On-Off-On)

Goodall Voltage Selector Switch. Three Position Double Pole Triple Throw (On-Off-On) 15 Amp Rating 1/4 Quick Connect Terminals.

Price $38.55
51-259 Goodall Switch Momentary Test Switch (On-Mom) 51-259 Goodall Switch Momentary Test Switch (On-Mom)

51-259 Goodall Switch Momentary Test Switch (On-Mom)

Price $29.94
51-267 Goodall Voltmeter / Testmeter Horizontal (Less PC Board) 51-267 Goodall Voltmeter / Testmeter Horizontal (Less PC Board)

51-267 Goodall Voltmeter / Testmeter Horizontal (Less PC Board)

Price $29.76
51-268 Goodall Amp Control Board Switch 51-268 Goodall Amp Control Board Switch

51-268 Goodall amp control board and switch provides infinite amperage control.

Price $81.54
51-269 Circuit Board For Volt/Test Meter 51-269 Circuit Board For Volt/Test Meter

51-269 Circuit Board For Volt/Test Meter

Price $24.50
51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units 51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units

51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units

Price $52.03

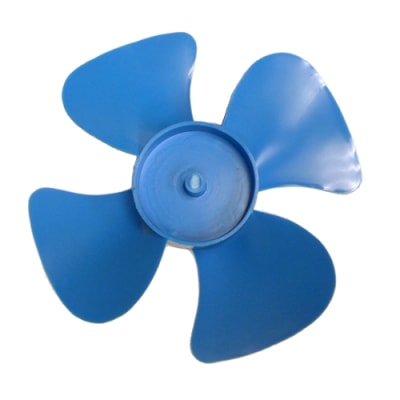

51-287 Fan Blade 6" 4 Blade 51-287 Fan Blade 6" 4 Blade

51-287 Fan Blade 6" 4 Blade

Price $15.42
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
51-289 115 Volt Power Cord Grounded 16/3 SJTO 51-289 115 Volt Power Cord Grounded 16/3 SJTO

51-289 115 Volt Power Cord Grounded 16/3 SJTO 1/4" Quick Disconnect terminals on black & white with ring terminal on ground.

Price $27.00
51-290 Handle Wheeled Units 51-290 Handle Wheeled Units

51-290 Handle Wheeled Units

Price $18.00
51-291 Century Battery Charger Clamp Holder 51-291 Century Battery Charger Clamp Holder

51-291 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round bar battery charger handle.

Price $14.40
51-292 Negative Cable & Clamp Assembly 6ga 84" 51-292 Negative Cable & Clamp Assembly 6ga 84"

51-292 Negative Cable & Clamp Assembly 6ga 84"

Price $30.60
51-293 Positive Cable & Clamp Assembly 6ga 106" 51-293 Positive Cable & Clamp Assembly 6ga 106"

51-293 Positive Cable & Clamp Assembly 6ga 106"

Price $30.60
51-294 Wheel Hub For 3/8" Axle 51-294 Wheel Hub For 3/8" Axle

51-294 Wheel Hub For 3/8" Axle

Price $1.80
51-295 Front Foot With Hardware 51-295 Front Foot With Hardware

51-295 Front Foot With Hardware

Price $5.40

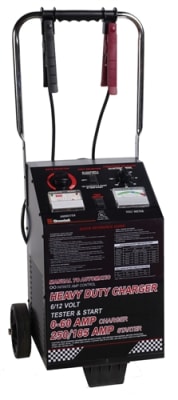

51-865 Goodall 0-60/250 Amp 6/12 Volt Automatic Manual Automotive Battery Charger/Starter/Tester 51-865 Goodall 0-60/250 Amp 6/12 Volt Automatic Manual Automotive Battery Charger/Starter/Tester

The Goodall 51-865 charger is the ultimate in automotive battery charging and maintenance. This charger was designed for foolproof charging for the do it yourself-er, professional mechanics and field operators alike. Advanced Features include: Fully Automatic Mode - turns ON and OFF as needed. 2 Hour Timer - Select up to two hours of manual charging time. Switches to 10 amp, fully automatic charge when time is up. Infinite Amperage Control - Select ANY charge rate from .3 amps to 60 amps. Test Feature - Test battery for percent of charge. Test alternator performance. Test for problem conditions. Indicator Lights In Meter - Red Light reverse polarity Green Light indicates battery is at full charge.

Discontinued See PL3760
512-127-000 Rectifier Insulator Standoff 512-127-000 Rectifier Insulator Standoff

512-127-000 Rectifier Insulator Standoff. Connects to the back wall of the charger chassis to provide a mount for the rectifier.

Price $3.85
865-682-666 Heatsink Rectifier Kit 865-682-666 Heatsink Rectifier

865-682-666 Heatsink Rectifier.  Product as pictured.  Does not include any mounting hardware (512-127-000).

Price $44.85
865-926-666 Century Rectifier 250 Amp 12 Diode 60 Amp Continuous Duty 865-926-666 Century Rectifier 250 Amp 12 Diode

865-926-666 Century Rectifier 250 Amp 12 Diode 60 Amp Continuous Duty. Fits Most Older Century & Solar Models

Price $69.50
