117-011 2175 Solar 130 amp MIG welder

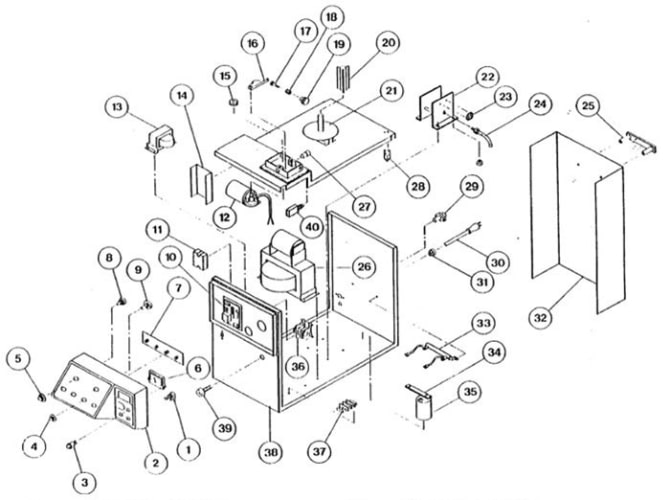

117-011 Replacement Parts List
Item No.
Customer #
Description
1
216-058-000
Push-on Momentary Switch
2
312-047-000
Molded Nose
3
245-059-000
Power Light
4
246-139-000
Knob 1"
5
246-140-000
Knob 1.5"
6
247-031-000
Wire Speed Meter
7
860-489-000
Spot Stitch Board
8
246-120-000
Potentiometer, 5k, 1/4 Watt
9
246-052-666
Switch, 9 Position
10
860-614-666
Main Circuit Board with Transistor
11
216-055-666
Triac Relay 40 Amp
12
860-581-100
Drive Motor, 24 Volt DC
13
880-041-888
Drive Transformer 230 Volt AC - 24 Volt AC
14
221-006-666
Drive Transistor
15
4323
Drive Roller, 0.024 / 0.030 / 0.035

4324
Drive Roller, Teflon
16
310-123-000
Tension Bar with Bearing
17
081-044-000
Tension Bolt
18
330-021-000
Tension Spring
19
246-113-000
Tension Knob
20
541-083-000
Inlet Guide Tube
21
541-066-000
Plastic Washer
22
860-506-000
Heat Sink Assembly
23
216-053-000
Thermostat
24
214-004-666
Diode
25
246-103-000
Handle
26
860-652-888
Main Weld Transformer
27
410-325-000
Inlet Guide Tube
28
246-212-666
Gas Solenoid
29
246-116-000
Fuse Holder

245-060-000
Fuse, BAN30 or BLN30
30
248-164-000
Power Cord, 30'
31
541-020-000
Strain Relief
32
410-351-010
Hood
33
860-523-000
Resistor Assembly, 25 Ohm, 50 Watt
34
410-190-000
Buss Bar
35
213-018-200
Capacitor, 45,000 mf, 45 Volt DC
36
216-042-000
Power Switch, 230 Volt AC, 40 Amp
37
239-094-000
Terminal Block
38
711-149-050
Faceplate
39
312-045-000
Receptacle, Panel Mount
40
410-347-010
Right Side Panel (Not Shown)
41
410-348-010
Left Side Panel (Not Shown)
46
238-009-500
Ground Cable with Plug & Clamp, 12' (Not Shown)
47
4320
Mig Gun Assembly, 10' (Not Shown)
48
334-286-666
Gas Regulator (Not Shown)
49

Gas Hose (Not Shown)
Sort By:
071-014-908 Century Drive Roller Key Set 071-014-908 Century Drive Roller Key Set

Century Drive Roller Key Set. For use with Mig welders made by Century Mfg Co. Set includes both flat stock and woodruf keys for most welders, use when buying a new drive roller. Some older units had the key made into the drive roller, the new style drives rollers are slotted and require a woodruf key to lock them to the shaft.

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112) 131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112)

131-311-908 Gas conversion Kit (2112) Mig Gas Regulator & Hose Kit for Mig Welders. Includes adjustable regulator, 4' Gas hose and clamps, fittings for hose and welder. 0-30 CFH 2 Stage Gas regulator.

Price $149.95
216-055-666 Relay Triac 40 Amp Replaces Marquette # 43700007 216-055-666 Relay Triac 40 Amp

Relay Triac 40 Amp Replaces Marquette # 43700007

Price $107.82
221-006-666 Century Drive Transistor 221-006-666 Century Drive Transistor

221-006-666 Century Drive Transistor for 860-614-666 Circuit Board.

Price $28.48
238-009-500 Century Ground Cable & Clamp 12 Foot (4007) 238-009-500 Century Ground Cable & Clamp 12 Foot (4007)

238-009-500 Century Ground Cable & Clamp 12 Foot 2 Gauge cable with Dinse Type Machine Plug (4007)

Price $89.66
Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320 238-155-000 Gun, Mig 130 Amp 10 Ft

Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320

Discontinued
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8 brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Price $89.50
246-120-666  Potentiometer 5k Ohm 1/4 watt 246-120-666 Potentiometer 5k Ohm 1/4 watt

246-120-666  Potentiometer 5k Ohm 1/4 watt

Discontinued
246-212-666 Century Solenoid 24 Volt Air Service 246-212-666 Century Solenoid 24 Volt Air Service

246-212-666 Century Solenoid 24 Volt Air Service

Discontinued See 246-086-666
310-119-500 Century Steel Drive Roller .030 .035 .045 4341 310-119-500 Century Steel Drive Roller .030 .035 .045 4341

310-119-500 Century Steel Drive Roller .030 .035 .045 4341. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Discontinued
310-122-500 Century Steel Drive Roller .024 .030 .035 4323 310-122-500 Century Steel Drive Roller .024 .030 .035 4323

Century Drive Roller .024 .030 .035 in Part number 4323. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Price $23.70
310-154-500 Century Steel Serrated Drive Roller .045 4347. For use with Mig welders made by Century Mfg Co. 310-154-500 Century Steel Serrated Drive Roller .045 4347

310-154-500 Century Steel Serrated Drive Roller .045 4347. For use with Mig welders made by Century Mfg Co. Does Not Include "D" Or "Square" Stock Key.

Discontinued See 310-119-500
312-045-666 Receptacle Assembly 312-045-666 Receptacle Assembly

312-045-666 Front Panel Female Receptacle Kit for many Century made welders. For matching male plugs see part # 239-052-908. Replaces part # 312-028-100.

Price $74.50
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $16.54
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $56.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
334-228-000 Diffuser, Gas Mig Gun Large Id 334-228-000 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Price $40.33
541-278-666 Century Drive Roller .024 .030 .035 541-278-666 Century Drive Roller .024 .030 .035 # 4323

Century Drive Roller .024 .030 .035 in. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key, 071-014-908 Century Drive Roller Key Set.

Discontinued See 310-122-500
860-489-666 Spot Stitch Circuit Board 860-489-666 Spot Stitch Circuit Board

860-489-666 Spot Stitch Circuit Board for Century Welders. Includes board only (the wire harness must be salvaged from the old board)

Discontinued
860-614-666 Circuit Board  W/ Drive Transistor 860-614-666 Circuit Board W/ Drive Transistor

860-614-666 Circuit Board  W/ Drive Transistor. Replaces the 860-614-000 and the 510-045-000.

Discontinued
860-616-908 Century Composite Aluminum Drive Roller 43240 860-616-908 Century Composite Aluminum Drive Roller 43240

860-616-908 Century Composite Aluminum Drive Roller 43240. (860-908-002) For use with soft welding wire in all Mig welders made by Century Mfg Co.

Price $42.50
KH525 Lincoln 300 Amp Ground Clamp KH525 Lincoln 300 Amp Ground Clamp

The Lincoln Electric 300 Amp Grounding Work Clamp is designed to complete electrical circuits to help promote a positive welding arc. This clamp features wide-grip jaws to help ensure a firm connection. Helps ground your work to be welded to a good electrical (ground) earth. Will take cable sizes up to #2/0. Cable (not included) connects directly to jaws. Ensures that the work cable makes a good electrical connection with the metal being welded. Jaws have a heavy duty spring that compresses the jaws tightly against the metal object. 1-year warranty.

Price $6.30
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack) KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack)

KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack). Same as KP11-30, KP2039-2B1, M15523, Mig030.  Replaces Century and Marquette Part Numbers: 4310, 43100, 334-160-000, M15523, KP11-30 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH712 Lincoln .035" Tweco Style Mig Contact Tip (10 Pack)

KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. Replaces Century and Marquette Part Numbers: 4311, 43110, 334-161-000, M15524, KP11-35 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Price $15.75
KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel

Mig Gun Liner .035 - .045 15Ft, For most Century Solar and small Lincoln welders. Replaces KP1937-1, 4331, 334-229, 334-373 Steel Liners. For Aluminum See KP1959-1 (4325, 334-230, 334-374) - Teflon Liner.
