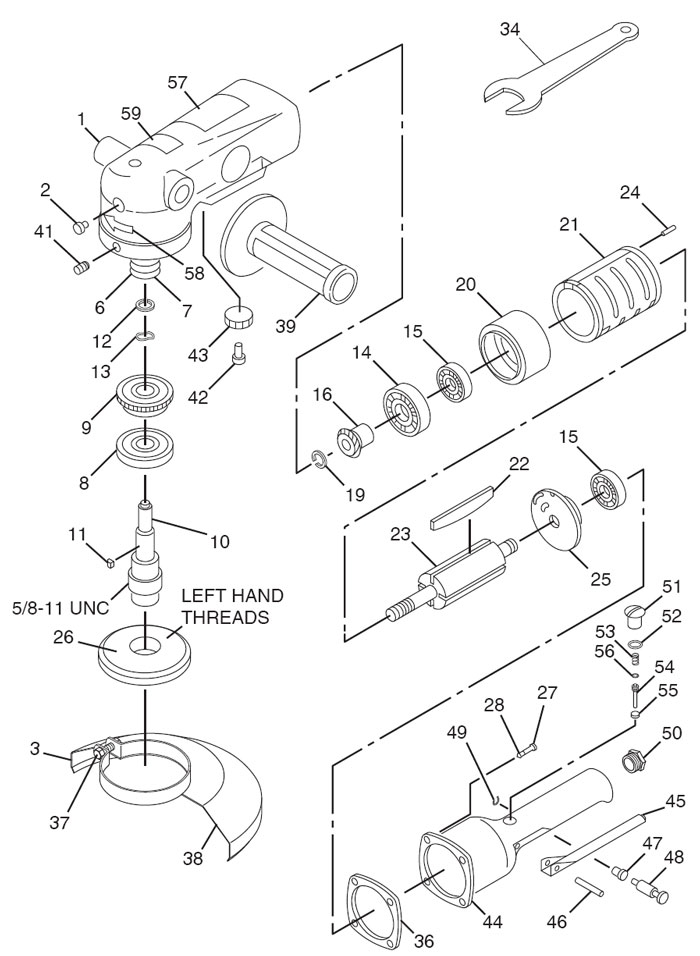

Chicago Pneumatic CP857 Angle Grinder Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA149485 Housing - Motor 1
2 C136897 Screw - Motor Housing 1
3 C139081 Guard - Wheel
(Incl Mounting Hardware)
1
6 C136846 Spacer 1
7 C066652 Bearing - Ball 1
8 C066217 Bearing - Ball 1
9 CA149483 Gear - Bevel 1
10 C141025 Shaft - Gear (0.62" -11) 1
11 C136851 Key 1
12 S086817 Ring - Retaining 1
13 KF125323 Washer - Spring 1
14 G072174 Bearing - Ball 2
15 S026055 Bearing - Ball 1
16 CA149484 Pinion - Bevel 1
19 C136859 Ring - Retaining 1
20 C136860 Plate - Front End 1
21 C136861 Liner 4
22 C136862 Blade - Rotor 1
23 C136863 Rotor 1
24 C136864 Dowel 1
25 C136865 Plate - Rear End 1
26 C136866 Spacer - Spindle 4
27 C127936 Screw - Socket Head 4
28 CA127043 Lockwasher 1
34 C141027 Wernch - Spindle (0.62" -11) 1
36 C136876 Gasket 1
37 C136877 Scrw - Wheelguard 1
38 KF124494 Nut - Wheelguard 1
39 KF125174 Handle - Dead 1
41 C136881 Screw - Motor Housing 1
42 C136882 Screw - Cap 1
43 C136883 Devlector - Exhaust 1
44 CA157721 Handle - Live Air 1
45 C136885 Lever - Throttle Valve 1
46 C136886 Pin - Throttle Lever 1
47 C136887 Spring - Lock Pin 1
48 C136888 Pin - Lock 1
49 C136889 Ring - Retaining 1
50 C136890 Bushing - Inlet 1
51 C136938 Screw - Throttle Valve 1
52 KF125295 Stem - Valve 1
53 C136893 O-Ring - Throttle Valve 1
54 C136894 Retainer - O-Ring 1
55 C136895 Warning Decal 1
56 CA148596 Label - Rotation Arrow 1
57 CA144007 Decal Guard Warning 1
58 C146046 Wrench - 3/8 Hex (Not Shown) 1
59 CA157797 Adapter Comp (Not Shown) 1
- P084363 Wrench - 3/8 Hex (Not Shown)
1
- C087920 Adapter Comp. (Not Shown)
1
