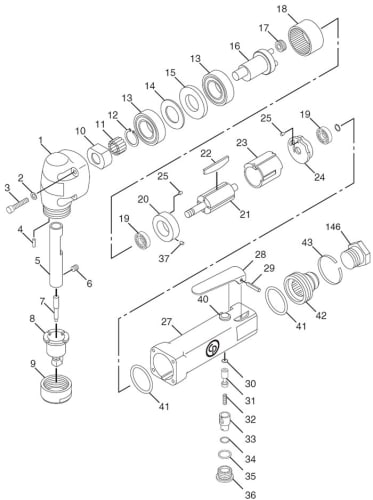

Chicago Pneumatic CP835 Air Nibbler Repair Parts


Index
No.
Part No. Description No.
Req'd
1 KF139513 Housing - Cutter 1
2 S000268 Washer - Lock 4
3 P091352 Screw - Socket Head Cap 4
4 KF137269 Pin 1
5 KF137270 Pin - Slide 1
6 KF137271 Screw - Set 1
7 KF137310 Punch (Package of 5) 1
8 KF137273 Die 1
9 KF137274 Nut - Clamp 1
10 KF137275 Cam 1
11 KF137276 Roller - Needle (Package of 13) 1
12 KF137277 Ring - Retaining 1
13 S083567 Bearing - Ball 2
14 KF137278 Plate - Seal 1
15 KF137279 Spacer 1
16 KF137280 Shaft - Crank 1
17 KF137281 Gear - Idler 3
18 KF137282 Gear - Internal 1
19 S039709 Bearing - Ball 2
20 KF139540 End Plate - Front
(Incl Index Nos: 25 & 37)
1
21 KF137284 Rotor 1
22 KF138243 Set - Rotor Blade (Package of 4) 1
23 KF125477 Liner 1
24 KF125474 End Plate - Rear
(Incl Index No: 25)
1
25 KF127209 Pin - Roll 2
26 KF137287 Ring - Retaining 1
27 KF139537 Housing - Motor
(Incl Index No: 40)
1
28 C138731 Lever - Throttle 1
29 C114089 Pin - Roll 1
30 C100129 O-Ring 1
31 KF124505 Valve - Throttle 1
32 KF124504 Spring - Compression 1
33 KF124528 Regulator - Air 1
34 P083071 O-Ring (-011) 1
35 A043001 O-Ring (-013) 1
36 KF124511 Plug - Motor Valve 1
37 KF127208 Pin - Roll 1
39 KF137311 Pin - Drive (Not Shown) 2
40 KF124507 Bushing - Throttle Valve (Not Shown) 1
41 P092536 O-Ring (-020) 2
42 KF125475 Sleeve - Exhaust 1
43 KF125476 Ring - Snap 1
44 CA144813 Decal Safety (Not Shown) 1
146 8940158447 Inlet Bushing 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
8940158447 Chicago Pneumatic Inlet Bushing 8940158447 Chicago Pneumatic Inlet Bushing

8940158447 Chicago Pneumatic Inlet Bushing

Price $17.71
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
A043001 Chicago Pneumatic O-Ring In-013 A043001 Chicago Pneumatic O-Ring In-013

A043001 Chicago Pneumatic O-Ring In-013

Price $3.44
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C100129 Chicago Pneumatic O-Ring In-009 C100129 Chicago Pneumatic O-Ring In-009

C100129 Chicago Pneumatic O-Ring In-009

Price $3.34
C114089 Chicago Pneumatic Pin-Roll .125x.875 C114089 Chicago Pneumatic Pin-Roll .125x.875

C114089 Chicago Pneumatic Pin-Roll .125x.875

Price $5.66
C138731 Chicago Pneumatic Lever-Throttle C138731 Chicago Pneumatic Lever-Throttle

C138731 Chicago Pneumatic Lever-Throttle

Price $28.03
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144813 Chicago Pneumatic Decal-Safety Warning CA144813 Chicago Pneumatic Decal-Safety Warning

CA144813 Chicago Pneumatic Decal-Safety Warning

Price $3.90
CA144889 Chicago Pneumatic Blade-Set-Rotor CA144889 Chicago Pneumatic Blade-Set-Rotor

CA144889 Chicago Pneumatic Blade-Set-Rotor

Price $12.61
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86

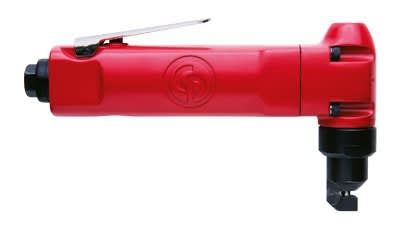

CP835 Chicago Pneumatic Air Nibbler CP835 Chicago Pneumatic Air Nibbler

CP835 Air Nibbler - This nibbler is a heavy-duty tool and it is loaded with features like: a rugged head 1.77" diameter punch, capable of cutting steel up to 16 gauge and aluminum up to 10 gauge, easy access punch and die for ease of replacement, lock-off lever, 4 optional cutting positions and easy to operate controls.

Price $342.46
KF124504 Chicago Pneumatic Spring KF124504 Chicago Pneumatic Spring

KF124504 Chicago Pneumatic Spring

Price $7.12
KF124505 Chicago Pneumatic Valve-Throttle KF124505 Chicago Pneumatic Valve-Throttle

KF124505 Chicago Pneumatic Valve-Throttle

Price $16.22
KF124507 Chicago Pneumatic Bushing-Valve KF124507 Chicago Pneumatic Bushing-Valve

KF124507 Chicago Pneumatic Bushing-Valve

Price $9.22
KF124511 Chicago Pneumatic Plug-Motor Valve KF124511 Chicago Pneumatic Plug-Motor Valve

KF124511 Chicago Pneumatic Plug-Motor Valve

Price $15.82
KF124528 Chicago Pneumatic Regulator-Air KF124528 Chicago Pneumatic Regulator-Air

KF124528 Chicago Pneumatic Regulator-Air

Price $12.61
KF125474 Chicago Pneumatic Plate-Rear End KF125474 Chicago Pneumatic Plate-Rear End

KF125474 Chicago Pneumatic Plate-Rear End

Price $47.17
KF125475 Chicago Pneumatic Sleeve-Exhaust KF125475 Chicago Pneumatic Sleeve-Exhaust

KF125475 Chicago Pneumatic Sleeve-Exhaust

Price $10.11
KF125476 Chicago Pneumatic Ring-Snap KF125476 Chicago Pneumatic Ring-Snap

KF125476 Chicago Pneumatic Ring-Snap

Price $7.16
KF125477 Chicago Pneumatic Liner KF125477 Chicago Pneumatic Liner

KF125477 Chicago Pneumatic Liner

Price $82.57
KF127208 Chicago Pneumatic Pin-Roll KF127208 Chicago Pneumatic Pin-Roll

KF127208 Chicago Pneumatic Pin-Roll

Discontinued
KF127209 Chicago Pneumatic Pin-Roll KF127209 Chicago Pneumatic Pin-Roll

KF127209 Chicago Pneumatic Pin-Roll

Price $5.41
KF137269 Chicago Pneumatic Pin KF137269 Chicago Pneumatic Pin

KF137269 Chicago Pneumatic Pin

Price $5.41
KF137270 Chicago Pneumatic Pin-Slide KF137270 Chicago Pneumatic Pin-Slide

KF137270 Chicago Pneumatic Pin-Slide

Price $110.57
KF137271 Chicago Pneumatic Screw-Set KF137271 Chicago Pneumatic Screw-Set

KF137271 Chicago Pneumatic Screw-Set

Price $5.41

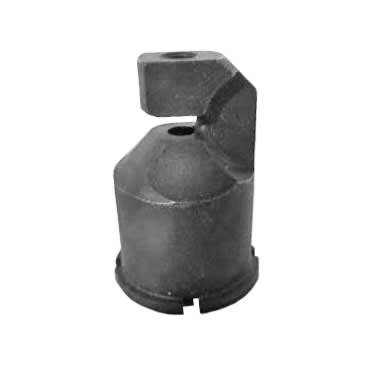

KF137273 Chicago Pneumatic Replacement Die For CPT-835 KF137273 Chicago Pneumatic Replacement Die For CPT-835

KF137273 Chicago Pneumatic Replacement Die For CPT-835

Price $96.30
KF137274 Chicago Pneumatic Nut-Clamp KF137274 Chicago Pneumatic Nut-Clamp

KF137274 Chicago Pneumatic Nut-Clamp

Price $27.99
KF137275 Chicago Pneumatic Cam KF137275 Chicago Pneumatic Cam

KF137275 Chicago Pneumatic Cam

Price $39.83
KF137276 Chicago Pneumatic Roller-Needle Set KF137276 Chicago Pneumatic Roller-Needle Set

KF137276 Chicago Pneumatic Roller-Needle Set

Price $8.67
KF137278 Chicago Pneumatic Plate-Seal KF137278 Chicago Pneumatic Plate-Seal

KF137278 Chicago Pneumatic Plate-Seal

Price $5.39
KF137279 Chicago Pneumatic Spacer KF137279 Chicago Pneumatic Spacer

KF137279 Chicago Pneumatic Spacer

Price $19.18
KF137280 Chicago Pneumatic Shaft-Crank KF137280 Chicago Pneumatic Shaft-Crank

KF137280 Chicago Pneumatic Shaft-Crank

Price $36.87
KF137281 Chicago Pneumatic Gear-Idler KF137281 Chicago Pneumatic Gear-Idler

KF137281 Chicago Pneumatic Gear-Idler

Price $11.95
KF137282 Chicago Pneumatic Gear-Internal KF137282 Chicago Pneumatic Gear-Internal

KF137282 Chicago Pneumatic Gear-Internal

Price $33.88
KF137284 Chicago Pneumatic Rotor KF137284 Chicago Pneumatic Rotor

KF137284 Chicago Pneumatic Rotor

Price $35.35
KF137287 Chicago Pneumatic Ring-Retaining KF137287 Chicago Pneumatic Ring-Retaining

KF137287 Chicago Pneumatic Ring-Retaining

Price $5.41

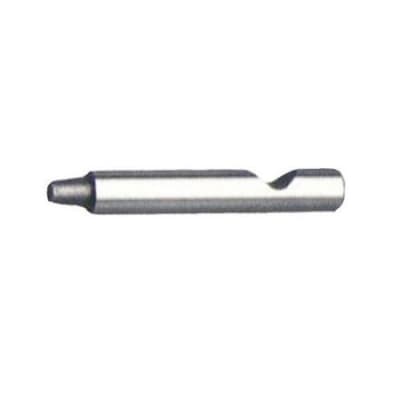

KF137310 Chicago Pneumatic Replacement Punch For CPt-835, 5 Pack KF137310 Chicago Pneumatic Replacement Punch For CPt-835, 5 Pack

KF137310 Chicago Pneumatic Replacement Punch For CPt-835, 5 Pack

Price $80.22
KF138243 Chicago Pneumatic Blade Set-Rotor 860 KF138243 Chicago Pneumatic Blade Set-Rotor 860

KF138243 Chicago Pneumatic Blade Set-Rotor 860

Discontinued See CA144889
KF139513 Chicago Pneumatic Housing-Cutter KF139513 Chicago Pneumatic Housing-Cutter

KF139513 Chicago Pneumatic Housing-Cutter

Price $66.37
KF139537 Chicago Pneumatic Housing-Motor KF139537 Chicago Pneumatic Housing-Motor

KF139537 Chicago Pneumatic Housing-Motor

Price $84.00
KF139540 Chicago Pneumatic End Plate-Front KF139540 Chicago Pneumatic End Plate-Front

KF139540 Chicago Pneumatic End Plate-Front

Price $42.73
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
P091352 Chicago Pneumatic Cap Screw P091352 Chicago Pneumatic Cap Screw

P091352 Chicago Pneumatic Cap Screw

Price $5.41
P092536 Chicago Pneumatic O-Ring In-020 P092536 Chicago Pneumatic O-Ring In-020

P092536 Chicago Pneumatic O-Ring In-020

Price $8.67
S000268 Chicago Pneumatic Lock Washer S000268 Chicago Pneumatic Lock Washer

S000268 Chicago Pneumatic Lock Washer

Price $3.47
S039709 Chicago Pneumatic Bearing-Ball S039709 Chicago Pneumatic Bearing-Ball

S039709 Chicago Pneumatic Bearing-Ball

Price $29.47
S083567 Chicago Pneumatic Bearing-Ball S083567 Chicago Pneumatic Bearing-Ball

S083567 Chicago Pneumatic Bearing-Ball

Price $39.84
