You are here: Home > Plasma Cutter Parts > 118-012 Solar 15 amp plasma cutter (120 v.) 2010

118-012 Solar 15 amp plasma cutter (120 v.) 2010

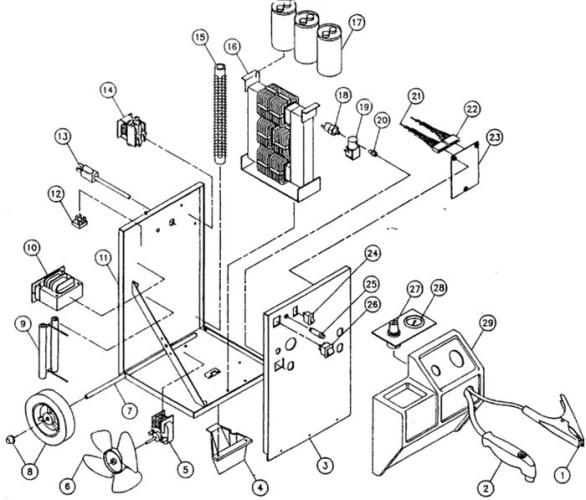

118-012 Replacement Parts List
Item No.
Part No.
Description
1
238-244-666
Ground Cable with Clamp

239-010-102
Clamp Only
2
238-240-100
Torch
3
410-590-036
Front Panel
4
312-067-666
Foot
5
216-087-166
Fan Motor
6
316-009-666
Fan Blade
7
413-045-666
Axle
8
413-046-666
Wheel and Hub
9
880-104-666
Resistor Assembly
10
880-106-888
Control Transformer
11
410-611-016
Base
12
244-078-666
Rectifier Kit
13
248-211-666
Power Cord
14
246-124-666
Contactor
15
245-105-666
2 Ohm, 420 Watt Resistor
16
880-109-888
Transformer
17
213-034-666
Capacitor
18
252-003-666
Pressure Switch
19
246-086-666
Gas Solenoid
20
253-069-666
Nylon Adaptor
21
880-031-666
9-Pin Wire Harness
22
880-103-666
10-Pin Wire Harness
23
880-102-666
Printed Circuit Board
24
246-178-666
Run / Setup Switch
25
245-109-666
Indicator Light
26
246-188-666
Power Switch
27
254-003-666
Plasma Regulator
28
251-003-666
Pressure Gauge
29
312-099-666
Nose
30
412-295-116
Handle
31
440-151-126
Cover
Sort By:
Page of 1
098-142-000 Synthetic Lubricant 1/4oz 4424
098-142-000 Synthetic Lubricant 1/4oz 4424
Price $19.18

Synthetic Lubricant for plasma torch O-rings
131-280-908 Century Torch Standoff Repl. 4416 / 44160
131-280-908 Century Torch Standoff Repl. 4416 / 44160
Price $53.85

Century / Solar Plasma Torch Stand-Off Kit keeps nozzle clear of dirt, paint and corrosion. Also simplifies cutting with straightedge or pattern. 131-280-908 TORCH STANDOFF Replaces 4416 / 44160.
238-240-100 Plasma Torch 20 Amp 15 Foot Hose
238-240-100 Plasma Torch 20 Amp 15 Foot Hose
Discontinued

Century 238-240-100 Plasma Torch 20 Amp with 15 Foot Hose. OEM Torch Head hose assembly includes hose, torch head, o-ring, swirl ring, electrode, nozzle, nozzle cap.
238-240-999 Plasma Torch Head For 238-240-100
238-240-999 Plasma Torch Head For 238-240-100
Discontinued See 238-240-100 Torch

238-240-999 TORCH HEAD FOR 238-240-100, 20 Amp, Used on 15-22 Amp models 118-008 (YA2230), 118-009 (82020, PSC20, 3W722), 118-010 (2020), 118-011 (YA2120), 118-012 (2010), 118-013 (5Z135, 82015).
238-244-666 Cable, Ground & Clamp Assembly
238-244-666 Cable, Ground & Clamp Assembly
Discontinued

238-244-666 Cable, Ground & Clamp Assembly
239-292-666 41007 Clamp, Ground
239-292-666 41007 Clamp, Ground
Price $21.11

239-292-666 41007 Clamp, Ground
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008.
246-086-666 Century Solenoid 24 Volt Air Service
Price $115.85

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008.
246-199-666 Pilot Arc Relay 24 Volt DC Coil
246-199-666 Pilot Arc Relay 24 Volt DC Coil
Price $69.95

246-199-666 Pilot Arc Relay 24 Volt DC Coil
252-003-666 Century Plasma Air Pressure Switch
252-003-666 Century Plasma Air Pressure Switch
Price $90.90

252-003-666 Century Plasma Air Pressure Switch
312-104-000 Plasma Torch Handle Assembly For 238-240-100
312-104-000 Plasma Torch Handle Assembly For 238-240-100
Price $53.83

Plasma Torch Handle Assembly, no hardware included. Molded handles only for 238-240-100
334-274-100 Trigger Assembly Replaces 334-281-100
334-274-100 Trigger Assembly Replaces 334-281-100
Price $34.10

334-274-100 Trigger Assembly Replaces 334-281-100
334-277-908 Electrode Plasma 15 20amp 5pkg Repl. 4420 44200
334-277-908 Electrode Plasma 15 20amp 5pkg Repl. 4420 44200
Price $21.65 5 Pack

Century / Solar Style Electrode. Plasma Cutting Electrodes initiate the high intensity cutting arc and provide the contact necessary for arc maintenance. Electrodes are subject to wear, causing arc to weaken or be intermittent.
334-277-908L Electrode Plasma Extended 15 20amp 5pkg
334-277-908L Electrode Plasma Extended 15 20amp 5pkg
Price $22.55 5 Pack

Century / Solar Style Electrode. Plasma Cutting Electrodes initiate the high intensity cutting arc and provide the contact necessary for arc maintenance. Electrodes are subject to wear, causing arc to weaken or be intermittent.
334-278-908 Swirl Ring Plasma 20 Amp Repl. 4422 44220
334-278-908 Swirl Ring Plasma 20 Amp Repl. 4422 44220
Price $24.45 Each

Century / Solar Style Plasma 40 Amp Swirl Ring. Swirl Ring imparts a swirling current to stabilize the arc. Keep your plasma cutter working at peak performance with these replacement parts.
334-279-908 Nozzle Plasma 15/20 Amp 5pk Repl. 4421 44210
334-279-908 Nozzle Plasma 15/20 Amp 5pk Repl. 4421 44210
Price $24.95 5 Pack

Century - Solar Style 15 / 20 Amp Plasma Cutting Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating (i.e. tapered, 15/20 amp).
334-279-908L Nozzle Plasma Extended 15/20 Amp 5pk
334-279-908L Nozzle Plasma Extended 15/20 Amp 5pk
Price $28.40 5 Pack

Century - Solar Style 15 / 20 Amp Plasma Cutting Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating (i.e. tapered, 15/20 amp).
334-280-908 Nozzle Cap Plasma 20 Amp Repl. 4423 44230
334-280-908 Nozzle Cap Plasma 20 Amp Repl. 4423 44230
Price $18.85 Each

Century / Solar Style Nozzle Cap, Tapered Type. Nozzle Caps direct cooling air flow to the nozzle and workpiece.
512-087-908 O-Rings 20/40 15 20 50 Amp 2 pack Repl. 4405 44050
512-087-908 O-Rings 20/40 15 20 50 Amp 2 pack Repl. 4405 44050
Price $3.32 2 Pack

Century / Solar Package of 2 O-Rings for 20/40, 15, 20 and 50 amp plasma cutters. The rubber O-Ring prevents air leaks which cause erratic cutting and cooling.

880-102-666 Century Printed Circuit Board
880-102-666 Century Printed Circuit Board
Price $269.55

Century Plasma Cutter Printed Circuit Board. Controls The Pilot Arc Relay, 24 Vdc Solenoid, Trigger, Pressure Switch, 24 Vac main contactor coil, 24 Vdc pilot relay coil.
Solar 2010 20 Amp Plasma Cutter Owners Guide Instruction Manual
Solar 2010 20 Amp Plasma Cutter Owners Guide Instruction Manual
Price $8.00

This Operators manual provides specific charger information for your specific model. This manual contains information such as the Important Safety Instructions, Usage and Maintenance of your Plasma Cutter. This document is provided as a download PDF format. We suggest you save it to your computer for future reference.
Model Coverage: 118-012, 2010
