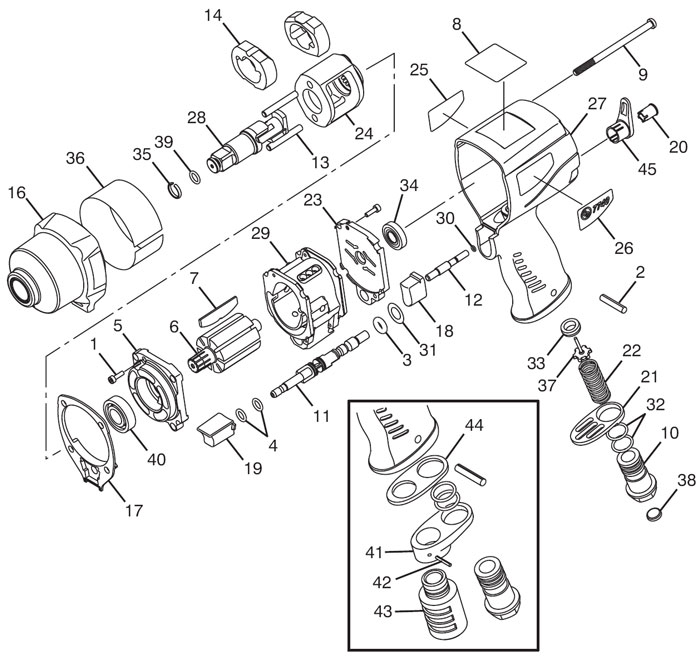

CP7740Q Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 6156161270 Hex Screw 4
2 6156371750 Pin Spring 1
3 6156582940 O-Ring 1
4 6156582950 O-Ring 2
5 8940158496 Front End Plate 1
6 8940158499 Rotor 1
7 8940162331 Blade - Rotor Set (8) 1
8 8940158512 Warning Label / Nameplate CP7740 1
- 8940158513 Warning Label / Nameplate CP7740-2 1
- 8940163027 Warning Label / Nameplate CP7740Q 1
- 8940163028 Warning Label / Nameplate CP7740Q-2 1
9 8940158514 Torx Screw 4
10 8940158515 Inlet Bushing 1
11 8940158520 Reverse Valve 1
12 8940158522 Trigger Pin 1
13 8940158523 Pin 2
14 8940158578 Dog 2
16 8940163036 Clutch Housing Assembly
(Incl Index No: 36)
1
17 8940162428 Gasket 1
18 8940162430 Trigger 1
19 8940162431 Reverse Button 1
20 8940162432 Forward Button 1
21 8940162433 Exhaust Deflector 1
22 8940162434 Valve Spring 1
23 8940162658 Rear End Plate 1
24 8940162822 Cage 1
25 8940162951 Right Decal CP7740 1
26 8940162952 Left Decal CP7740 1
27 8940163012 Handle Assembly
(Incl Index No: 45)
1
28 8940163013 1/2" Anvil Assembly
(Incl Index Nos: 35 & 39)
1
- 8940163014 1/2" External Anvil Assembly
(Incl Index Nos: 35 & 39)
1
29 8940163025 Liner 1
30 8940163077 O-Rng 1
31 8940163084 Washer 1
32 8940163166 O-Ring 2
33 8940163180 Valve Seat 1
34 C075878 Rear Bearing 1
35 CA088097 Ring - Socket Retainer 1
36 CA154960 Sleeve - Steel 1
37 CA158018 Valve 1
38 M155385 Screen - Air 1
39 P083071 O-Ring 1
40 S083790 Front Bearing 1
41 8940163029 Exhaust Quiet 1
42 2050261223 Pin Spring 1
43 8940163037 Silencer Kit 1
44 8940163126 Gasket 1
45 8940162429 Regulator Lever 1
Tune-Up Kit 8940162408 Incl Index Nos: 3, 4, 7, 17, 30, 32, 33, 35 & 39
Repair Kit 8940162410 (CP7740) Incl Index Nos: 7, 13, 14, 17, 28 & 33
Repair Kit 8940163047 (CP7740-2) Incl Index Nos: 7, 13, 14, 17, 28 (Ext Anvil) & 33
Muffler Kit 8940163038 Incl Index Nos: 42 & 43
Muffler Retro Fit Kit 8940163045 Incl Index Nos: 41, 42, 43 & 44
Tool Cover 8940163046 -
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
6156161270 Chicago Pneumatic Screw 6156161270 Chicago Pneumatic Screw

6156161270 Chicago Pneumatic Screw

Price $3.91
6156371750 Chicago Pneumatic Pin Spring 6156371750 Chicago Pneumatic Pin Spring

6156371750 Chicago Pneumatic Pin Spring

Discontinued
6156582940 Chicago Pneumatic O-Ring 6156582940 Chicago Pneumatic O-Ring

6156582940 Chicago Pneumatic O-Ring

Discontinued
6156582950 Chicago Pneumatic O-Ring 6156582950 Chicago Pneumatic O-Ring

6156582950 Chicago Pneumatic O-Ring

Discontinued
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940158496 Chicago Pneumatic Plate-Front End 8940158496 Chicago Pneumatic Plate-Front End

8940158496 Chicago Pneumatic Plate-Front End

Discontinued
8940158499 Chicago Pneumatic Rotor 8940158499 Chicago Pneumatic Rotor

8940158499 Chicago Pneumatic Rotor

Discontinued
8940158514 Chicago Pneumatic Torx Screw 8940158514 Chicago Pneumatic Torx Screw

8940158514 Chicago Pneumatic Torx Screw

Discontinued
8940158515 Chicago Pneumatic Inlet Bushing 8940158515 Chicago Pneumatic Inlet Bushing

8940158515 Chicago Pneumatic Inlet Bushing

Discontinued
8940158520 Chicago Pneumatic Reverse Valve 8940158520 Chicago Pneumatic Reverse Valve

8940158520 Chicago Pneumatic Reverse Valve

Discontinued
8940158522 Chicago Pneumatic Trigger Pin 8940158522 Chicago Pneumatic Trigger Pin

8940158522 Chicago Pneumatic Trigger Pin

Discontinued
8940158523 Chicago Pneumatic Pin Clutch 8940158523 Chicago Pneumatic Pin Clutch

8940158523 Chicago Pneumatic Pin Clutch

Discontinued
8940158578 Chicago Pneumatic Dog 8940158578 Chicago Pneumatic Dog

8940158578 Chicago Pneumatic Dog

Discontinued
8940162331 Chicago Pneumatic Blade-Rotor Set (8) 8940162331 Chicago Pneumatic Blade-Rotor Set (8)

8940162331 Chicago Pneumatic Blade-Rotor Set (8)

Price $22.11
8940162408 Chicago Pneumatic Tune Up Kit (Cp7740) 8940162408 Chicago Pneumatic Tune Up Kit (Cp7740)

8940162408 Chicago Pneumatic Tune Up Kit (Cp7740)

Discontinued
8940162410 Chicago Pneumatic Repair Kit (Cp7740) 8940162410 Chicago Pneumatic Repair Kit (Cp7740)

8940162410 Chicago Pneumatic Repair Kit (Cp7740)

Discontinued
8940162428 Chicago Pneumatic Gasket 8940162428 Chicago Pneumatic Gasket

8940162428 Chicago Pneumatic Gasket

Discontinued
8940162429 Chicago Pneumatic Lever-Regulator 8940162429 Chicago Pneumatic Lever-Regulator

8940162429 Chicago Pneumatic Lever-Regulator

Price $2.30
8940162430 Chicago Pneumatic Trigger 8940162430 Chicago Pneumatic Trigger

8940162430 Chicago Pneumatic Trigger

Discontinued
8940162431 Chicago Pneumatic Reverse Button 8940162431 Chicago Pneumatic Reverse Button

8940162431 Chicago Pneumatic Reverse Button

Discontinued
8940162432 Chicago Pneumatic Forward Button 8940162432 Chicago Pneumatic Forward Button

8940162432 Chicago Pneumatic Forward Button

Discontinued
8940162433 Chicago Pneumatic Exhaust Deflector 8940162433 Chicago Pneumatic Exhaust Deflector

8940162433 Chicago Pneumatic Exhaust Deflector

Discontinued
8940162434 Chicago Pneumatic Valve Spring 8940162434 Chicago Pneumatic Valve Spring

8940162434 Chicago Pneumatic Valve Spring

Discontinued
8940162658 Chicago Pneumatic Rear End Plate 8940162658 Chicago Pneumatic Rear End Plate

8940162658 Chicago Pneumatic Rear End Plate

Discontinued
8940162822 Chicago Pneumatic Cage 8940162822 Chicago Pneumatic Cage

8940162822 Chicago Pneumatic Cage

Discontinued
8940163012 Chicago Pneumatic Handle Assembly 8940163012 Chicago Pneumatic Handle Assembly

8940163012 Chicago Pneumatic Handle Assembly

Discontinued
8940163013 Chicago Pneumatic 1/2" Anvil Assy 8940163013 Chicago Pneumatic 1/2" Anvil Assy

8940163013 Chicago Pneumatic 1/2" Anvil Assy

Discontinued
8940163014 Chicago Pneumatic Anvil Assembly 1/2" (Extended) 8940163014 Chicago Pneumatic Anvil Assembly 1/2" (Extended)

8940163014 Chicago Pneumatic Anvil Assembly 1/2" (Extended)

Discontinued
8940163025 Chicago Pneumatic Liner 8940163025 Chicago Pneumatic Liner

8940163025 Chicago Pneumatic Liner

Discontinued
8940163036 Chicago Pneumatic Clutch Housing Assembly 8940163036 Chicago Pneumatic Clutch Housing Assembly

8940163036 Chicago Pneumatic Clutch Housing Assembly

Discontinued
8940163037 Chicago Pneumatic Silencer 8940163037 Chicago Pneumatic Silencer

8940163037 Chicago Pneumatic Silencer

Discontinued
8940163038 Chicago Pneumatic Muffler Kit 8940163038 Chicago Pneumatic Muffler Kit

8940163038 Chicago Pneumatic Muffler Kit

Discontinued
8940163047 Chicago Pneumatic Kit-Repair (Cp7740-2) 8940163047 Chicago Pneumatic Kit-Repair (Cp7740-2)

8940163047 Chicago Pneumatic Kit-Repair (Cp7740-2)

Discontinued
8940163077 Chicago Pneumatic O-Ring 8940163077 Chicago Pneumatic O-Ring

8940163077 Chicago Pneumatic O-Ring

Discontinued
8940163084 Chicago Pneumatic Washer 8940163084 Chicago Pneumatic Washer

8940163084 Chicago Pneumatic Washer

Discontinued
8940163126 Chicago Pneumatic Gasket 8940163126 Chicago Pneumatic Gasket

8940163126 Chicago Pneumatic Gasket

Discontinued
8940163166 Chicago Pneumatic O-Ring 8940163166 Chicago Pneumatic O-Ring

8940163166 Chicago Pneumatic O-Ring

Discontinued
8940163180 Chicago Pneumatic Valve Seat 8940163180 Chicago Pneumatic Valve Seat

8940163180 Chicago Pneumatic Valve Seat

Discontinued
C075878 Chicago Pneumatic Bearing-Ball C075878 Chicago Pneumatic Bearing-Ball

C075878 Chicago Pneumatic Bearing-Ball

Price $19.21
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA088097 Chicago Pneumatic Socket Retaining Ring 1/2" CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

Price $5.38
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA154960 Chicago Pneumatic Sleeve-Steel CA154960 Chicago Pneumatic Sleeve-Steel

CA154960 Chicago Pneumatic Sleeve-Steel

Price $14.21

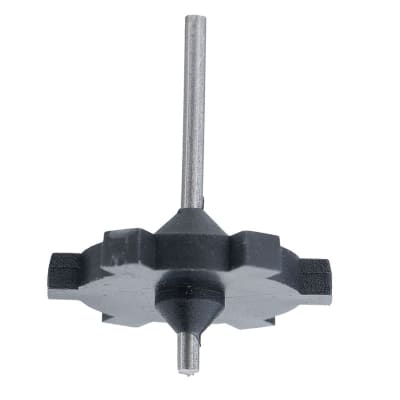

CA158018 Chicago Pneumatic Valve CA158018 Chicago Pneumatic Valve
