TY25863 (JD-200-30T) John Deere Battery Charger Parts List

Sort By:
Page of 1
0090026130 Schumacher Power Cord
0090026130 Schumacher 115 Volt Power Cord
Price $19.25

Power Cord 115 Volt 3 Prong. Termination Specs, 1/4" Quick Connect (Black), Ring Terminal (Ground), Split Terminal (White) with Strain Relief. more info
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers
Discontinued See 6094K89

This Knob is for selector switches on SE Series chargers only, there are separate knobs for selector switches and timers. Please check your part numbers carefully. more info
0099000094 Schumacher 135 Minute Timer Mechanical with Hold
0099000094 Schumacher 135 Minute Timer Mechanical with Hold
Discontinued See TJ1-120MHB

Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals. more info
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft
Discontinued See 6094K89

0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft, there are separate knobs for selector switches and timers. Please check your part numbers carefully. more info
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers
Price $4.62

This Knob is for timers on PS Series chargers only with a 1/2 Shaft, there are separate knobs for selector switches with a 3/4 shaft. Please check your part numbers carefully. more info
0099000270 Schumacher Knob For Selector Switches on PS Series Chargers
0099000270 Knob For Selector Switches on PS Series Chargers
Discontinued

This Knob is for selector switches with a 3/4 Shaft only, there are separate knobs for timers with a half shaft. Please check your part numbers carefully. more info
0499000022 Schumacher 6 Position Rotary Selector Switch
0499000022 Schumacher 6 Position Rotary Selector Switch (Old Style)
Discontinued

6 Position Rotary Selector Switch (5 Terminals). Older Units used this switch and can be identified by the difference in cabinet mounting, this switch uses a threaded collar with jam nut to mount to case.
more info
2299001127 Schumacher Heatsink Rectifier Assembly
2299001127 Schumacher Heatsink Rectifier Assembly
Discontinued

Heat Sink Rectifier. Two wire rectifier replaces older 4 wire and 2 stud rectifiers. more info
3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"
3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"
Discontinued

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 82" long with square strain relief on cable. more info
3899001968 Schumacher Output Cable And Clamp Black Negative 6 AWG 83"
3899001968 Schumacher Output Cable And Clamp Black Negative 6 AWG 83"
Discontinued

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 83" long with square strain relief on cable. more info
3899001969 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"
3899001969 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"
Discontinued

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 88" long with square strain relief on cable. more info
3999000107 Schumacher Circuit Breaker 32 Volt DC 90 Amp
3999000107 Schumacher Circuit Breaker 32 Volt DC 90 Amp
Discontinued

3999000107 Schumacher Circuit Breaker 32 Volt DC 90 Amp. When ordering, it may be necessary to purchase a pair of the 5199000406 screws if replacing and older circuit breaker for retrofit. more info
5100000005 Timer Screw M3 X 5.5
5100000005 Timer Screw M3 X 5.5
Price $0.05

5100000005 Screw M3 X 5.5 For Original Timer more info
5199000406 Schumacher Screw 1/4-28 x 0.375 (Circuit Breaker Connection Screw)
5199000406 Schumacher Screw 1/4-28 x 0.375
Price $0.18

5199000406 Schumacher Screw 1/4-28 x 0.375 (Circuit Breaker Connection Screw) more info
6094K89 Knob For Schumacher Battery Charger Selector Switches & Timers
6094K89 Knob For Battery Charger Selector Switches & Timers
Price $4.65

6094K89 Knob For Battery Charger Selector Switches & Timers. This Knob is for selector switches and timers, designed with 1/4" ID and a set screw for locking onto shaft. Suitable for all 1/4" shaft switches. Replaces Schumacher 0099000045 & 0099000096. more info

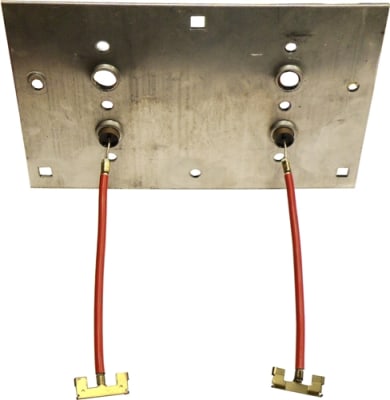

PT21009 John Deere Heatsink Rectifier Assembly
PT21009 John Deere Heatsink Rectifier Assembly
Discontinued

Heat Sink Rectifier, Dual Post Style Diode type. more info
S29420-24 Century Battery Charger Clamp Holder
S29420-24 Century Battery Charger Clamp Holder
Price $14.85

S29420-24 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round or flat bar battery charger handle. If using as a universal fit drilling two holes will be necessary. more info
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer
Price $38.95
On Back Order (60 Days Out)

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers. more info


*Variations of models due to production changes and parts availability are not our responsibility
*No refunds on electrical components
*Service should be performed only by a qualified technician
*Please read all supporting documentation and safety instructions
