9425 Associated Battery Charger Parts List

    MODEL  9425 REPAIR PARTS
    Diagram # Description Part Number
    1 Handle 610619
    2 Cabinet Top 610755
    3 Transformer 611169
    4 Circuit Board 610926
    5 Battery Type Switch 611000
    6 Cabinet Base 611315
    7 AC Cord 610928
    8 DC Cables Set 610886
    9 Momentary Switch 611316

    MAINTENANCE INSTRUCTIONS
    Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of D.C.
    Cord kit. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman.
    Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
    Sort By:
    Page of 1
    610619 Associated Battery Charger Handle
    610619 Associated Battery Charger Handle
    Price $16.52

    610619 Associated Battery Charger Handle more info
    610886 Associated DC Cable Set With Clamps
    610886 Associated DC Cable Set With Clamps
    Price $105.50

    Associated DC Cable Set more info

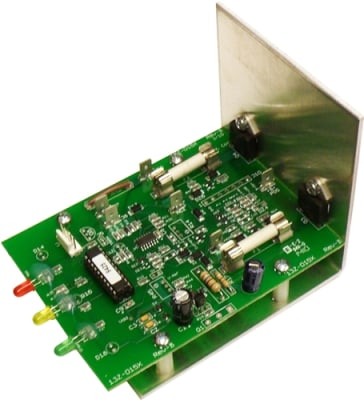

    610926 Associated PC Board Assembly
    610926 Associated PC Board Assembly
    Price $221.20

    Associated PC Board Assembly. For new style units only. Your unit must have connections matching this board to work properly. Identify your new style unit by the momentary mode switch on the front of the unit. more info
    610928 Associated 7ft 115 Volt AC Power Cord
    610928 Associated 7ft 115 Volt AC Power Cord
    Price $54.96

    610928 Associated 7ft 115 Volt AC Power Cord more info
    611000 Associated Switch
    611000 Associated Switch
    Price $15.47

    SWITCH more info
    611169 Associated Transformer 9425
    611169 Associated Transformer 9425
    Price $266.65

    611169 Associated Transformer 9425 more info
    9425 Associated 20 Amp 12 Volt Automotive Battery Charger With Intellamatic III
    9425 Associated 20 Amp 12 Volt Automotive Battery Charger With Intellamatic III
    Price $319.95

    Made in the USAThis automotive charging system can perform the function of a battery charger, trickle charger, and a battery tender (can be left connected to battery to maintain charge) as well as "DEEP DISCHARGE RECOVERY" and best of all it's Made in America. more info
