You are here: Home > Chicago Pneumatic Air Impact Wrench Repair Parts > Chicago Pneumatic 1" Drive Impact Wrenches > Chicago Pneumatic CP6060ZASAK Impact Wrench Repair Parts

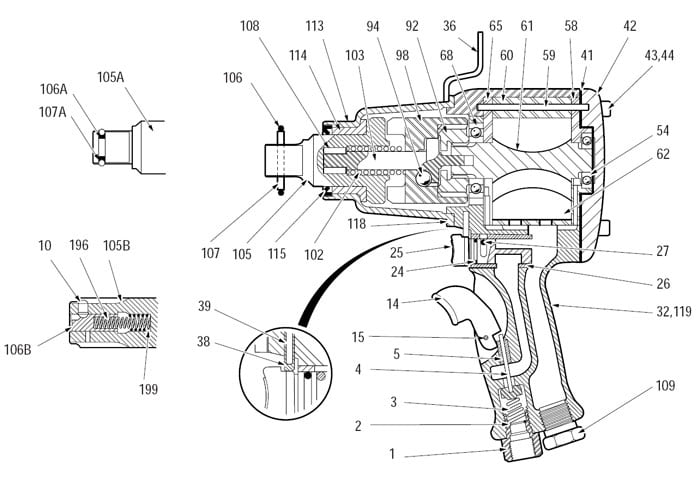

Chicago Pneumatic CP6060ZASAK Impact Wrench Repair Parts



Index
No.
Part No. Description No.
Req'd
1
CA129654
Bushing - air inlet (incl 2)
1
2
C036000
Strainer - air
1
3
CA129677
Spring - throttle valve 1
4
KF129106
Valve - throttle
1
5
C144629
Stem - throttle valve 1
9
C145930
Bushing - throttle valve
1
14
C087934
Trigger - throttle
1
15
P043882
Pin - trigger
1
24
P092537
O-Ring reverse valve
1
25
C130913
Valve - reverse
1
26
C130908
Bushing - reverse valve
1
27
C132130
Pin - valve retainer
1
32
C130907
Housing - motor (Aluminium) (incl 9, 26) 1
32
C138254
Housing - motor (Zinc) (incl 9, 26)
1
36
C130920
Ball - horizontal
1
38
C134460
Pin - reverse valve stop
1
39
CA099902
Spring - valve stop  pin
1
41
C130911
Gasket - housing cover
1
42
C130979
Cover - housing (Aluminium) 1
42
C138255
Cover - housing (Zinc)
1
43
C127944
Screw - metric cap (M6 x 20 mm)
8
44
CA129679
Lockwasher (M6)
8
54
C068659
Bearing - ball
1
58
CA129651
Plate - upper end
1
59
C105683
Pin - dowel
1
60
CA129649
Liner
1
61
CA129648
Rotor (15T)
1
62
CA129653
Blade - rotor
6
65
C130906
Plate - lower end
1
68
C063836
Bearing - ball
1
92
CA129647
Coupling
1
94
C011086
Ball - steel (3/8" dia)
1
98
CA129645
Dog - clutch
1
102
CA129644
Spring - clutch
1
103
CA144724
Shaft - timing
1
105
C144729
Anvil - (3/4" square drive) 1
105
CA144726
Anvil - (1" square drive)
1
105A
CA144725
Anvil - (3/4" sq. drive friction retainer)
(incl 106A, 107A)
1
105B
C145296
Anvil - (#4 spline) (incl 106B, 107B, 196, 199) 1
106
C089759
O-Ring pin retainer (3/4" square drive) 1
106
C089760
O-Ring pin retainer (1" square drive)
1
106A
CA083354
O-Ring (-011)
1
106B
C054199
Plunger
1
107
C069046
Pin - socket retainer (3/4" square drive) 1
107
C066201
Pin - socket retainer (1" square drive)
1
107A
CA087404
Ring - snap
1
107B
C054198
Button - spline lock
1
108
P001915
Pin - timing shaft
1
109
C130921
Diffuser - exhaust (1/2" NPT)
1
113
C130973
Housing - clutch (incl 114, 115)
1
114
CA129643
Bushing - clutch
1
115
CA129676
Seal - oil
1
118
C130933
Gasket - clutch housing
1
119
CA144007
Decal - safety warning
1
196
C054201
Spring - inner
1
199
C054200
Spring - outer
1
Sort By:
C011086 Chicago Pneumatic Ball-Steel .375"Dia C011086 Chicago Pneumatic Ball-Steel .375"Dia

C011086 Chicago Pneumatic Ball-Steel .375"Dia

Discontinued
C036000 Chicago Pneumatic Screen C036000 Chicago Pneumatic Screen

C036000 Chicago Pneumatic Screen

Price $3.90
C054198 Chicago Pneumatic Button-Spline Lock C054198 Chicago Pneumatic Button-Spline Lock

C054198 Chicago Pneumatic Button-Spline Lock

Discontinued
C054199 Chicago Pneumatic Lock Plunger C054199 Chicago Pneumatic Lock Plunger

C054199 Chicago Pneumatic Lock Plunger

Discontinued
C054200 Chicago Pneumatic Lock Spring C054200 Chicago Pneumatic Lock Spring

C054200 Chicago Pneumatic Lock Spring

Price $11.04
C054201 Chicago Pneumatic Lock Spring C054201 Chicago Pneumatic Lock Spring

C054201 Chicago Pneumatic Lock Spring

Price $11.04
C063836 Chicago Pneumatic Bearing-Ball C063836 Chicago Pneumatic Bearing-Ball

C063836 Chicago Pneumatic Bearing-Ball

Price $19.34
C066201 Chicago Pneumatic Pin-Retainer C066201 Chicago Pneumatic Pin-Retainer

C066201 Chicago Pneumatic Pin-Retainer

Discontinued
C068659 Chicago Pneumatic Bearing-Ball C068659 Chicago Pneumatic Bearing-Ball

C068659 Chicago Pneumatic Bearing-Ball

Price $23.64
C069046 Chicago Pneumatic Pin-Socket Ret C069046 Chicago Pneumatic Pin-Socket Ret

C069046 Chicago Pneumatic Pin-Socket Ret

Price $7.16
C087934 Chicago Pneumatic Trigger C087934 Chicago Pneumatic Trigger

C087934 Chicago Pneumatic Trigger

Price $26.83
C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.) C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.)

C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.)

Price $1.85
C089760 Chicago Pneumatic O-Ring-327 C089760 Chicago Pneumatic O-Ring-327

C089760 Chicago Pneumatic O-Ring-327

Price $5.53
C105683 Chicago Pneumatic Dowel Pin C105683 Chicago Pneumatic Dowel Pin

C105683 Chicago Pneumatic Dowel Pin

Discontinued
C127944 Chicago Pneumatic Screw-Soc Hd Cap C127944 Chicago Pneumatic Screw-Soc Hd Cap

C127944 Chicago Pneumatic Screw-Soc Hd Cap

Discontinued
C130906 Chicago Pneumatic Plate-Lower End C130906 Chicago Pneumatic Plate-Lower End

C130906 Chicago Pneumatic Plate-Lower End

Discontinued
C130907 Chicago Pneumatic Housing-Motor C130907 Chicago Pneumatic Housing-Motor

C130907 Chicago Pneumatic Housing-Motor

Price $514.64
C130908 Chicago Pneumatic Bushing-Valve C130908 Chicago Pneumatic Bushing-Valve

C130908 Chicago Pneumatic Bushing-Valve

Discontinued
C130911 Chicago Pneumatic Gasket-Housing C130911 Chicago Pneumatic Gasket-Housing

C130911 Chicago Pneumatic Gasket-Housing

Price $11.78
C130913 Chicago Pneumatic Valve-Reverse C130913 Chicago Pneumatic Valve-Reverse

C130913 Chicago Pneumatic Valve-Reverse

Price $91.40
C130921 Chicago Pneumatic Diffuser-Exhaust C130921 Chicago Pneumatic Diffuser-Exhaust

C130921 Chicago Pneumatic Diffuser-Exhaust

Price $45.74
C130933 Chicago Pneumatic Gasket-Clutch Hsg C130933 Chicago Pneumatic Gasket-Clutch Hsg

C130933 Chicago Pneumatic Gasket-Clutch Hsg

Price $6.80
C130973 Chicago Pneumatic Housing-Clutch C130973 Chicago Pneumatic Housing-Clutch

C130973 Chicago Pneumatic Housing-Clutch

Discontinued
C130979 Chicago Pneumatic Cover-Housing C130979 Chicago Pneumatic Cover-Housing

C130979 Chicago Pneumatic Cover-Housing

Price $222.64
C132130 Chicago Pneumatic Pin-Dowel C132130 Chicago Pneumatic Pin-Dowel

C132130 Chicago Pneumatic Pin-Dowel

Price $10.13
C134460 Chicago Pneumatic Pin-Stop Rev Valve C134460 Chicago Pneumatic Pin-Stop Rev Valve

C134460 Chicago Pneumatic Pin-Stop Rev Valve

Price $11.07
C138254 Chicago Pneumatic Ufzn Housing Motor C138254 Chicago Pneumatic Ufzn Housing Motor

C138254 Chicago Pneumatic Ufzn Housing Motor

Discontinued
C138255 Chicago Pneumatic Ufzn Cover-Housing C138255 Chicago Pneumatic Ufzn Cover-Housing

C138255 Chicago Pneumatic Ufzn Cover-Housing

Discontinued
C144629 Chicago Pneumatic Stem-Throttle Valve C144629 Chicago Pneumatic Stem-Throttle Valve

C144629 Chicago Pneumatic Stem-Throttle Valve

Discontinued
C144729 Chicago Pneumatic Anvil-.75 Sq Dr C144729 Chicago Pneumatic Anvil-.75 Sq Dr

C144729 Chicago Pneumatic Anvil-.75 Sq Dr

Price $297.95
C145930 Chicago Pneumatic Sleeve-Throttle C145930 Chicago Pneumatic Sleeve-Throttle

C145930 Chicago Pneumatic Sleeve-Throttle

Discontinued
CA083354 Chicago Pneumatic O-Ring In-111 CA083354 Chicago Pneumatic O-Ring In-111

CA083354 Chicago Pneumatic O-Ring In-111

Price $3.44
CA087404 Chicago Pneumatic Socket Retainer 3/4" CA087404 Chicago Pneumatic Socket Retainer 3/4"

CA087404 Chicago Pneumatic Socket Retainer 3/4"

Price $7.59
CA099902 Chicago Pneumatic Spring CA099902 Chicago Pneumatic Spring

CA099902 Chicago Pneumatic Spring

Discontinued See KF129072
CA129643 Chicago Pneumatic Bushing-Clutch CA129643 Chicago Pneumatic Bushing-Clutch

CA129643 Chicago Pneumatic Bushing-Clutch

Discontinued
CA129644 Chicago Pneumatic Spring-Compression CA129644 Chicago Pneumatic Spring-Compression

CA129644 Chicago Pneumatic Spring-Compression

Price $8.85
CA129645 Chicago Pneumatic Dog CA129645 Chicago Pneumatic Dog

CA129645 Chicago Pneumatic Dog

Price $335.41
CA129647 Chicago Pneumatic Coupling CA129647 Chicago Pneumatic Coupling

CA129647 Chicago Pneumatic Coupling

Price $149.24
CA129648 Chicago Pneumatic Rotor CA129648 Chicago Pneumatic Rotor

CA129648 Chicago Pneumatic Rotor

Price $331.25
CA129649 Chicago Pneumatic Liner-Auto CA129649 Chicago Pneumatic Liner-Auto

CA129649 Chicago Pneumatic Liner-Auto

Price $356.11
CA129651 Chicago Pneumatic Plate-Upper End CA129651 Chicago Pneumatic Plate-Upper End

CA129651 Chicago Pneumatic Plate-Upper End

Discontinued
CA129654 Chicago Pneumatic Bushing Assy CA129654 Chicago Pneumatic Bushing Assy

CA129654 Chicago Pneumatic Bushing Assy

Price $60.12
CA129676 Chicago Pneumatic Seal-Oil CA129676 Chicago Pneumatic Seal-Oil

CA129676 Chicago Pneumatic Seal-Oil

Price $8.65
CA129677 Chicago Pneumatic Spring-Compression CA129677 Chicago Pneumatic Spring-Compression

CA129677 Chicago Pneumatic Spring-Compression

Discontinued
CA129679 Chicago Pneumatic Lockwasher-6mm CA129679 Chicago Pneumatic Lockwasher-6mm

CA129679 Chicago Pneumatic Lockwasher-6mm

Price $3.45
CA144007 Chicago Pneumatic Decal-Safety Warning CA144007 Chicago Pneumatic Decal-Safety Warning

CA144007 Chicago Pneumatic Decal-Safety Warning

Price $3.44
CA144724 Chicago Pneumatic Shaft-Timing CA144724 Chicago Pneumatic Shaft-Timing

CA144724 Chicago Pneumatic Shaft-Timing

Discontinued
CA144725 Chicago Pneumatic Anvil-.75 Sq Dr CA144725 Chicago Pneumatic Anvil-.75 Sq Dr

CA144725 Chicago Pneumatic Anvil-.75 Sq Dr

Price $302.81
CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr

CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr

Price $352.54
KF129072 Chicago Pneumatic Spring KF129072 Chicago Pneumatic Spring

KF129072 Chicago Pneumatic Spring

Discontinued
KF129106 Chicago Pneumatic Pad Valve-Throttle KF129106 Chicago Pneumatic Pad Valve-Throttle

KF129106 Chicago Pneumatic Valve-Throttle

Price $16.10
P001915 Chicago Pneumatic Pin P001915 Chicago Pneumatic Pin

P001915 Chicago Pneumatic Pin

Discontinued
P043882 Chicago Pneumatic Dowel Pin P043882 Chicago Pneumatic Dowel Pin

P043882 Chicago Pneumatic Dowel Pin

Discontinued
