  • Recovers all commonly used CFC, HFC, HCFC Refrigerants (including Puron™ R-410A)
  • Proprietary “Oil-less” compressor capable of handling both liquid and vapor
  • Ergonomic design for easier handling
  • Tough corrosion proof polyethylene blow molded case
  • Field serviceable semi-hermetic compressor
  • Self purge feature
  • Includes Filter-Drier
  • 550 psi safety cut off switch
  • Power Source – 115 V 60 Hz

PROMAX RG3 Parts Breakdown
Item
 		Description
 		Part No.
1
 Plastic Case (both sides)
 -
2
 Interface Kit (motor-compressor interface, coupler, hardware)
 SK-3001
3
 Axial Fan
 SK-3003
4
 Motor Kit (motor, capacitor, hardware)
 SK-3004
5
 Compressor
 565504
6
 Condenser
 SK-3006
7
 Gauge Lens (1 ea.)
 565502
8
 Motor Capacitor
 565617
9
 Low-side Gauge Kit (low-side gauge, lens)
 SK-3007
10
 High-side Gauge Kit (high-side gauge, lens)
 SK-3008
11
 High-side Manifold Kit
 SK-3005
12
 Front Bezel
 565501
13
 Inlet Fitting / Filter Screen Kit (inlet fitting, filter screen, o-ring)
 SK-6001
14
 Fuse
 565500
15
 Grommet
 550503
16
 Motor Clamp Kit (4 pieces)
 SK-3009
17
 Foot (1 ea.)
 550502
18
 Inlet Tube
 565616
19
 Power Cord
 551628
20
 Power Switch
 EL1310
21
 Low-side Manifold Kit
 SK-3010
22
 Pressure Switch
 EL2802
N/S
 Inlet Hose 4"
 100345
N/S
 Inlet Filter
 100343
Replacement Kits and Accessories
Part No. Description
SK-3011
 Compressor Rebuild Kit (piston seals, valves, springs, o-rings)
SK-6007 Valve Rebuild / Replacement Kit (inlet / outlet valves, springs, o-rings)
Sort By:
Page of 1
100123 PROMAX Provax Blue Knob 100123 PROMAX Provax Blue Knob

100123 PROMAX Provax Blue Knob

Price $14.75
100124 PROMAX Provax Red Knob 100124 PROMAX Provax Red Knob

100124 PROMAX Provax Red Knob

Price $14.75
100343 PROMAX Filter 1/4 Male Flare 100343 PROMAX Filter 1/4 Male Flare

1/4" Flare Filter for ProMax and MiniMax Units Designed to protect recovery systems from debris and deposits that would normally harm your unit. Large filter capacity provides long life. All steel construction with enamel finish resists corrosion and rusting.

Price $21.60
100345 PROMAX Hose, Blue, 4" Long 100345 PROMAX Hose, Blue, 4" Long

100345 PROMAX Hose, Blue, 4" Long

Price $17.79
17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank 17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank

50lb. R-12 / Universal Gas Refillable Refrigerant Tank. Red Vapor Blue Liquid Ported Valve. 50 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings

Price $263.67
550503 PROMAX RG6000 Grommet 550503 PROMAX RG6000 Grommet

RG6000 Grommet

Price $9.53
551628 PROMAX Power Cord 115 Volt 14 Gauge 551628 PROMAX Power Cord 115 Volt 14 Gauge

551628 PROMAX Power Cord 115 Volt 14 Gauge

Price $28.52
565501 Promax Front Bezel 565501 Promax Front Bezel

565501 Promax Front Bezel

Price $12.43
565502 Promax Gauge Lens 2.25" 565502 Promax Gauge Lens 2.25"

565502 Promax Gauge Lens 2.25"

Price $4.72
565616 Promax Inlet Copper Tube 565616 PROMAX Inlet Copper Tube

565616 Promax Inlet Copper Tube

Price $21.42
CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug

CRXTOSP1 Tank Overfill Protection Cable Shorting Plug allows the user to override the tank float safety device on most recovery units using a 3 pin brad Harrison cable. Screws in place at the cable end allowing the unit to start. (Always use a scale for accuracy when using this device) 30 & 50 pound tanks should never be filled to a level beyond 80% of tank capacity.

Price $52.83
FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel) FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel)

FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel). Allows for use of common Filter Drier. Includes: 100343 Filter Drier, 100345 Blue 4" Hose, Flare Adapter Fitting, 1/4 seal cap with retaining strap.

Price $50.03
RG3 PROMAX Cube Refrigerant Recovery Machine 115 Volt RG3 PROMAX Cube Refrigerant Recovery Machine 115 Volt

The RG3 from Promax sets the new standard in refrigerant recovery. All jobs are different. From a rooftop to a marine HVAC system, the Cube is easy to use and ideal for any residential and appliance sized recovery job. Capable of recovering both liquid and vapor refrigerant, the Cube is engineered to withstand the punishment of daily use even under extreme conditions. This season get the Cube and keep it cool all season long. Designed for recovery of medium and high-pressure refrigerants, including R-410A (Puron)

Published Recovery Rates
Direct Liquid - 6.32 lb/min Direct Vapor - 0.20 lb/min Push/Pull - 11.76 lb/min

Price $699.00

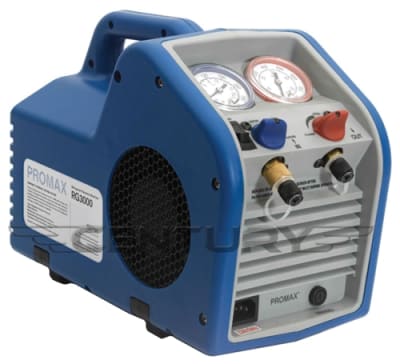

RG3000 PROMAX Cube Refrigerant Recovery Machine RG3000 PROMAX Cube Refrigerant Recovery Machine

The Cube from Promax sets the new standard in refrigerant recovery. All jobs are different. From a rooftop to a marine HVAC system, the Cube is easy to use and ideal for any residential and appliance sized recovery job. Capable of recovering both liquid and vapor refrigerant, the Cube is engineered to withstand the punishment of daily use even under extreme conditions. This season get the Cube and keep it cool all season long. Designed for recovery of medium and high-pressure refrigerants, including R-410A (Puron)

Published Recovery Rates
Direct Liquid - 3.02 lb/min Direct Vapor - 0.20 lb/min Push/Pull - 9.09 lb/min
Discontinued See RG3
SK-3003 Promax 115 Volt Axial Fan SK-3003 PROMAX 115 Volt Axial Fan

SK-3003 Promax 115 Volt Axial Fan

Price $43.19
SK-3005 Promax High-side Manifold Kit SK-3005 PROMAX High-side Manifold Kit

SK-3005 Promax High-side Manifold Kit

Price $179.39
SK-3011 PROMAX Compressor Rebuild Kit SK-3011 PROMAX Compressor Rebuild Kit

Compressor Rebuild Kit (piston seals, valves, springs, o-rings)

Price $85.66
SK-6001 PROMAX RG6000 Inlet Fitting / Filter Screen Kit (includes inlet fitting, filter screen, o-ring) SK-6001 PROMAX RG6000 Inlet Fitting & Filter Screen Kit

RG6000 Inlet Fitting / Filter Screen Kit (includes inlet fitting, filter screen, o-ring)

Price $31.11
SK-6002 PROMAX RG6000 Filter Drier Kit (Includes Filter Drier, 6 Inch Hose) SK-6002 PROMAX RG6000 Filter Drier Kit

RG6000 Filter Drier Kit (Includes Filter Drier, 6 Inch Hose)

Price $44.72
SK-6007 PROMAX RG6000 Inlet Outlet Valve Rebuild Kit (Includes Inlet / Outlet Valves and Springs, O-rings) SK-6007 PROMAX RG6000 Inlet Outlet Valve Rebuild Kit

SK-6007 PROMAX RG6000 / RG3000 Valve Rebuild Kit (Includes Inlet /
Outlet Valves and Springs, O-rings). Includes parts for two cylinders.

Price $39.50
