You are here: Home > Welder Parts - MIG > 117-045 2114 Solar 75 amp tote MIG 2 welder

117-045 2114 Solar 75 amp tote MIG 2 welder

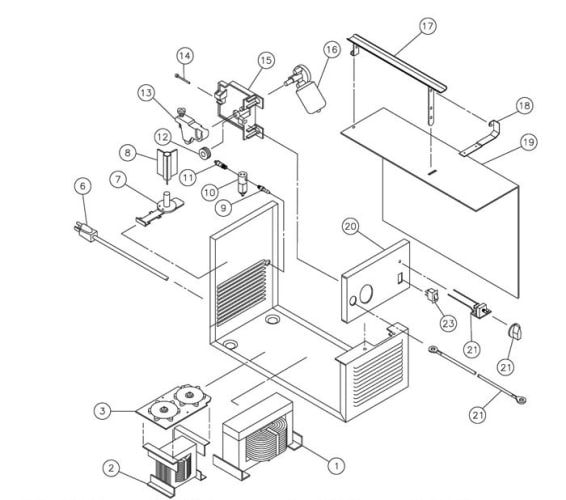

117-045 Replacement Parts List
Item No.
Part No.
Description
1
880-011-888
Transformer Assembly
2
880-010-888
Reactor Assembly
3
860-905-666
Rectifier Assembly
6
248-185-666
Power Cord
7
312-076-666
Wire Spindle
8
312-087-666
Spindle Adaptor
9
253-018-666
Fitting
10
246-212-666
Solenoid
11
253-038-666
Fitting
12
4323
Drive Roller 0.024 / 0.030 / 0.035

4347
Drive Roller 0.045 Serrated
13
880-089-666
Drive Tensioner Assembly
14
239-123-666
Inlet Guide Tube
15
312-103-666
Drive Base with Nut
16
216-079-666
Drive Motor
17
880-012-010
Handle Weld Assembly
18
412-278-010
Hood Hinge
19
410-586-010
Right Side Panel
20
410-623-040
Front Panel
21
880-094-666
Speed Control Assembly
22
246-041-666
Control Knob
23
246-177-666
Switch
24
238-223-666
Cable Assembly
25
410-557-030
Left Side Panel (Not Shown)
26
410-575-010
Hood (Not Shown)
27
218-942-666
Polarity Jumper (Not Shown)
28
412-280-666
Gun Connector (Not Shown)
29
238-224-100
Mig Gun 8" (Not Shown)
30
334-285-666
Regulator (Not Shown)
31
4213
Helmet (Not Shown)
Sort By:
071-014-908 Century Drive Roller Key Set 071-014-908 Century Drive Roller Key Set

Century Drive Roller Key Set. For use with Mig welders made by Century Mfg Co. Set includes both flat stock and woodruf keys for most welders, use when buying a new drive roller. Some older units had the key made into the drive roller, the new style drives rollers are slotted and require a woodruf key to lock them to the shaft.

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112) 131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112)

131-311-908 Gas conversion Kit (2112) Mig Gas Regulator & Hose Kit for Mig Welders. Includes adjustable regulator, 4' Gas hose and clamps, fittings for hose and welder. 0-30 CFH 2 Stage Gas regulator.

Price $149.95
Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320 238-155-000 Gun, Mig 130 Amp 10 Ft

Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320

Discontinued
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8 brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Price $89.50
246-041-666 Universal Selector Knob 246-041-666 Universal Selector Knob

246-041-666 Universal Selector Knob with set screw for controls with 1/4" Stem. Replaces all knobs with 1/4" diameter shaft. Fits 1/2 shaft and 3/4 style shaft stems.

Price $7.65
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008. 246-086-666 Century Solenoid 24 Volt Air Service

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008, B7161370.

Price $119.85
246-177-666 Switch 3 Position Rocker SPDT On-Off-On 246-177-666 Switch 3 Position Rocker SPDT On-Off-On

246-177-666 Switch 3 Position Rocker SPDT On-Off-On 16 amp 1/4 spade terminals.

Price $13.58
246-212-666 Century Solenoid 24 Volt Air Service 246-212-666 Century Solenoid 24 Volt Air Service

246-212-666 Century Solenoid 24 Volt Air Service

Discontinued See 246-086-666
310-122-500 Century Steel Drive Roller .024 .030 .035 4323 310-122-500 Century Steel Drive Roller .024 .030 .035 4323

Century Drive Roller .024 .030 .035 in Part number 4323. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Price $23.70
312-045-666 Receptacle Assembly 312-045-666 Receptacle Assembly

312-045-666 Front Panel Female Receptacle Kit for many Century made welders. For matching male plugs see part # 239-052-908. Replaces part # 312-028-100.

Price $74.50
312-076-666 Spindle Arm for Century / Lincoln Welders 312-076-666 Spindle Arm for Century / Lincoln Welders

312-076-666 Spindle Arm for Century / Lincoln Welders. See part # 131-419-000 for spindle tension kit or the 312-110-666 spool adapter to fit a 8" spool of wire to the same spindle.

Discontinued See 9SS31898-1
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $16.54
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $56.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
334-228-000 Diffuser, Gas Mig Gun Large Id 334-228-000 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Price $40.33
334-285-666 Regulator, Gas 7-20 Cfh 334-285-666 Regulator, Gas 7-20 Cfh

Regulator, Gas 7-20 Cfh. Discontinued See KH738, When using the hose from the KH738, simply cut one end off the hose to attach to the barb fitting on the unit.

Discontinued See KH738
860-616-908 Century Composite Aluminum Drive Roller 43240 860-616-908 Century Composite Aluminum Drive Roller 43240

860-616-908 Century Composite Aluminum Drive Roller 43240. (860-908-002) For use with soft welding wire in all Mig welders made by Century Mfg Co.

Price $42.50
860-905-666 Rectifier 860-905-666 Rectifier

860-905-666 Rectifier

Price $138.30
880-094-666 Wire Speed PCB With Potentiometer And 2 Wires 880-094-666 Wire Speed PCB With Potentiometer And 2 Wires

880-094-666 Wire Speed PCB With Potentiometer And 2 Wires

Price $138.53
880-130-666 Drive Deck 880-130-666 Drive Deck with Arm

880-130-666 Drive Deck

Price $170.36
9SS31898-1 Lincoln Wire Spindle Kit 9SS31898-1 Lincoln Wire Spindle Kit

Wire Spindle Kit S25351-7KIT, 9SS31898-1. Spindle Kit for Lincoln Electric Handy MIG, Handy Core, Weld-Pak HD, Quick Weld, Century 80, FC-90 & others. 9SS31898-1. 9SS31898-1 is the same as S25351-7 kit. Replaces Obsolete Part Number 312-076-666. Spindle Arm for Century made Welders.

Price $23.95
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack) KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack)

KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack). Same as KP11-30, KP2039-2B1, M15523, Mig030.  Replaces Century and Marquette Part Numbers: 4310, 43100, 334-160-000, M15523, KP11-30 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH712 Lincoln .035" Tweco Style Mig Contact Tip (10 Pack)

KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. Replaces Century and Marquette Part Numbers: 4311, 43110, 334-161-000, M15524, KP11-35 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Price $15.75
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KP11-45 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KP11-45 Lincoln .045" Tweco Style Mig Contact Tip (Sold Each) Replaces KH713, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Price $7.50
KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel

Mig Gun Liner .035 - .045 15Ft, For most Century Solar and small Lincoln welders. Replaces KP1937-1, 4331, 334-229, 334-373 Steel Liners. For Aluminum See KP1959-1 (4325, 334-230, 334-374) - Teflon Liner.

Price $25.56
