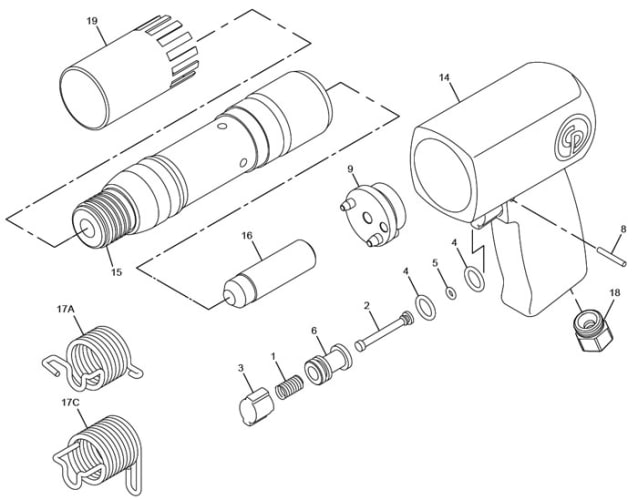

CP7150 Air Hammer Repair Parts


Index # Part No. Description Qty
1 2050487333 Spring-Valve 1
2 2050487433 Throttle Valve Assembly 1
3 2050487443 Button-Throttle 1
4 2050487453 O-Ring 2
5 2050487463 O-Ring 1
6 2050487473 Bushing-Valve 1
8 2050487483 Pin-Grooved 1
9 2050498953 Valve Assembly 1
14 2050487383 Handle 1
15 2050487393 Cylinder CP7150 1
16 2050487403 Piston 1
17A 2050487413 Quick Change Spring 1
17C 2050525333 Zip Change Spring 1
18 8940170877 Air Inlet 1
19 2050487423 Deflector 1

2050470173 Warning Label 1




Tune-Up Kit for CP7150:

2050506823 (Incl.Index Nos. 4, 5, 9)
Recommended Accessories:

8951011958 Quick Change Spring (Index No. 17A)
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
2050487333 Chicago Pneumatic Spring - Valve 2050487333 Chicago Pneumatic Spring - Valve

2050487333 Chicago Pneumatic Spring - Valve

Price $5.34
2050487383 Chicago Pneumatic Handle 2050487383 Chicago Pneumatic Handle

2050487383 Chicago Pneumatic Handle

Price $106.13
2050487393 Chicago Pneumatic Overall Length   8 7 2050487393 Chicago Pneumatic Overall Length 8 7

2050487393 Chicago Pneumatic Overall Length   8 7

Price $163.65
2050487403 Chicago Pneumatic Piston 2050487403 Chicago Pneumatic Piston

2050487403 Chicago Pneumatic Piston

Price $19.18
2050487413 Chicago Pneumatic Retainer - Quick Change 2050487413 Chicago Pneumatic Retainer - Quick Change

2050487413 Chicago Pneumatic Retainer - Quick Change

Discontinued See 8951011958
2050487423 Chicago Pneumatic Deflector 2050487423 Chicago Pneumatic Deflector

2050487423 Chicago Pneumatic Deflector

Price $8.63
2050487433 Chicago Pneumatic Throttle Valve Ass'y 2050487433 Chicago Pneumatic Throttle Valve Ass'y

2050487433 Chicago Pneumatic Throttle Valve Ass'y

Price $11.07
2050487443 Chicago Pneumatic Buttom - Throttle 2050487443 Chicago Pneumatic Buttom - Throttle

2050487443 Chicago Pneumatic Buttom - Throttle

Price $7.16
2050487453 Chicago Pneumatic O Ring (P12) 2050487453 Chicago Pneumatic O Ring (P12)

2050487453 Chicago Pneumatic O Ring (P12)

Price $7.16
2050487463 Chicago Pneumatic O Ring (P5) 2050487463 Chicago Pneumatic O Ring (P5)

2050487463 Chicago Pneumatic O Ring (P5)

Price $5.34
2050487473 Chicago Pneumatic Bushing - Valve 2050487473 Chicago Pneumatic Bushing - Valve

2050487473 Chicago Pneumatic Bushing - Valve

Price $15.77
2050487483 Chicago Pneumatic Pin - Grooved 2050487483 Chicago Pneumatic Pin - Grooved

2050487483 Chicago Pneumatic Pin - Grooved

Price $5.34
2050498953 Chicago Pneumatic Valve Assy 2050498953 Chicago Pneumatic Valve Assy

2050498953 Chicago Pneumatic Valve Assy

Price $14.25
2050506823 Chicago Pneumatic Tune Up Kit - Rp9311 & Rp9312 2050506823 Chicago Pneumatic Tune Up Kit - Rp9311 & Rp9312

2050506823 Chicago Pneumatic Tune Up Kit - Rp9311 & Rp9312

Price $44.72
2050525333 Chicago Pneumatic Zip Change Retainer 2050525333 Chicago Pneumatic Zip Change Retainer

2050525333 Chicago Pneumatic Zip Change Retainer

Price $11.04
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940170877 Chicago Pneumatic Air Inlet 8940170877 Chicago Pneumatic Air Inlet

8940170877 Chicago Pneumatic Air Inlet

Price $9.69
8951011958 Chicago Pneumatic Retainer - Quick Change 8951011958 Chicago Pneumatic Retainer - Quick Change

8951011958 Chicago Pneumatic Retainer - Quick Change

Price $2.95
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CP7150 Chicago Pneumatic 0.401" Air Hammer Round Shank CP7150 Chicago Pneumatic 0.401" Air Hammer Round Shank

CP7150 .401" Air Hammer Round Shank - This air hammer has a 0.401" round shank, longer piston stroke, integral muffler and it is the most powerful air hammer in its class. This is the ideal tool for all of your heavy-duty applications.

Price $96.30
