110138 Robinair Tinnerman Clips Speednut Bracket - 90 Degree. (5 Pack) for Upper Gray Shroud For Cart Style Recovery Units.

112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings.

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well.

122623 Robinair Blue Tank Liquid Hose 40" 1/8" MPT x 1/2" ACME QS. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 500 psi working pressure, 2500 psi burst pressure.

122624 Robinair Red Tank Vapor Hose 40" 1/8" MPT x 1/2" ACME QS. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 500 psi working pressure, 2500 psi burst pressure.

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time. Robinair "High Vacuum Pump Oil" has a lower moisture content than other oils, thanks to our special packaging and handling procedures. Moisture degrades the oil’s purity, thinning it and reducing the pump’s ability to reach a deep vacuum.

8oz. Graduated Oil Drain - Oil Injector Bottle. 8oz Capacity in 1/2oz graduations and 240 Milliliters in 10 Milliliter graduations, for dispensing oil via an injector or for measuring oil removed during refrigernt recovery process. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life.

17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings.

Lowside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. The quick-connect design has an integral safety sleeve, which protects against injury and refrigerant loss if the coupler is disconnected under pressure. The compact design easily fits into tight quarters, which is especially handy for retrofits. Six-ball couplers provide a more stable grip on the fitting than do couplers with four balls.

Highside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. The quick-connect design has an integral safety sleeve, which protects against injury and refrigerant loss if the coupler is disconnected under pressure. The compact design easily fits into tight quarters, which is especially handy for retrofits. Six-ball couplers provide a more stable grip on the fitting than do couplers with four balls.

Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. The quick-connect design has an integral safety sleeve, which protects against injury and refrigerant loss if the coupler is disconnected under pressure. The compact design easily fits into tight quarters, which is especially handy for retrofits. Six-ball couplers provide a more stable grip on the fitting than do couplers with four balls.

O-Ring Kit For 18190A & 18191A Couplers

This Metering Tank Adapter allows gas to be recovered via the liquid port of a virgin refrigerant cylinder with a low side coupler for faster filling of your internal cylinder. The brass fitting is metered with a small orifice to prevent refrigerant flooding preventing damage to the recovery units compressor. Required for some units.

19740 Source Tank Filter For 134A units. Protect your investment from debris and harmful elements from tank manufacturing processes. Metal debris can foul solenoids causing unnecessary repairs and equipment failures. Install this filter on the hose end of your tank add hose to protect your machine. 100 mesh screen is replaceable or cleanable. 1/2" Female ACME X 1/2" Male ACME fittings Installs inline of tank fill hose. This special filter fitting is used inline between the tank fill hose and the virgin refrigerant tank to help prevent any tank debris from getting inside the A/C RRR machine. Simply screw the filter fitting onto the tank, and then connect the tank fill hose to end of the fitting. Instructions are included that tell the user how to install the fitting and how to clean the filter when necessary.

Lower Gray Shroud For Cart Style Recovery Units. Replaces all other color shrouds.

The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount. Keep your machine operating with 34724 replacement filters or 13172 maintenance kits. Compatible with accessory printer 30038.

• Automatic Recovery - When this mode is selected, the 34288NI looks for pressure from the vehicle and proceeds if the pressures are acceptable.
• Automatic Air Purge - Eliminates damaging air without any monitoring of gauges or opening of valves.
• Automatic Oil Drain - The unit automatically drains system oil captured during recovery, and the display reminds you to empty the bottle. Graduations on the container clearly show you how much oil needs to be replaced.
• Refrigerant Charging - Has never been this easy. Select a charge mode from either the low side, or low side and high side. Accuracy features eliminate guesswork! (manual operation using panel valves)
• New Display - The new, easier-to-read 5 × 9 cm (4.3-in. diagonal) graphical LCD features multilingual capability – The user can select English, Spanish, or French languages.
• Refrigerant Management Systems - New and improved, system displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains. Replacement Filter Part No. 34724.
• Vacuum Function - Defaults to 15 minutes, but is programmable up to 99 minutes. Remaining time is displayed on the screen.

The Robinair 34430 filter-drier has been specifically formulated using XH9 drier desiccant to trap acid and particulates and is formulated to remove water from the refrigerant. DO NOT accept look alike or knock off filters. You must regularly change the 34430 filter-drier to assure adequate moisture and contaminant removal. Typically, you can recycle up to 300 pounds (136 kilograms) of R-134a or 600 pounds (272 kilograms) of refrigerant between filter changes. To help you know when you’ve reached that point, the unit displays the warning message prompting you to change the filter drier.

The 34724 Robinair filter drier has been specifically formulated to trap acid and particulates and is formulated to remove water from the refrigerant. DO NOT accept look alike or knock off filters. You must change the filter-drier to assure adequate moisture and contaminant removal. Typically, you can recycle up to 300 pounds (136 kilograms) of R-134a or 600 pounds (272 kilograms) of refrigerant between filter changes (depending on your model). To help you know when you’ve reached that point, the unit displays the warning message prompting you to change the filter drier.

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor depression on the schreader fitting causing low flow or restriction due to swelling.

The Robinair 45111 R134A Refrigerant Brass Manifold Gauge set features R12/R134a gauges, PSI, and °F Temp scales on the face solid brass construction with easy-to-grip handles. Includes three 72" EnviroGaurd low permeation color-coded hoses and manual service couplers. ½" ACME bottom ports and rear ½" ACME fittings for holding Hoses. Face Seal Valves Give a tight seal, less wear and improved flow. Heavy brass construction make this a life time tool.

557648 Robinair 34724 Filter O-Ring Small

557649 Robinair 34724 Filter O-Ring Large

Main Power Switch Controls the power between the power cord and the main board.

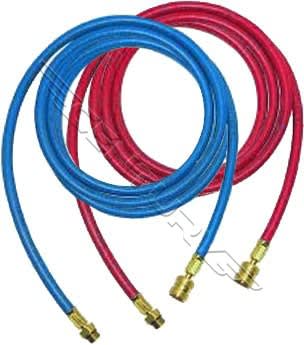

64240 Set of Red/Blue 20’ Enviro-Guard Hoses for Automotive R-134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. (If using these on machines that have schrader valves on the hose fittings, be sure to order hose depressors and gaskets.)

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use.

Recent production changes may affect your placement of this pump. The new pump was designed for 17800B cart style Recovery Recycling Units Only. For all other applications See 15548 For Replacement pumping section or RA19902 as a possible replacement.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

System Relay 115 volt coil, double pole single throw normally open switch with dual sets of 15 amp contacts. Acts as a pilot from the circuit board usually carrying higher amp loads to protect smaller relays on board. Can be used for universal applications due to the high amp contact rating.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Breaker 3 Amp Protects the unit from drawing too much current. If tripped, controller is inoperative.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Ball Valve Assembly A manual valve that, when open, routes discharge pressure through the condenser.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

115 Volt Grounded recepticle that acessories plug into
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

High Pressure Cutout 17650 / 17655 A normally closed sensor that opens, stopping the recovery process when the compressor discharge pressure reaches 435 psi. SPDT Contact arrangement. 1/4 spade termination.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

115 Volt Power Cord Receptacle.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Solenoid Rebuild Kit Normally closed Solenoid Rebuild Kit - Used to rebuild certain solenoids in manifolds or discrete (RA19006) etc..
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Main Power Switch Controls the power between the power cord and the main board.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

High Side Gauge Reads pressure entering the high side hose.Panel mount & nuts included. 1/8" Female Pipe Thread connection. See RA19257 2-3/4" Replacement Gauge Lens.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

115v 100CFM Fan Cooling fan positioned to pull air into front of unit across condenser and compressor and discharge it through top of unit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Vacuum Pump Protection Switch Normally open switch closes at 25psi and reopens at 10psi. Prevents vacuum pump from starting when pressure exists in vehicle's system.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

110v Compressor With O-Ring Fittings - Discontinued - See RA19865 And Install Kit 1/3 hp hermetic piston type compressor, with o-ring fittings, used to move refrigerant. Converts the low pressure, low temperature entering gas into a high pressure, high temperature exiting gas.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Solar Power Tank Thermometer (F/C) Used to monitor tank temperature. Use with PT chart to determine air percentage. You will also need a 523568 compression fitting to finish the install.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

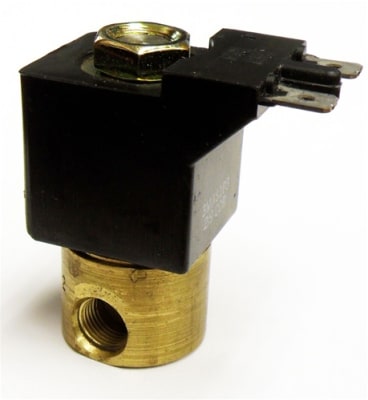

110v N/C Skinner Valve
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Scale Assembly Single Sends a signal to the main board for accurate weight readings and tank overfill protection.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

The internal fittings used in the manifold block style machines use o-ring bubble fittings instead of flare fittings and require o-ring replacements to seal properly. (10 Pack)
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

115v Solenoid Coil Coil only, used to energize a normally closed solenoid that, when energized, allows flow. i.e. Recovery, Charge, vacuum, etc. NOTE: RA19258 Solenoid Rebuild Kit
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Check Valve 1/8 M Pipe X 1/4 Flare O-Ring A two port valve, that normally allows fluid (liquid or gas) to flow through it in only one direction.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

ONLY (1) AVAILABLE

Keypad 34234 User input device attached to a circuit board to select start, stop, and program functions of the unit.

Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Circuit Board AC890 User interface for controlling refrigerant recovery, recycling, recharging, and other functions of the unit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

ONLY (1) AVAILABLE

Circuit Board 343002K User interface for controlling refrigerant recovery, recycling, recharging, and other functions of the unit.

Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

115 Volt Cubigel Compressor (Replaces The RA17110, RA17434, RA19458, & RA19748) Includes all hardware and electrical for a complete install. See additional plumbing retrofit kits noted in Technical Specs for older style units.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.
