Robinair 34700Z R-134A Recovery Recycling Unit Parts

Illus. # Part # Description
1 RA19786 Gauge, Low Side
2 RA19787 Gauge, High Side
*
19639 Gauge Lens
3 RA19891 Lamp, Red (115V)
4 RA19890 Lamp, Blue (115V)
5 RA19888 Control Module, 700Z
5 RA19889 Keypad (part of Control Module)
6 RA19343 Switch (On/Off)
7 RA19902 Vacuum Pump, 2-Stage (115V) New Style
7 RA15425 Vacuum Pump, 2-Stage (115V) Old Style
*34700Z used a 6 CFM vacuum pump (RA15425) up to serial no. 165829 / 1205, then the 3 CFM vacuum pump (RA19902) was used
N/S 15369 Base and Foot Assembly (Pump)
8 112635 High Side Hose Spud
9 112634 Low Side Hose Spud
10 17756 Oil Drain Bottle
11 RA19798 Internal Tank Assembly
12 RA19499 Pressure Relief, 450 PSI
13 RA19895 Air Purge Solenoid, 1/16" (115V)
14 RA19795 Air Purge Control, (R-134a)
14 RA19796 Air Purge Control, (R-12)
13&14 124049 Air Purge Assembly, (R-134a) (115V)
13&14 124050 Air Purge Assembly, (R-12) (115V)
15 RA19592 Expansion Valve Assembly
16
RA19999
RA19998
Inlet Manifold Assembly (Old Style)
Solenoid Rebuild Kit (Old Style)

RA20050
RA20030
Inlet Manifold Assembly (New Style)
Solenoid Rebuild Kit (New Style)

RA19892 Pressure Transducer (Old Style Plastic)

537027 Pressure Transducer (New Style Steel)
17 RA19047 Receptacle, Vacuum Pump
18 RA17549 Circuit Breaker, 15 Amp
19 RA17548 Circuit Breaker, 3 Amp
20 19867 Oil Inject Bottle
21 RA19545 Manifold Assembly
22 34724 Filter Drier
23 RA19865 Compressor Assembly (115V)
24 RA19631 Wheel, Caster, 5"
25 19823 Wheel, Pneumatic, 10"
26 122294 Oil Drain Assembly (See Parts Below)
26 RA19672 Oil Drain Switch
26 RA19896 Oil Drain Solenoid, 3/32" (115V)
26 RA19282 Check Valve
27 122770 Power Cord

Not Shown RA19998 Inlet Solenoid, Old Style
Not Shown RA19897 Oil Inject Solenoid (115V) See RA19006
Not Shown RA19630 Solenoid Coil (115V Old Style) (Inlet & Oil Inject)
Not Shown RA19491 Solenoid Coil (115V) (Manifold Solenoids)
Not Shown RA19006 Solenoid, N.C. (115V)
Not Shown RA19427 High Pressure Cutout Switch
Not Shown RA18752 Vacuum Switch, 13" HG
Not Shown RA19799 Check Valve Update Kit
Not Shown RA19871 Check Valve, Closure
Not Shown RA19282 Check Valve , 1/8" MPT x 1/8" MPT
Not Shown 517110 Compressor Start Relay (115V)
Not Shown 517111 Compressor Motor Protector (115V)
Not Shown 517112 Compressor Start Capacitor (115V)
Not Shown RA19489 Compressor Start Kit (115V)
Not Shown RA19603 Scale Assembly
Not Shown RA17416 Fan (115V)
Not Shown RA19632 Door Latch Kit
Not Shown 68396A Service Hose, 96" High Side (R-12)
Not Shown 68296A Service Hose, 96" Low Side (R-12)
Not Shown 63096 Service Hose, 96" High Side (R-134a)
Not Shown 62121 Service Hose, 96" Low Side (R-134a)
Not Shown 18190A Low Side Service Coupler
Not Shown 18191A High Side Service Coupler

Sort By:
Page of 1
100385 Robinair Power Cord Strain Relief / Heyco Bushing
100385 Robinair Power Cord Strain Relief / Heyco Bushing
Price $3.29

Robinair Power Cord Strain Relief Protects the lifeline of your electric/electronic products by absorbing the forces of pull, push, and twist that may be exerted on the flexible power cord. Securely anchors, insulates, and protects cables at panel entry points. more info
106845 Robinair Oil Injector Dip Tube 5/16 OD X 4.25 Long
106845 Robinair Oil Injector Dip Tube 5/16 OD X 4.25 Long
Price $3.45

106845 Robinair Oil Injector Dip Tube 5/16 OD X 4.25 Long more info
112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each)
112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each)
Price $1.25

112364 Robinair O-Ring For R-134a Quick Seal Fittings (Each). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings. more info
112634 Robinair Low Side Docking Spud for all sidewinder style carts
112634 Robinair Low Side Docking Spud
Price $40.52

112634 Robinair Low Side Docking Spud for all sidewinder style carts more info

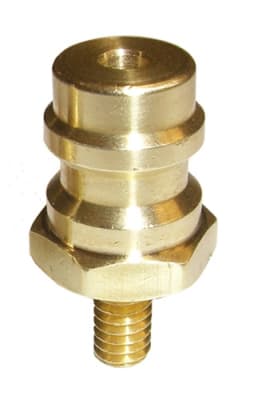

112635 Robinair High Side Docking Spud for all sidewinder style carts
112635 Robinair High Side Docking Spud
Price $39.74

112635 Robinair High Side Docking Spud for all sidewinder style carts more info
112699 Robinair Oil Injector O-Ring
112699 Robinair Oil Injector O-Ring
Price $2.59

112699 Robinair Oil Injector O-Ring more info
114692 Robinair Oil Bottle Cap
114692 Robinair Oil Bottle Cap
Price $4.62

114692 Robinair Oil Bottle Cap for Oil Inject / Drain bottle, for 8 - 12 ounce oil injector bottles. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Don't forget extra bottles (115642) for storing different oil types. more info
114693 Robinair Oil Bottle Cap (Less Liner With Holes)
114693 Robinair Oil Bottle Cap (Less Liner With Holes)
Price $3.45

114693 Robinair Oil Bottle Cap (Less Liner With Holes) For Oil Injectors more info
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)
Discontinued See 40083

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well. more info
115642 Robinair 12oz. Oil Drain - Oil Injector Bottle
115642 Robinair 12oz. Oil Drain - Oil Injector Bottle
Price $8.09

12oz. Graduated Oil Drain - Oil Injector Bottle. 12oz Capacity in 1/2oz graduations and 360 Milliliters in 10 Milliliter graduations, for dispensing oil via an injector or for measuring oil removed during refrigerant recovery process. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Don forget extra caps (114692) for storing different oil types. more info
11564 Robinair 12oz. Oil Injector Bottle Kit
115642KIT Robinair 12oz. Oil Injector Storage Bottle & Cap Kit
Price $13.42

12oz. Graduated Oil Injector Bottle. 12oz Capacity in 1/2oz graduations and 360 Milliliters in 10 Milliliter graduations. For storing alternative oils for injection & for dispensing oil via an injector or for measuring oil removed during refrigerant recovery process. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Includes cap & Level O-ring. more info
120225 Robinair 1/4" O.D. Oil Injector Tubing
120225 Robinair 1/4" O.D. Oil Injector Tubing (By Inch)
Price $0.55

120225 Robinair 1/4" O.D. Oil Injector Tubing. For all "Side-Winder" Style Recovery Units. Sold By The Inch. See RA20007 Robinair 1/4 Ferrule And Nut (each). more info
121773 Robinair 1/8" Black Nylon Tube (Sold By Foot)
121773 Robinair 1/8" Black Nylon Tube (Sold By Foot)
Price $4.90

1/8" Black Nylon Tube, used to connect lowside and highside gauge to manifold block and connect oil drain block to drain. more info
121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each)
121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each)
Price $1.89

121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each) more info
121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack)
121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack)
Price $5.20

121829-PK5 Robinair 1/4-20 3/4" Pan Torx Screw (5 Pack) more info
121909 Robinair Power Cord Bracket
121909 Robinair Power Cord Bracket
Price $15.62

Robinair Power Cord Bracket. "U" shaped metal bracket that holds the strain relief bushing and power cord in place at entry point of unit. more info
121925 Robinair Velcro Refrigerant Tank Strap
121925 Robinair Velcro Refrigerant Tank Strap
Price $7.63

121925 Robinair Velcro Refrigerant Tank Strap more info
121961 Robinair 36in. Black Source Tank Hose 134A
121961 Robinair 36in. Black Source Tank Hose 134A
Discontinued See RA19468

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info
121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each)
122052 Robinair Screw #4-40 X 3/8 PEH Torx (Each)
Price $3.91

121829 Robinair 1/4-20 3/4" Pan Torx Screw (Each) more info
122293 Robinair Sidewinder Front Cabinet Panel
122293 Robinair Sidewinder Front Cabinet Panel
Discontinued See 544023

Robinair Sidewinder Front Cabinet Panel. Fits all "Sidewinder" style carts. Installs in minutes with torx type screws (not included). more info
122745 Robinair Light Hole Cover For Sidewinder Top
122745 Robinair Light Hole Cover For Sidewinder Top
Price $19.10

122745 Robinair Light Hole Cover For Sidewinder Top more info
122770 Robinair Power Cord 15' Euro Colors
122770 Robinair Power Cord 15' Euro Colors
Price $34.40

Power Cord 15' Euro Colors Power Cord 15' Supplies main power to the unit. more info
123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve
123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve
Price $18.68

123610 Robinair 1/4 Female Flare Quick Seal X 1/4 Male Pipe Thread Tank Valve (Sold Each). Quick Seal Fittings prevent gas loss when hose is removed. DO NOT remove these fittings from tanks while pressurized. more info
123640 Robinair Isv Liquid Hose
123640 Robinair Isv Liquid Hose
Price $20.96

Isv Liquid Hose Supplies liquid refrigerant from internal tank to charging solenoid on manifold block for adding refrigerant to vehicle. 36" X 1/8" MPT X 1/8" MPT Fittings. more info
123785 Robinair Discharge Oil Coalescing Filter O-Ring
123785 Robinair Discharge Oil Coalescing Filter O-Ring
Price $3.29

123785 Robinair Discharge Oil Coalescing Filter O-Ring more info
123786 Robinair Discharge Oil Filter Canister O-Ring
123786 Robinair Discharge Oil Filter Canister O-Ring
Price $4.12

123786 Robinair Discharge Oil Filter Canister O-Ring more info
123787 Robinair Discharge Oil Coalescing Element
123787 Robinair Discharge Oil Coalescing Element
Price $42.08

123787 Robinair Discharge Oil Coalescing Element separates oil from vapors in the discharge gas stream so it can be returned back to the compressor. This filter can become plugged when a compressor fails from a burn out or overheating due to waxes normally found in refrigerants. more info
124000 Robinair Power Harness for 347002K 34700Z connects main power switch to main board. Board connection P10.
124000 Robinair Power Harness 347002K 34700Z
Price $6.80

Power Harness for 347002K 34700Z connects main power switch to main board. Board connection P10. more info
124005 Robinair Breaker Harness for 347002K 34700Z connects circuit breakers to main board. Board connection P11 and spade terminal connections 38, 39, 40 & 41.
124005 Robinair Breaker Harness 347002K 34700Z
Price $7.95

Breaker Harness for 347002K 34700Z connects circuit breakers to main board. Board connection P11 and spade terminal connections 38, 39, 40 & 41. more info
124006 Robinair High Pressure Wire Harness 347002K 34700Z
124006 Robinair High Pressure Wire Harness 347002K 34700Z
Price $7.80

124006 Robinair High Pressure Wire Harness 347002K 34700Z connects high pressure switch to main board. Board connection P28. more info
124023 Robinair Vacuum Pump Oil Fill Cap
124023 Robinair Vacuum Pump Oil Fill Cap
Price $4.62

124023 Robinair Vacuum Pump Oil Fill Cap more info
13172 Robinair Filter - Pump Oil Maintenance Kit with 34724 Filter Designed for newer units manufactured after 1998.. This filter-drier has been specifically formulated using XH9 drier desiccant to trap acid and particulates
13172 Robinair Filter Pump Oil Maintenance Kit With 34724 Filter
Price $59.95

Keep recovery and recycling units operating at peak efficiency with a convenient maintenance kit. Contains one quick change filter-drier to be used on either R-12 or R-134a stations, and one 16 ounce bottle of our Premium High Vacuum Pump Oil.  Designed for newer units manufactured after 1998. more info
13203 Robinair Premium High Vacuum Pump Oil Quart Bottle
13203 Robinair Premium High Vacuum Pump Oil Quart Bottle
Price $7.20

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time. more info
13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle
13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle
Price $24.90

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time. Robinair "High Vacuum Pump Oil" has a lower moisture content than other oils, thanks to our special packaging and handling procedures. Moisture degrades the oil’s purity, thinning it and reducing the pump’s ability to reach a deep vacuum. more info
15369 Robinair Base & Foot Assembly For 15400 15600 15434 Series Vacuum Pumps
15369 Robinair Base & Foot Assembly For 15400 15600 15434 Series Vacuum Pumps
Price $24.32

Base & Foot Assembly For 15400 / 15600 / 15434 Series Vacuum Pumps more info
15548 Robinair Pump Assembly Less Motor For 15600 Vacuum Pump
15548 Robinair Pump Assembly Less Motor For 15600 Vacuum Pump
Price $314.53

Forward Pumping section for 6 CFM Vacuum Pumps. Includes Pump, Iso Valve Installed, drain fitting and oil fill cap. For model 15600. more info
15600 Robinair CoolTech 6 CFM 2 Stage  Rotary Vane Vacuum Pump
15600 Robinair CoolTech 6 CFM 2 Stage Rotary Vane Vacuum Pump
Price $443.44

ROBINAIR 6 CFM 2 STAGE ROTARY VANE VACUUM PUMP Thoroughly evacuate todays tighter systems with their increased sensitivity to contaminants. Iso-Valve isolates pump from system, making it easy to measure rate of rise. more info
16103 Robinair 10 In. Pneumatic Wheel Foam Filled Replaces 19823
16103 Robinair 10 In. Pneumatic Wheel Foam Filled Replaces 19823
Price $55.42

Robinair 10" Heavy Duty Foam Filled Pneumatic wheel for Sidewinder style Cart units. Replaces 19823. No more flat tires. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life. more info
17492 Robinair Vinyl Dust Cover For 342000 347002K 34700Z
17492 Robinair Vinyl Dust Cover For 342000 347002K 34700Z
Price $69.46

Protect your investment with a heavy-duty vinyl dust cover. Features corded seams for durability; medium gray color with Cool-Tech logo. Fits 3420000, ACR2000, ACR2005, 177002K, 17700Z, 347002K, 34700Z, 34134Z series units. more info
17496 Robinair Vinyl Dust Cover For 342000 347002K 34700Z
17496 Robinair Vinyl Dust Cover
Discontinued See 17492

Discontinued See 17492 more info
17756 Robinair Oil Drain Bottle For Sidewinder Cabinet Style Recovery Machines
17756 Robinair Oil Drain Bottle For Sidewinder Cabinet Style Recovery Machines
Price $20.84

Oil Drain Bottle For Robinair Sidewinder Cabinet Style Recovery Machines more info
17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack)
17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack)
Price $12.50

17773 Robinair O-Ring For R-134a Quick Seal Fittings (2 Pack). Fits the internal face of the quickseal fitting on 134A hoses for recovery equipment, gauge set hoses and tank fill hoses with 1/2" ACME fittings. more info
18180 Robinair Quick Seal O-Ring Set (6 Pack)
18180 Robinair Quick Seal O-Ring Set (6 Pack)
Price $13.88

QUICK SEAL O-Ring Set (6 Pack), O-Rings made of durable silicone rubber for resilience and long life.  fits all 1/4" Flare Quickseal Hose Ends. more info
18190A Robinair Lowside Service Coupler 134a
18190A Robinair Lowside Service Coupler 134a
Price $36.47

Lowside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. more info
18191A Robinair Highside Service Coupler 134a
18191A Robinair Highside Service Coupler 134a
Price $36.47

Highside Service Coupler 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. more info
18192 Robinair High/Low Side Service Couplers 134a
18192 Robinair High/Low Side Service Couplers 134a
Price $69.46

18192 Robinair High/Low Side Service Couplers 134a. Field service couplers connect to our special Enviro-Guard hoses to allow access to service ports on automotive R-134a A/C systems. more info
19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle
19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle
Price $30.20

19056 Robinair Heavy Duty Refrigerant Tank Strap With Buckle more info
19150 Robinair O-Ring Kit For 18190A & 18191A Couplers
19150 Robinair O-Ring Kit For 18190A & 18191A Couplers
Price $13.88

O-Ring Kit For 18190A & 18191A Couplers more info
19502 Robinair Red Cap For Asco Solenoid
19502 Robinair Red Cap For Asco Solenoid
Discontinued

Red Cap For Asco Solenoid more info
19639 Robinair Gauge Lens For RA19786 RA19787
19639 Robinair Gauge Lens For RA19786 RA19787
Discontinued

19639 Robinair Gauge Lens For RA19786 RA19787. Clear protective cover for the high side and low side gauges. See individual Gauges for a replacement.. Made of durable acrylic for long life, used on both Low and High side gauges. (this gauge lens does not have the needle used for Min / Max reading for monitoring pressure swing on air conditioning systems). more info
19740 Source Tank Filter For 134A units. Protect your investment from debris and harmful elements from tank manufacturing processes. Metal debris can foul solenoids causing unnecessary repairs and equipment failures. Install this filter on the hose end
19740 Robinair Source Tank Filter For 134A
Price $50.51

19740 Source Tank Filter For 134A units. Protect your investment from debris and harmful elements from tank manufacturing processes. Metal debris can foul solenoids causing unnecessary repairs and equipment failures. Install this filter on the hose end of your tank add hose to protect your machine. 100 mesh screen is replaceable or cleanable. 1/2" Female ACME X 1/2" Male ACME fittings Installs inline of tank fill hose. more info
Robinair 10" Heavy Duty Pneumatic wheel for Sidewinder style Cart units. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life.
19823 Robinair 10 In. Pneumatic Wheel
Discontinued See 16103

Robinair 10" Heavy Duty Foam Filled Pneumatic wheel for Sidewinder style Cart units. Deep tread design for no slip traction even on wet or oily floors. A tubeless design with long air stems provide easy inflation and long life. more info
19830 Robinair Oil Injector Cap (Steel) & Bulkhead Fitting
19830 Robinair Oil Injector Cap (Steel) & Bulkhead Fitting
Price $15.62

Robinair Oil Injector Cap (Steel) & the fitting is a 1/8 MPT x 5/16" press in hose capture device that also holds the cap in place. The included cap has a hole for mounting and 2 weep holes for equalization.. Replaces all earlier white plastic caps. For all "Side-Winder" Style Recovery Units. more info
19867 Robinair Oil Injector Repair Kit
19867 Robinair Oil Injector Repair Kit
Price $14.07

Oil Injector Repair Kit. For all "Side-Winder" Style Recovery Units. Includes all necessary components to rebuild broken or missing oil injector bottle assemblies. more info
The 34724 Robinair Recycling Filter Drier has been specifically formulated to trap acid and particulates and is formulated to remove water from the refrigerant. DO NOT accept look alike or knock off filters.
34724 Robinair Recovery Recycling Unit Filter Drier
Price $54.95

The 34724 Robinair filter drier has been specifically formulated to trap acid and particulates and is formulated to remove water from the refrigerant. DO NOT accept look alike or knock off filters. You must change the filter-drier to assure adequate moisture and contaminant removal. Typically, you can recycle up to 300 pounds (136 kilograms) of R-134a or 600 pounds (272 kilograms) of refrigerant between filter changes (depending on your model). To help you know when you’ve reached that point, the unit displays the warning message prompting you to change the filter drier. more info
34788NI Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine
34788NI Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine
Price $4,249.00 Free Shipping

Robinair 34788 Combines Simple Operation With Superior Accuracy, Setting The Standard For SAE J2788 Standards For Accuracy And Speed. Robinair Is Ahead Of The Game With Fully automatic function lets you recover, vacuum, leak test, charge, and then walk away. Combines simple operation with superior accuracy. The Cool-Tech 34788 recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately. Automatic operation means less attention is needed! Features Include, Fully Automatic Function, Vacuum Leak Test, Automatic Refrigerant Refill, Automatic Air Purge, Automatic Oil Drain, Refrigerant Charging, Refrigerant Management System, Vacuum Function. more info
34788NI Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine
34788NI-H Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine For Hybrid
Price $4,249.00 Free Shipping

Robinair 34788 Combines Simple Operation With Superior Accuracy, Setting The Standard For SAE J2788 Standards For Accuracy And Speed. Robinair Is Ahead Of The Game With Fully automatic function lets you recover, vacuum, leak test, charge, and then walk away. Combines simple operation with superior accuracy. The Cool-Tech 34788 recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately. Automatic operation means less attention is needed! Features Include, Fully Automatic Function, Vacuum Leak Test, Automatic Refrigerant Refill, Automatic Air Purge, Automatic Oil Drain, Refrigerant Charging, Refrigerant Management System, Vacuum Function. more info
34988NI Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine
34988NI Robinair Premier R-134A Refrigerant Recovery Recycling Recharging Machine
Price $4,849.00 Free Shipping

The Robinair 34988NI Premium A/C Machine combines ease of use and superior accuracy. It recovers, recycles, evacuates, leak tests and recharges R-134a vehicle systems quickly and accurately. The fully automatic function will recover, vacuum, leak test and charge on its own without the need to stand and monitor the machine. The product is fully SAE J2788 compliant and exceeds the requirements for charge accuracy and recovery efficiency. Robinair's patented automatic refrigerant refill feature maintains a user-selectable amount of refrigerant in the internal vessel and signals when it’s time to change supply tank, no monitoring required. The 34988NI will automatically add oil if necessary using load cells that measure the amount of oil removed from the system and automatically putting the right amount of A/C lubricant back into the system, make the 34988NI the only true fully automatic machine available today. more info
34998 Robinair Connected R-134A ACS Recovery Machine
34998 Robinair Connected R-134A ACS Recovery Machine
Price $5,649.00 Free Shipping

Buy AC1234-9 or 34998 Receive a FREE ACS-250 and Vehicle Capacity Database
The Robinair 34998 Connected R-134A Machine recovers, recycles, evacuates, leak-tests and recharges R-134A with improved 98.5% efficiency – unmatched by any competitor. The new design features a large 10" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and refrigerant identification. The 3 also boasts full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and capacities database downloads. Use Google Cloud printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally.
more info
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)
Price $13.88

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor flow. more info

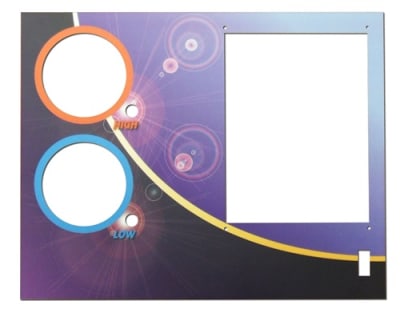

522545 Robinair Face Plate Overlay 34700Z
522545 Robinair Face Plate Overlay 34700Z
Price $21.50

522545 Robinair Face Plate Overlay 34700Z. Pretty that old girl up with a new faceplate. Requires the removal of all faceplate hardware, gauges switches lights and board. more info
523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting
523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting
Price $15.85

523148 Robinair Oil Injector Steel Cap & Bulkhead Fitting used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced. more info
523149 Robinair Oil Injector Steel Cap
523149 Robinair Oil Injector Steel Cap
Price $5.85

Oil Injector Cap used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced. more info
523195 Disc See 20019 Robinair Vacumaster Oil Fill Plug
523195 Robinair Vacumaster Oil Fill Plug
Discontinued See 20019

VacuMaster Oil Fill Plug more info
523284 Robinair Faceplate Logo Bubble Decal Cooltech 34700Z
523284 Robinair Faceplate Logo Bubble Decal Cooltech 34700Z
Discontinued

523284 Robinair Faceplate Logo Bubble Decal Cooltech 34700Z more info
523477 Robinair Discharge Condenser Heat Exchanger Coil
523477 Robinair Discharge Condenser Heat Exchanger Coil
Price $83.95

523477 Robinair Discharge Condenser Heat Exchanger Coil more info
537027 Robinair Pressure Transducer (New Style, Steel)
537027 Robinair Pressure Transducer (New Style, Steel)
Price $174.80

Inlet Manifold Pressure Transducer Measures the pressure of incoming refrigerant from the A/C system. Pressure readings are then relayed to the control board. Used primarily for leak testing. This transducer is not backwards compatible with older units using black plastic body transducers. For those units see RA19892. more info
539668 Robinair Suction Accumulator Canister O-Ring
539668 Robinair Suction Accumulator Canister O-Ring
Price $6.96

539668 Robinair Suction Accumulator Canister O-Ring more info
544023 Robinair Front Panel Sidewinder Cart
544023 Robinair Front Panel Sidewinder Cart
Price $158.30

544023 Robinair Front Panel Sidewinder Cart, No decals or hardware, Grey. more info
557648 Robinair 34724 Filter O-Ring Small
557648 Robinair 34724 Filter O-Ring Small
Price $3.45

557648 Robinair 34724 Filter O-Ring Small more info
557649 Robinair 34724 Filter O-Ring Large
557649 Robinair 34724 Filter O-Ring Large
Price $3.45

557649 Robinair 34724 Filter O-Ring Large more info
569103 Robinair Door Latch Kit Sidewinder Cabinet
569103 Robinair Door Latch Kit Sidewinder Cabinet
Price $24.32

Door Latch Kit Sidewinder Cabinets Device that contains spring, latch, retainer, and receptacle that holds door closed.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center. For a list of authorized service providers in your area, click here
more info
569104 Robinair Main Power Switch
569104 Robinair Main Power Switch
Price $13.88

Main Power Switch Controls the power between the power cord and the main board. more info
569105 Robinair Caster 5" X 2"
569105 Robinair Caster 5" X 2"
Price $78.74

Caster 5" X 2" Swivel wheels mounted beneath unit for mobility. more info
62121 Robinair 96" Low Side Enviro-Guard System Hose R134A
62121 Robinair 96" Low Side Enviro-Guard System Hose R134A
Price $35.07

96" Low Side System Hose R134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. more info
62242 Robinair 240" Low Side Blue Enviro-Guard System Hose R134A
62242 Robinair 240" Low Side Blue Enviro-Guard System Hose R134A
Price $51.92

Blue 240" Enviro-Guard Hose for Automotive R-134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. more info
62246 Robinair 240" High Side Red Enviro-Guard System Hose R134A
62246 Robinair 240" High Side Red Enviro-Guard System Hose R134A
Price $51.92

Red 240" Enviro-Guard Hose for Automotive R-134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. Clearly marked for R-134a. 740 psi working pressure, 3700 psi burst pressure. more info
63096 Robinair 96 Enviro-Guard High Side System Hose R134A
63096 Robinair 96 Enviro-Guard High Side System Hose R134A
Price $35.07

96" High Side System Hose R134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. more info
64240 Robinair 20 Foot Enviro-Guard Hose Set For Automotive R-134A
64240 Robinair 20 Foot Enviro-Guard Hose Set For Automotive R-134A
Price $103.16

Set of Red/Blue 20’ Enviro-Guard Hoses for Automotive R-134A. Enviro-Guard Hoses for Automotive R-134a. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant. more info
AC1234-9 Robinair Connected R-1234YF ACS Recovery Machine
AC1234-9 Robinair Connected R-1234YF ACS Recovery Machine
Price $6,995.00 Free Shipping

Buy AC1234-9 or 34998 Receive a FREE ACS-250 and Vehicle Capacity Database
The Robinair AC1234-9 Connected R-1234YF ACS Machine recovers, recycles, evacuates, leak-tests and recharges R-1234yf with improved 98.5% efficiency – unmatched by any competitor. The new design features a large 10" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and refrigerant identification. The AC1234-9 also boasts full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and capacities database downloads. Use Google Cloud printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally.
more info
NB6501 PROMAX 1/4" Flare Cap & Strap
NB6501 PROMAX 1/4" Flare Cap & Strap
Price $12.82

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use. more info
RA15425 Robinair 115v Station Mount Vacuum Pump
RA15425 Robinair 115v Station Mount Vacuum Pump (17800B Only)
Price $887.95

Recent production changes may affect your placement of this pump. The new pump was designed for 17800B cart style Recovery Recycling Units Only. For all other applications See 15548 For Replacement pumping section or RA19902 as a possible replacement. more info
RA17416 Robinair Fan
RA17416 Robinair Fan
Price $124.95

Fan Used to keep the unit hermetic compressor and electrical components cool. more info
RA17548 Robinair Breaker 3 Amp
RA17548 Robinair Breaker 3 Amp
Price $31.95

Breaker 3 Amp Protects the unit from drawing too much current. If tripped, controller is inoperative. more info
RA17549 Robinair Breaker 15 Amp
RA17549 Robinair Breaker 15 Amp
Price $16.95

Breaker 15 Amp Protects the unit from drawing too much current. If tripped, unit is completely inoperative. more info
RA18752 Robinair Vacuum Switch
RA18752 Robinair Vacuum Switch
Price $81.95

Vacuum Switch Normally closed switch that opens at 13 +/- 3" Hg and resets at 3 +/- 3" Hg. If the vacuum in the inlet is deeper than 13" Hg, the switch opens and stops the recovery or recycling process. This switch must also open to bring the unit out of clearing. more info
RA19006 Robinair Complete Solenoid Assembly 120v
RA19006 Robinair Complete Solenoid Assembly 120v
Price $146.95

Complete Refrigerant Solenoid Assembly (120v) Includes brass body and coil. A normally closed solenoid that, when energized, allows flow. i.e. Recovery, Charge, vacuum, etc. NOTE: RA19258 Solenoid Rebuild Kit more info
RA19047 Robinair 115 Volt AC Outlet
RA19047 Robinair 115 Volt AC Outlet
Price $16.95

115 Volt Grounded recepticle that acessories plug into more info
RA19258 Robinair Solenoid Rebuild Kit
RA19258 Robinair Solenoid Rebuild Kit
Price $94.95

Solenoid Rebuild Kit Normally closed Solenoid Rebuild Kit - Used to rebuild certain solenoids in manifolds or discrete (RA19006) etc.. more info
RA19282 Robinair Discharge Check Valve
RA19282 Robinair Micro Check Valve
Price $24.95

Check Valve Allows flow in one direction only and prevents pressure from back flowing into a particular path. more info
RA19322 Robinair Universal 1/2" ACME Oil Injector Assembly
RA19322 Robinair Universal 1/2" ACME Oil Injector Assembly
Price $179.95

This R-134a Oil Injector Assembly Allows for the storage 8 ounces and injection of oils and dyes into the A/C system with out permitting air to enter into the system. It attaches directly to the inlet fitting of any recovery unit and can be left permanently installed. more info
RA19326 Robinair Check Valve (Large Face) Sold Each
RA19326 Robinair Check Valve (Large Face) Sold Each
Discontinued

Check Valve, This kit includes 1 check valve & O-ring. Allows flow in one direction only, towards the recovery solenoid, and prevents refrigerant from escaping out of the inlet after recovery and during recycling, evacuation and shutdown. more info
RA19343 Robinair Main Power Switch
RA19343 Robinair Main Power Switch
Discontinued See 569104

Main Power Switch Controls the power between the power cord and the main board. more info
RA19427 Robinair High Pressure Switch
RA19427 Robinair High Pressure Switch
Price $106.95

High Pressure Switch If pressure inside the unit exceeds 435psi, the switch opens, stopping all functions of unit. NOTE: Switch opens at 435psi +/- 10psi and resets at 320psi +/- 20psi. more info
RA19468 Robinair 36in. Black Source Tank Hose 134A
RA19468 Robinair 36in. Black Source Tank Hose 134A
Price $48.95

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info
RA19479 Robinair O-Ring For Bubble Flare Fittings (10 Pack)
RA19479 Robinair O-Ring For Bubble Flare Fittings (10 Pack)
Price $10.95

The internal fittings used in the manifold block style machines use o-ring bubble fittings instead of flare fittings and require o-ring replacements to seal properly. (10 Pack) more info
RA19489 Robinair Compressor Start Kit
RA19489 Robinair Compressor Start Kit
Price $142.95

Compressor Start Kit for older style compressors (check service for applications) . more info
RA19491 Robinair 115v Solenoid Coil
RA19491 Robinair 115v Solenoid Coil
Price $64.95

115v Solenoid Coil Coil only, used to energize a normally closed solenoid that, when energized, allows flow. i.e. Recovery, Charge, vacuum, etc. NOTE: RA19258 Solenoid Rebuild Kit more info
RA19499 Robinair Pressure Relief Valve
RA19499 Robinair Pressure Relief Valve
Price $110.95

Pressure Relief Valve Safety valve on tank or internal storage vessel that opens if internal tank pressure exceeds 450psi. Valve has been designed, constructed and rated in accordance with ANSI/ASHRAE 15 -1994 Standard Safety Code for Mechanical Refrigeration Standards Association. more info
RA19545 Robinair Manifold Block Assembly 110v
RA19545 Robinair Manifold Block Assembly 110v
Price $1,730.95

Manifold Block Assembly 110v Complete Internal block assembly that contains all of the solenoids, check valves, switches, accumulator, and oil separator. more info
RA19603 Robinair Scale Assembly
RA19603 Robinair Scale Assembly
Price $244.95

Scale Assembly Sends a signal to the main board for accurate weight readings during charging and recovery (strain gauge style). more info
RA19613 Robinair High Side Gauge ACR2000
RA19613 Robinair High Side Gauge
Discontinued See RA19787

High Side Gauge ACR2000 - Used to monitor the discharge pressure of the vehicle being serviced. Discontinued See RA19787 more info
RA19614  Low Side 134A Gauge With Indicator Lens
RA19614 Low Side 134A Gauge With Indicator Lens
Discontinued See RA19786

RA19614  Low Side 134A Gauge With Indicator Lens ACR2000 - Used to monitor the suction pressure of the vehicle being serviced. Includes mounting hardware and instructions. more info
RA19630 Robinair Skinner Solenoid Coil
RA19630 Robinair Skinner Solenoid Coil
Price $98.95

Skinner Solenoid Coil 115v coil that, when energized, opens solenoid valve. more info
RA19631 Robinair Caster 5" X 2"
RA19631 Robinair Caster 5" X 2"
Discontinued See 569105

Caster 5" X 2" Swivel wheels mounted beneath unit for mobility. more info
RA19632 Robinair Door Latch Kit Sidewinder Cabinet
RA19632 Robinair Door Latch Kit Sidewinder Cabinet
Discontinued See 569103

Door Latch Kit Sidewinder Cabinets Device that contains spring, latch, retainer, and receptacle that holds door closed. more info
RA19672 Robinair Oil Drain Switch 16 - 9 PSI 1/8 Male Pipe
RA19672 Robinair Oil Drain Switch 16 - 9 PSI 1/8 Male Pipe
Price $62.95

Oil Drain Switch, 1/8 Male Pipe thread, Used to control solenoid operation from accumulator to waste oil bottle. Allows unit to dump waste oil recovered from vehicle. NOTE: Opens solenoid at 16psi and closes at 9psi. more info
RA19786 Robinair Low Side Gauge - Generic
RA19786 Robinair Low Side Gauge - Generic
Price $64.95

Low Side Gauge - Generic Used to monitor the suction pressure of the vehicle being serviced. 1/8" female pipe connection back tap. -30hg-0 To 0-125 PSI Range, 350 PSI Retard, PSI, Kpa, Bar Pressure Scales On Face. Includes Mounting Hardware, Loctite sealant, Instructions. more info
RA19787 Robinair High Side Gauge - Generic
RA19787 Robinair High Side Gauge - Generic
Price $64.95

High Side Gauge - Generic Used to monitor the discharge pressure of the vehicle being serviced. 1/8" female pipe connection back tap. 0-500 PSI Range, PSI, Kpa, Bar Pressure Scales On Face. Includes Mounting Hardware and Instructions. more info
RA19795 Robinair Universal Air Purge Device R-134a
RA19795 Robinair Universal Air Purge Device R-134a
Discontinued

Universal Air Purge Device R-134a Used to purge excessive air from refrigerant tank during vacuum or recycle process. more info
RA19798 Robinair Internal Tank Assembly
RA19798 Robinair Internal Tank Assembly
Price $892.95

Internal Tank Assembly Storage tank attached to, or inside of unit, used to store recovered and/or recycled refrigerant. NOTE: New style tank with quickseal fittings. more info
RA19799 Robinair Check Valve Heavy-Duty Update Kit
RA19799 Robinair Check Valve Heavy-Duty Update Kit
Price $64.95

Check Valve Heavy-Duty Update Kit A two port valve, that normally allows fluid (liquid or gas) to flow through it in only one direction. more info
RA19865 Robinair 110 Volt Cubigel Compressor
RA19865 Robinair 115 Volt Cubigel Compressor
Price $531.95

115 Volt Cubigel Compressor (Replaces The RA17110, RA17434, RA19458, & RA19748) Includes all hardware and electrical for a complete install. See additional plumbing retrofit kits noted for older style units. more info
RA19871 Robinair Check Valve Kit (Block Style)
RA19871 Robinair Check Valve Kit (Block Style)
Price $53.95

Check Valve Kit (Block Style Units) Prevents incoming refrigerant from opening the charge solenoid and entering the liquid side of the ISV. more info
RA19888 Robinair Control Module For 34700Z
RA19888 Robinair Control Module For 34700Z
Discontinued

Control Module For 34700z See Also RBTRA19888 User interface for controlling refrigerant recovery, recycling, recharging, and other functions of the unit. more info
RA19889 Robinair Keypad For 34700Z
RA19889 Robinair Keypad For 34700Z
Price $353.95

Keypad For 34700z User input device attached to a circuit board to select start, stop, and program functions of the unit. more info
RA19890 Robinair Blue Lamp
RA19890 Robinair Blue Lamp
Price $63.95

Blue Lamp Indicator light which illuminates during charging, recovering, or vacuuming through low side of the unit. more info
RA19891 Robinair Red Lamp
RA19891 Robinair Red Lamp
Price $63.95

Red Lamp Indicator light that illuminates during charging, recovering, vacuuming, or during leak test through high side of the unit. more info
RA19892 Robinair Pressure Transducer (Old Style Plastic)
RA19892 Robinair Pressure Transducer (Old Style Plastic)
Price $145.95

Inlet Manifold Pressure Transducer Measures the pressure of incoming refrigerant from the A/C system. Pressure readings are then relayed to the control board. Used primarily for leak testing. This transducer is not forward compatible with newer units using metalic body transducers. For those units see 537027 New Style Transducer more info
RA19895 Robinair Air Purge Solenoid Assembly 120V
RA19895 Robinair Air Purge Solenoid Assembly 120V
Discontinued See RA19896

Air Purge Refrigerant Solenoid Assembly (120V) Includes brass body and coil. A normally closed solenoid that, when energized, allows flow. NOTE: RA19819 Solenoid Rebuild Kit more info
RA19896 Robinair Solenoid Assembly 120V
RA19896 Robinair Solenoid Assembly 120V
Price $110.95

Oil Drain Solenoid -Complete Refrigerant Solenoid Assembly (120V Includes brass body and coil. Energized at the end of the recover process to drain oil. NOTE: RA19819 Solenoid Rebuild Kit more info
RA19902 Robinair 3 CFM Vacuum Pump
RA19902 Robinair 3 CFM Vacuum Pump
Discontinued

The VacuMaster Series Vacuum Pumps Provide Power and capacity for a wide range of service applications. High CFM rating for fast, thorough evacuation and two-stage rotary vane design cleans the system more thoroughly than a single-stage pump. more info
RA19914 Robinair Oil Injector Cap & Bulkhead Kit (20 Pack)
RA19914 Robinair Oil Injector Cap & Bulkhead Kit (20 Pack)
Price $63.95

Repair kit with Oil Injector Caps (20) and bulkhead fitting (10) Used to attach the oil injector bottle to the unit, allowing user to inject oil into vehicle being serviced. See 523148 more info
RA19950 Robinair Reservoir Cover For 3 CFM Pump
RA19950 Robinair Reservoir Cover For 3 CFM Pump
Price $112.95

Reservoir Head Assembly For 3 CFM Station Pump. Used to repair leaking or broken end bell on RA19902 3CFM vacuum pumps. more info
RA19997 Robinair Oil Inject Solenoid 120v
RA19997 Robinair Oil Inject Solenoid 120v
Price $271.95

Oil Inject Solenoid 120v. Normally closed Solenoid Rebuild Kit. 115 Volt Coil, stem and o-rings. Includes brass base for older style units and should be disassembled for universal applications. Always check for proper fittment on your specific unit. more info
RA19998 Robinair Inlet Solenoid 120v
RA19998 Robinair Inlet Solenoid 120v
Price $252.95

Inlet Solenoid 120v. Normally closed Solenoid Rebuild Kit. 115 Volt Coil, stem and o-rings. Includes brass base for older style units and should be disassembled for universal applications. Always check for proper fittment on your specific unit. more info
RA19999 Robinair Inlet Manifold Block 34700z
RA19999 Robinair Inlet Manifold Block 34700Z
Discontinued See RA20050

Internal block assembly that contains oil inject solenoid, high and low side inlet solenoids. Opens a path between the A/C system and the recovery unit for refrigerant flow, vacuum, and oil injection. (Transducer sold separately). See RA19998 For Inlet Solenoids and RA19997 For Oil inject Solenoid. Discontinued See RA20050 more info
RA20005 Robinair 3/8" High Pressure Tube 18" (each)
RA20005 Robinair 3/8" High Pressure Tube 18" (each)
Price $10.46

3/8" High Pressure Tube 18" (each). Always use new tubing and 20006 ferrules when installing a new compressor. more info
RA20006 Robinair 3/8" Ferrule And Nut (each)
RA20006 Robinair 3/8" Ferrule And Nut (each)
Price $4.68

RA20006 Robinair 3/8" Ferrule And Nut (each) more info
RA20008 Robinair Ferrule & Nut 1/8" (Sold Each)
RA20008 Robinair 1/8" Ferrule & Nut (Sold Each)
Price $4.68

Ferrule & Nut 1/8" (Sold Each) more info
RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal
RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal
Price $10.95

RA20019 Robinair Vacumaster Brass Oil Fill Plug & Seal more info
RA20030 Robinair 115v. Solenoid & Coil Assembly
RA20030 Robinair 115v. Solenoid & Coil Assembly
Price $71.95

115v. Direct acting normally closed Solenoid & Coil Assembly. Opens when energized, Closed when de-energized. Includes Coil. more info
RA20050 Robinair Inlet Manifold 34700Z
RA20050 Robinair Inlet Manifold 34700Z
Price $495.95

Internal block assembly that contains oil inject solenoid, high and low side inlet solenoids. Opens a path between the A/C system and the recovery unit for refrigerant flow, vacuum, and oil injection. (Transducer sold separately) See RA20030 for individual solenoids. more info
RBTRA19888 Robinair Rebuilt Control Module 34700z
RBTRA19888 Robinair Rebuilt Control Module 34700Z
Discontinued

Rebuilt Control Module 34700z User interface for controlling refrigerant recovery, recycling, recharging, and other functions of the unit. more info


Century Tool & Equipment
4013 S. Old Hwy 94
St. Peters MO 63304
 About Us
 Let Us Repair It
 Privacy Policy
 Send Us Feedback
