You are here: Home > Plasma Cutter Parts > 92026 Schumacher Plasma Cutter

92026 Schumacher Plasma Torch Parts

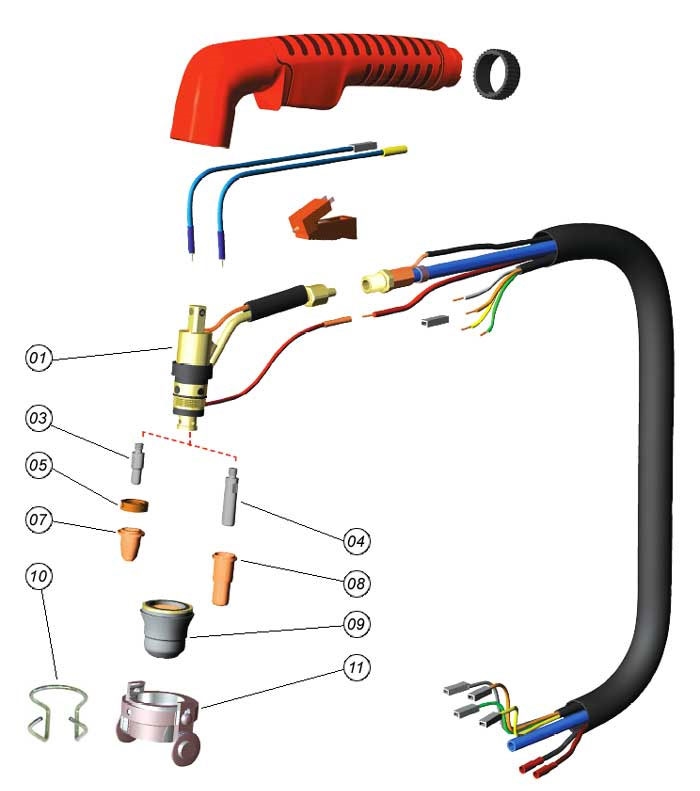

92026 Replacement Parts List
Item No. Part # Description
- 92500 Torch Assembly
1 9807600519 Torch Body
3 92503 Electrode Standard
4 92504 Electrode Extended (Optional)
5 92505 Air Diffuser
7 92501 Nozzle Standard
8 92502 Nozzle Extended (Optional)
9 92506 Nozzle Cap
10 92507 Wire Standoff
11 92508 Torch Roller Standoff (Optional)
Sort By:
Page of 1
098-142-000 Synthetic Lubricant 1/4oz 4424 098-142-000 Synthetic Lubricant 1/4oz 4424

Synthetic Lubricant for plasma torch O-rings

Price $19.18
92500 Schumacher Plasma Torch 18' With Safety 92500 Schumacher Plasma Torch 18' With Safety

92500 Schumacher Plasma Torch 18' cable. 3 wire connection. Includes Torch, nozzle, tip, swirl ring, electrode and a flow meter.

Price $276.50
92501 Schumacher Nozzle Plasma 20-30 Amp 3 Pack 92501 Schumacher Nozzle Plasma 20-30 Amp 3 Pack

Schumacher Style 20-30 Amp Straight Plasma Cutting Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating.

Price $12.85 3 Pack
92502 Schumacher Nozzle Plasma Extended 20-30 Amp 3 Pack 92502 Schumacher Nozzle Plasma Extended 20-30 Amp 3 Pack

Schumacher Style 20-30 Amp Straight Plasma Cutting Extended Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating.

Price $14.85 3 Pack
92503 Schumacher Electrode Standard Plasma 20-30 Amp 92503 Schumacher Electrode Standard Plasma 20-30 Amp 3 Pack

92503 Schumacher Style Electrode Standard Plasma 20-30 Amp. Plasma Cutting Electrodes initiate the high intensity cutting arc and provide the contact necessary for arc maintenance. Electrodes are subject to wear, causing arc to weaken or be intermittent.

Price $13.85 3 Pack
92504 Schumacher Electrode Extended Plasma 20-30 Amp 3 Pack 92504 Schumacher Electrode Extended Plasma 20-30 Amp 3 Pack

92504 Schumacher Style Electrode Standard Plasma 20-30 Amp. Plasma Cutting Electrodes initiate the high intensity cutting arc and provide the contact necessary for arc maintenance. Electrodes are subject to wear, causing arc to weaken or be intermittent.

Price $18.45 3 Pack
92505 Schumacher Air Diffuser Plasma 20 30 Amp 92505 Schumacher Air Diffuser Plasma 20 30 Amp

Air Diffuser imparts a swirling current to stabilize the arc. Keep your plasma cutter working at peak performance with these replacement parts.

Price $12.15 Each
92506 Schumacher Nozzle Cap Plasma 92026 92035 92506 Schumacher Nozzle Cap Plasma 92026 92035

92506 Schumacher Nozzle Cap Plasma 92026 92035. Nozzle Caps direct cooling air flow to the nozzle and workpiece.

Price $24.95 Each
92507 Schumacher Stand-Off 92026 92035 92507 Schumacher Stand-Off 92026 92035

92507 Schumacher Stand-Off for 92026 92035 plasma cutters keeps nozzle clear of dirt, paint and corrosion and provides optimum cutting distance for clean cuts. Also simplifies cutting with straight edge or pattern. Replaces earlier wire type stand off.

Price $17.65 Each
9807600519 Schumacher Torch Head Plasma 92026 92035 9807600519 Schumacher Torch Head Plasma 92026 92035

Torch Head For Plasma 92026 92035. 2 Wire Head with O-ring. Includes tubing clamp for easy assembly.

Price $184.95 Each
9807600520 Schumacher Plasma Torch Handle Assembly With Interlocks 92026 92035 9807600520 Schumacher Plasma Torch Handle Assembly With Interlocks 92026 92035

9807600520 Schumacher Plasma Torch Handle Assembly With Interlocks 92026 92035

Price $42.85 Each
9807600522 Schumacher Plasma Switch / Trigger Assembly 92026 92035 9807600522 Schumacher Plasma Switch / Trigger Assembly 92026 92035

Switch / Trigger. See 9807600520 for Torch Handle Assembly With Interlocks

Price $12.15 Each


92026 Schumacher Plasma Cutter
