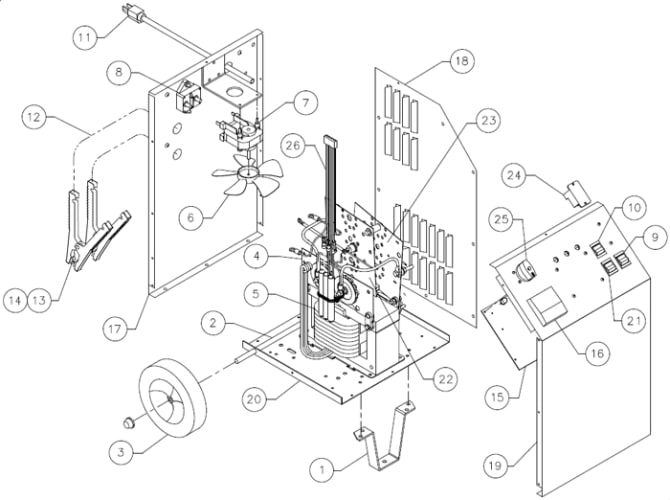

ESS6011 Associated Battery Charger Parts List (Old Style)
Dated 12/01/2019 & Earlier
| Item | Description | Part No. |
| 1 | FrontLeg | 605671 |
| 2 | Axle w/nuts | 610052 |
| 3 | Wheelw/nuts (2) | 611157 |
| 4 | Rectifier (-) | 611231 |
| 5 | Transformer | 611232 |
| 6 | Fan Blade | 610189 |
| 7 | FanMotor w/blade | 610190 |
| 8 | DC Circuit Breaker | 610536 |
| 9 | Switch (Power) | 610291 |
| 10 | Switch (Battery Type)
| 611167 |
| 11 | ACCord | 610696 |
| 12 | DC Cable Set | 611219 |
| 13 | Clamps(1 pair w/jaws) | 6202 |
| 14 | Jaw Kit (repairs 1 clamp) | 610970 |
| 15 | PCB | 611239 |
| 16 | Ammeter | 605204 |
| 17 | BackPanel | 610977 |
| 18 | Right Side Panel | 611032 |
| 19 | FrontPanel | 611233 |
| 20 | Base Panel | 610054 |
| 21 | Switch (Override) | 610263 |
22
| Rectifier (#1)
| 611234
|
23
| Rectifier (#2) | 611235
|
24

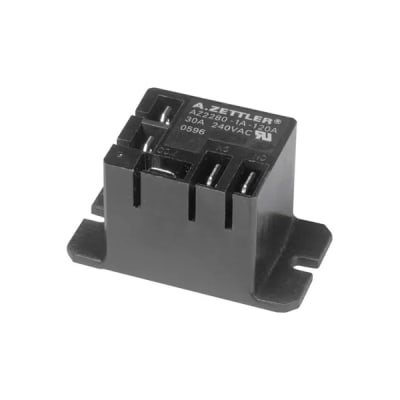

| Relay | 611236 |
25

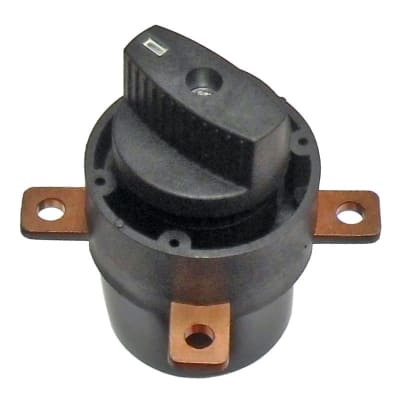

| Rotary Switch | 900127 |
26
| Harness 7 Pin Housing | 611237 |
|
|
|
![]()
