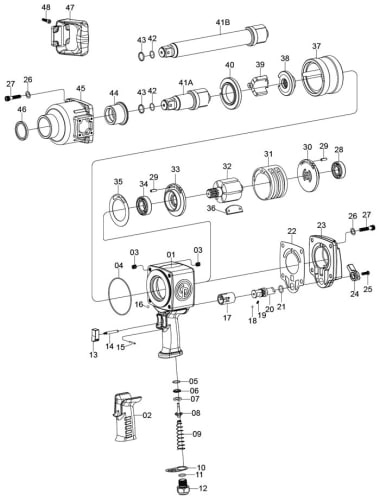

CP7776 1" Impact Wrench Repair Parts


Index
No.
Part No.
Description
No.
Req'd
31
8950221117
Cylinder
1
32
8950221116
Rotor
1
36
8950221442
Rotor Blade Set
6
37
8950240207
Hammer Cage
1
38
8950240208
Cam
1
39
8950240209
Hammer
1
40
8950240210
Anvil Spacer
1
-
8940170031
Clutch Housing Bumper (not shown)
1
-
8940172013
Handle Frame Complete
2

Rubber Grip
1
10

Exhaust Deflector
1
-
8940172015
Valve Kit
5

O-Ring
1
6

Washer
1
7

Throttle Valve Seat
1
8

Throttle Valve
1
9

Spring
1
-
8940172016 Inlet Kit
11

O-Ring
1
12

Air Inlet
1
-
8940172017
Reverse Valve Kit
18

Steel Ball
1
19

Steel Ball Spring
1
20

Reverse Valve
1
21

O-Ring
1
24

Reverse Valve Knob
1
25

Screw
1
-
8940172018
Trigger Kit
13

Trigger
1
14

Trigger Pin
1
15

Spring Pin
1
-
8940172019
Backhead Kit
22

Backhead Gasket
1
23

Backhead
1
26

Washer
4
27

Screw
4
-
8940172020
Motor Housing Complete
1

Motor Housing
1
3

Heli-Coil
8
4

O-Ring
1
16

Steel Ball
4
17

Bushing
1
-
8950221443 Rear End Plate Kit
28

Ball Bearing
1
29

Spring Pin
1
30

Rear End Plate
1
-
8950221446 Front End Plate Kit
29

Spring Pin
1
33

Front End Plate
1
34

Ball Bearing
1
35

End Plate Gasket
1
-
8940169478 Hammer Case Complete
26

Washer
4
27

Screw
4
44

Bushing
1
45

Hammer Case Assembly (Incl: 44)
1
46

Oil Seal
1
-
8950240466 Anvil Kit
41A

Standard Anvil (for CP7776)
1
F1
8950251282 Anvil Collar Kit (5 set)
42

O-Ring
5
43

Socket Retainer
5
-
8950240467 Anvil Kit Extended
41B

6" Extended Anvil (for CP7776-6)
1
F1
8950251282 Anvil Collar Kit (5 set)

42

O-Ring 5
43

Socket Retainer
5
-
8940169845 Handle Complete
47

Side Spade Handle
1
48

Screw
4
-
8950000141 Bearing Kit
28

Ball Bearing 1
34

Ball Bearing
1
-
8940172022
Gasket Kit
22

Backhead Gasket
1
35

End Plate Gasket 1
46

Oil Seal
1
-
8940172024
Small Parts Kit
10

Exhaust Deflector
1
15

Spring Pin
1
19

Steel Ball Spring
1
29

Spring Pin
2
44

Bushing
1
-
8940172027 Tune-Up Kit
4

O-Ring 1
5

O-Ring 1
11

O-Ring 1
18

Steel Ball
1
21

O-Ring
1
22

Backhead Gasket 1
35

End Plate Gasket 1
36
8950221442
Rotor Blade Set
6
-
8940172034
Screw Kit
25

Screw 1
26

Washer
8
27

Screw 8
48

Screw 4
