CP7500 Angle Grinder Repair Parts


Index
No.
Part No. Description No. Req'd
1 8940162727 Housing 1
2 CA144787 Spring Pin 1
3 8940162728 Valve Body 1
4 CA144788 Lever 1
5 8940162729 Valve Stem 1
6 8940162730 Adjust Valve 1
7 KF131709 O-Ring 1
8 8940162731 Spring 1
9 8940162106 O-Ring 1
10 CA158057 O-Ring 1
11 8940162732 Throttle Valve Plug 1
12 CA158069 Spacet 1
13 8940162733 Ball Bearing 2
14 8940162734 Rear End Plate 1
15 8940162735 Rotor 1
16 8940162736 Rotor Blade (4) 1
17 8940162737 Spring Pin 1
18 8940162738 Cylinder 1
19 8940162739 Front End Plate 1
20 CA144800 Ball Bearing 2
21 8940162740 Lock Nut 1
22 8940162741 Pinion Gear 1
23 8940162742 Lock Ring 1
24 8940162743 Apindle 1
25 8940162744 Screw 3
26 8940162745 Cap 1
27 8940162746 Screw 1
28 8940162747 Key 2
29 8940162748 Exhaust Coiver 1
30 8940162749 Bevel Gear 1
31 8940162750 Lock Nut 1
32 8940162751 Screw 1
33 8940162752 Packing 1
34 8940162753 Bearing Cover 1
35 8940162754 Seal 1
36 8940162755 Spring 1
37 8940162756 Lever Bar 1
38 8940162757 Pin 1
39 8940162758 Rubber Grip 1
40 8940162759 Spanner 1
41 8940162768 Cutting Wheel 60 Grit 1
- 8940162769 Cutting Wheel 80 Grit 1
- 8940162770 Cutting Wheel 120 Grit 1
42 8940162763 Pin Wrench 1
43 8940162764 Disc Cover 1
44 8940162765 Nut 1
45 8940162787 Service Tool Kit 1
- 8940162768 Cutting Wheel 60 Grit
- 8940162769 Cutting Wheel 80 Grit
- 8940162770 Cutting Wheel 120 Grit
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940162727 Chicago Pneumatic Housing 8940162727 Chicago Pneumatic Housing

8940162727 Chicago Pneumatic Housing

Price $44.20
8940162728 Chicago Pneumatic Valve Body 8940162728 Chicago Pneumatic Valve Body

8940162728 Chicago Pneumatic Valve Body

Discontinued
8940162729 Chicago Pneumatic Valve Stem 8940162729 Chicago Pneumatic Valve Stem

8940162729 Chicago Pneumatic Valve Stem

Price $5.39
8940162730 Chicago Pneumatic Adjust Valve 8940162730 Chicago Pneumatic Adjust Valve

8940162730 Chicago Pneumatic Adjust Valve

Price $3.90
8940162733 Chicago Pneumatic Ball Bearing 8940162733 Chicago Pneumatic Ball Bearing

8940162733 Chicago Pneumatic Ball Bearing

Price $15.82
8940162734 Chicago Pneumatic Rear End Plate 8940162734 Chicago Pneumatic Rear End Plate

8940162734 Chicago Pneumatic Rear End Plate

Price $7.14
8940162735 Chicago Pneumatic Rotor 8940162735 Chicago Pneumatic Rotor

8940162735 Chicago Pneumatic Rotor

Discontinued
8940162736 Chicago Pneumatic Rotor Blade Set (4) 8940162736 Chicago Pneumatic Rotor Blade Set (4)

8940162736 Chicago Pneumatic Rotor Blade Set (4)

Price $12.63
8940162737 Chicago Pneumatic Spring Pin 8940162737 Chicago Pneumatic Spring Pin

8940162737 Chicago Pneumatic Spring Pin

Price $3.90
8940162738 Chicago Pneumatic Cylinder 8940162738 Chicago Pneumatic Cylinder

8940162738 Chicago Pneumatic Cylinder

Price $53.06
8940162739 Chicago Pneumatic Front End Plate 8940162739 Chicago Pneumatic Front End Plate

8940162739 Chicago Pneumatic Front End Plate

Price $7.17
8940162741 Chicago Pneumatic Pinion Gear 8940162741 Chicago Pneumatic Pinion Gear

8940162741 Chicago Pneumatic Pinion Gear

Price $22.14
8940162743 Chicago Pneumatic Spindle 8940162743 Chicago Pneumatic Spindle

8940162743 Chicago Pneumatic Spindle

Discontinued
8940162744 Chicago Pneumatic Screw 8940162744 Chicago Pneumatic Screw

8940162744 Chicago Pneumatic Screw

Discontinued
8940162747 Chicago Pneumatic Key 8940162747 Chicago Pneumatic Key

8940162747 Chicago Pneumatic Key

Price $3.88
8940162748 Chicago Pneumatic Exhaust Cover 8940162748 Chicago Pneumatic Exhaust Cover

8940162748 Chicago Pneumatic Exhaust Cover

Price $14.23
8940162749 Chicago Pneumatic Bevel Gear 8940162749 Chicago Pneumatic Bevel Gear

8940162749 Chicago Pneumatic Bevel Gear

Price $15.82
8940162750 Chicago Pneumatic Lock Nut 8940162750 Chicago Pneumatic Lock Nut

8940162750 Chicago Pneumatic Lock Nut

Price $17.69
8940162751 Chicago Pneumatic Screw 8940162751 Chicago Pneumatic Screw

8940162751 Chicago Pneumatic Screw

Price $3.90
8940162752 Chicago Pneumatic Packing 8940162752 Chicago Pneumatic Packing

8940162752 Chicago Pneumatic Packing

Price $3.90
8940162753 Chicago Pneumatic Bearing Cover 8940162753 Chicago Pneumatic Bearing Cover

8940162753 Chicago Pneumatic Bearing Cover

Price $3.90
8940162754 Chicago Pneumatic Seal 8940162754 Chicago Pneumatic Seal

8940162754 Chicago Pneumatic Seal

Price $3.88
8940162755 Chicago Pneumatic Spring 8940162755 Chicago Pneumatic Spring

8940162755 Chicago Pneumatic Spring

Discontinued
8940162756 Chicago Pneumatic Lever Bar 8940162756 Chicago Pneumatic Lever Bar

8940162756 Chicago Pneumatic Lever Bar

Discontinued
8940162757 Chicago Pneumatic Spring Pin 8940162757 Chicago Pneumatic Spring Pin

8940162757 Chicago Pneumatic Spring Pin

Discontinued
8940162758 Chicago Pneumatic Rubber Grip 8940162758 Chicago Pneumatic Rubber Grip

8940162758 Chicago Pneumatic Rubber Grip

Price $8.71
8940162759 Chicago Pneumatic Spanner 8940162759 Chicago Pneumatic Spanner

8940162759 Chicago Pneumatic Spanner

Price $5.39
8940162763 Chicago Pneumatic Pin Wrench 8940162763 Chicago Pneumatic Pin Wrench

8940162763 Chicago Pneumatic Pin Wrench

Discontinued
8940162764 Chicago Pneumatic Wheel Guard 8940162764 Chicago Pneumatic Wheel Guard

8940162764 Chicago Pneumatic Wheel Guard

Price $57.50
8940162765 Chicago Pneumatic Nut 8940162765 Chicago Pneumatic Nut

8940162765 Chicago Pneumatic Nut

Price $5.39
8940162768 Chicago Pneumatic2" Cutting Wheel #60 8940162768 Chicago Pneumatic2" Cutting Wheel #60

8940162768 Chicago Pneumatic2" Cutting Wheel #60

Price $22.72
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144788 Chicago Pneumatic Lever-Throttle CA144788 Chicago Pneumatic Lever-Throttle

CA144788 Chicago Pneumatic Lever-Throttle

Price $8.71
CA144800 Chicago Pneumatic Bearing-Ball CA144800 Chicago Pneumatic Bearing-Ball

CA144800 Chicago Pneumatic Bearing-Ball

Price $26.42
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA158069 Chicago Pneumatic Spacer-Rotor CA158069 Chicago Pneumatic Spacer-Rotor

CA158069 Chicago Pneumatic Spacer-Rotor

Discontinued

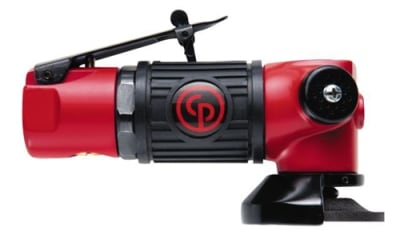

CP7500D Chicago Pneumatic Mini Angle Grinder/Cut Off Tool CP7500D Chicago Pneumatic Mini Angle Grinder/Cut Off Tool

CP7500D Mini Angle Grinder/Cut Off Tool - This mini angle grinder has a rubber handle, lock off switch, 180 degree safety guard, 2" cutting wheel capacity and the exhaust is vented out of the side. This small tool is versatile and ideal for confined space applications.

Price $206.35
