9090 Associated Battery Charger Parts List


No. Part # Description
1 N/A "" Upper Metal Cover
2 N/A "U" Metal Base
3 900112 Handle / Cable Wrap
4 N/A Cap, Small Switch
5 900111 Ammeter
6 900094 Power Cord with Strain Relief
7 & 8 900095 Clamps with cable and Strain Relief
9 602040 Red Clamp (+)
10 602040 Black Clamp (-)
11 900093 Selector Slide Switch
12 900092 Circuit Breaker
13 N/A Rectifier Assembly
14 N/A Transformer
15 900110 PCB Assembly

The only items available for this unit are shown below

Sort By:
Page of 1
602040 QuickCable Heavy Duty Charging Clips Insulated 75 Amp (Pair) 602040 QuickCable Heavy Duty Charging Clips Insulated 75 Amp (Pair)

75 Amp Heavy Duty Charging Clips Red and Black (Pair) - Battery Clips are designed for use with battery chargers, tenders, memory minders, and other general 12 volt accessories. They are rated for 12 volt, 75 amp applications.  Handles have color identification for positive and negative.

Price $4.05
900092 Associated 12 Volt 35 Amp Circuit Breaker 900092 Associated 12 Volt 35 Amp Circuit Breaker

900092 Associated 12 Volt 35 Amp Circuit Breaker

Price $15.68
900093 Associated 4 Position Switch 10 Pin With Jumper Pins at 2 & 9 900093 Associated 4 Position Switch 10 Pin With Jumper Pins at 2 & 9

900093 4 Position Switch 10 Pin With Jumper Pins at 2 & 9, 13 amp @ 125 volt AC

Price $13.70
900094 Associated Power Cord with Strain Relief 900094 Associated Power Cord with Strain Relief

900094 18 gauge 3 conductor power cord with molded strain relief 1/4" Quick disconnect terminals and ring terminal for ground.

Price $21.95
900095 Associated Battery Charger Clamps Cables Red & Black Set. 7ft Long 900095 Associated Battery Charger Clamps Cables Red & Black Set. 7ft Long

900095 Battery Charger Clamps Cables Red & Black Set. 7ft Long, 10ga, 1/4" quick disconnects. Copper Jaws, 10ga wire, Includes Strain Relief.

Price $32.95
900110 Associated Circuit Board 9090 900110 Associated Circuit Board 9090

900110 Associated Circuit Board 9090

Price $72.49

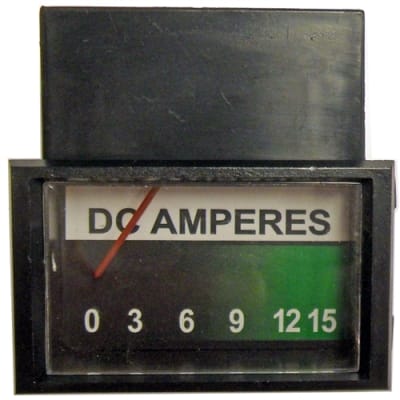

900111 Associated Ammeter 0-15 Amp 9090 900111 Associated Ammeter 0-15 Amp 9090

900111 Associated Ammeter 0-15 Amp 9090

Discontinued
900112 Associated Handle 90XX All Series Chargers 900112 Associated Handle 90XX All Series Chargers

900112 Associated Handle 90XX All Series Chargers

Price $6.44
