SE-2352 Schumacher Battery Charger Parts List



Schumacher SE-2352 Repair Parts
Part No.
Description
Qty
0090026124
115 Volt Power Cord
1
0099000062
Fan Blade
1
0099000063
Fan Motor Open Frame 115 Volt
1
0099000066
Battery Charger Axle 3/8" Diameter
1
0099000080
Wheel 6" Plastic for 3/8" Axle
1
0499000050
Rocker Switch 2 Position 3 Terminal On-On
1
0499000052
3 Position Rocker Selector Switch On-Off-On
1
1199003352
Metal Foot
1
2199700006
Axle End Cap 0.375" Diameter Acle (Pair)

2299000649
Heatsink Rectifier Assembly
2299001552
Heatsink Rectifier Assembly
2299001651
Heatsink Rectifier Assembly

3100100032
Diode Anode on Lead 90 Amp

3199100028A
75 Amp 400 Volt Positive Diode (Set of 4)

3599000136
Battery Charger Handle
3599000662
Battery Charger Handle

3899001964
Negative Cable & Clamp

3899001980
Positive Cable & Clamp

3999000108
Circuit Breaker 32 Volt DC 100 Amp

5399100082
Ammeter Horizontal 0-200 Amp Range

5399100141
Ammeter Horizontal 0-200 Amp

8019K96
Single Male to Double Male Splitter Piggyback Spade Terminal (Pair)



Schumacher SE-2254, SE-2352, SE-3000, SE-3612, SE-4020, SE-4022, SE-5025, SE-6030 & SE-8050 Troubleshooting Guide
PROBLEM POSSIBLE CAUSE SOLUTION
No reading on the ammeter. Charger is not plugged in. Plug the charger into an A.C. outlet.
No power at the receptacle. Check for open fuse or circuit breaker supplying A.C. outlet.
Clips are not making a good connection to the battery. Check for poor connection to battery and frame. Make sure connection points are clean. Rock clips back and forth for a better connection.
Connections are reversed. Unplug the charger and reverse the clips.
Battery is defective (will not accept a charge). Have battery checked.
2 amp charge rate is being used. Ammeter may show no activity at the 2A charge rate.
Ammeter reading stays high. Battery is severely discharged. Continue charging battery for two more hours. If problem continues have the battery checked.
Wrong battery voltage. Verify the voltage settings or output ratings on the charger are correct.
Ammeter reads less than selected charge rate when charging a discharged battery. Extension cord is too long or wire gauge is too small. Use a shorter or heavier gauge extension cord.
Weak cell or sulfated plate in battery. A sulfated battery will eventually take a normal charge if left connected. If the battery will not take a charge, have it checked.
Battery is only partially discharged. Continue to charge the battery.
The charger is making an audible clicking sound. Circuit breaker is cycling. The settings may be wrong. Check the charger settings.
Battery is defective. Have the battery checked.
Shorted battery cables or clips. Circuit breaker cycles when current draw is too high. Check for shorted cables or clips and replace if necessary.
Severely discharged battery, but otherwise it is a good battery. The battery may not want to accept a charge due to a run-down state. Allow charging to continue until battery has a chance to recover sufficiently to take a charge. If more than 20 minutes, stop charging and have the battery checked.
Reverse connections at battery. Shut the charger off and correct the lead connections.
Charger makes a loud buzz or hum. Transformer laminations vibrate (buzz). No problem; this is a normal condition.
Shorted Diode Assembly or Output Rectifier Assembly (hum). Have charger checked by a qualified technician.
Short or no start cycle when cranking engine. Drawing more than the engine start rate. Crank time varies with the amount of current drawn. If cranking draws more than the engine start rate, crank time may be less than 3 seconds.
Failure to wait 3 minutes (180 seconds) between cranks. Wait 3 minutes of rest time before the next crank.
Clips are not making a good connection. Check for poor connection at battery and frame.
AC cord and/or extension cord is loose. Check power cord and extension cord for loose fitting plug.
No power at receptacle. Check for open fuse or circuit breaker supplying A.C. outlet.
The charger may be overheated. The thermal protector may have tripped and needs a little longer to reset. Make sure the charger vents are not blocked. Wait and try again.
Battery may be severely discharged. On a severely discharged battery, charge for 10 to 15 minutes in the manual charge rate to help assist in cranking.
Charger will not turn on when properly connected. A.C. outlet is dead. Check for open fuse or circuit breaker supplying A.C. outlet.
Poor electrical connection. Check power cord and extension cord for loose fitting plug.
The battery is connected and the charger is on, but is not charging. Clips are not making a good connection. Check for poor connection at battery and frame. Make sure connecting points are clean. Rock clips back and forth for a better connection.
The measured current is much lower than what was selected. The charger reached the maximum voltage and is reducing the current. No problem; this is a normal condition.
Schumacher User Manual Link


When a charging problem arises, make certain that the battery is capable of accepting a normal charge. Double check all connections, AC outlet for a full 120-volts, charger clips for correct polarity and the quality of the connections from the cables to the clips and from the clips to the battery system. The clips must be clean.

When a battery is very cold, partially charged or sulfated, it will not draw the full rated amperes from the charger. It is both dangerous and damaging to a battery to force higher amperage into it than it can effectively use in recharging.

Sort By:
Page of 1
0090026124 Schumacher Power Cord
0090026124 Schumacher 115 Volt Power Cord
Discontinued

Power Cord 115 Volt 3 Prong. Termination Specs, 1/4" Quick Connect (Black), Ring Terminal (Ground), 1/4" Quick Connect (White). more info
0090026125 Schumacher 115 Volt Power Cord
0090026125 Schumacher 16/3 84" 115 Volt Power Cord
Discontinued

Power Cord 115 Volt 3 Prong. Termination Specs 16/3 84", 1/4" Quick Connect (Black), Ring Terminal (Ground), 1/4" Quick Connect (White) with Strain Relief. When Discontinued See 0090026136 more info
0090026136 Schumacher Power Cord 16/3 90"
0090026136 Schumacher Power Cord 16/3 90"
Discontinued

0090026136 Schumacher Power Cord 115 Volt 3 Prong. Termination Specs, 1/4" Quick Connect (Black), Ring Terminal (Ground), 1/4" Quick Connect (White) with Strain Relief. more info
0099000062 Schumacher 6" CW Fan Blade
0099000062 Schumacher 6" CW Fan Blade
Discontinued See 316-009-000

0099000062 Schumacher 6" CW Fan Blade. more info
0099000063 Schumacher Fan Motor Open Frame 115 Volt
0099000063 Schumacher Fan Motor Open Frame 115 Volt
Discontinued See 216-041-666

Fan Motor Open Frame 115 Volt more info
0099000066 Schumacher Battery Charger Axle 3/8 Dia.
0099000066 Schumacher Battery Charger Axle 3/8 Dia.
Price $3.76

0099000066 Schumacher Battery Charger Axle 3/8 Dia.15-3/8" Long. more info
0099000080 Wheel 6" Plastic For 3/8 Axle
0099000080 Schumacher Wheel 6" Plastic For 3/8 Axle
Discontinued See 2299001067

0099000080 Wheel 6" Plastic For 3/8 Axle more info
0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On
0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On
Discontinued See 246-176-666

0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On more info
0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals.
0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals.
Price $12.45

0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals. more info
1199003352 Schumacher Foot, Metal
1199003352 Schumacher Foot, Metal
Discontinued

1199003352 Schumacher Foot, Metal, no hardware included. more info
214-009-666 Rectifier Diode 70 Amp (541101-039) SDH70N02P
214-009-666 Rectifier Diode 70 Amp (541101-039)
Price $21.95

214-009-666 Rectifier Diode 70 Amp (541101-039) SDH70N02P more info
2199700006 Axle End Cap .375 Dia Axle (Pair)
2199700006 Schumacher Axle End Cap .375 Dia Axle (Pair)
Price $4.50

Axle End Cap Fits .375 (3/8") Diameter Axle, Sold as a Pair, Can be used on any 3/8" Axle to secure wheels. more info
2299000649 Schumacher Heat Sink
2299000649 Schumacher Heatsink Rectifier Assembly
Discontinued

2299000649 Schumacher Heat Sink. Replaces older style 8 diode units. Incorporates a thicker heat sink for better heat dissipation. This item has been discontinued, we do not suggest replacing it with the newer style due to mounting and electrical configuration issues. more info
2299001067 Schumacher Battery Charger Wheels - Handle - Hardware Kit
2299001067 Schumacher Battery Charger Wheels - Handle - Hardware Kit
Discontinued

Battery Charger Wheels - Handle - Hardware Kit For SE3000, SE6030. Includes 3599000210 Handle, 0099000080 Wheels, 0099000123 Plastic Foot, 0099000066 Axle, 2299001076 Misc Parts Bag (screws etc..) more info
2299001552 Schumacher Heatsink Rectifier Assembly
2299001552 Schumacher Heatsink Rectifier Assembly
Discontinued

2299001552 Schumacher Heatsink Rectifier Assembly more info
2299001587 Schumacher Heatsink Rectifier Assembly
2299001587 Schumacher Heatsink Rectifier Assembly
Discontinued See 2299001651

Heatsink Rectifier Assembly, requires no soldering to install. Includes 9" leads. Used on newer style units. Heavy Duty design for greater reliability. 1/4" spade terminal leads make installation a snap. more info
2299001651 Schumacher Heatsink Rectifier Assembly
2299001651 Schumacher Heatsink Rectifier Assembly
Discontinued

Heatsink Rectifier Assembly, requires no soldering to install. Includes 9" leads. Used on newer style units. Heavy Duty design for greater reliability. 1/4" spade terminal leads make installation a snap. *(fan speed control board sold separately) more info
246-176-666 Switch 2 Position Rocker 16 Amp SPDT
246-176-666 Switch 2 Position Rocker 16 Amp SPDT
Price $12.46

SPDT Switch 16 amp Rating Snap-in mount no tools required to install, 1/4 Spade terminals. Original OEM Part Every Time more info
246-177-666 Switch 3 Position Rocker SPDT On-Off-On
246-177-666 Switch 3 Position Rocker SPDT On-Off-On
Price $13.58

246-177-666 Switch 3 Position Rocker SPDT On-Off-On 16 amp 1/4 spade terminals. more info
316-009-000 Fan Blade 6" 4 Blade CW
316-009-000 Fan Blade 6" 4 Blade CW
Price $12.85

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie more info
3199100028A 75 Amp 400 Volt Positive Diode (Anode On Lead)
3199100028A Schumacher 75 Amp 400 Volt Positive Diode (Set Of 4)
Discontinued

3199100028A 75 Amp 400 Volt Positive Diode (Anode On Lead). Press in diode, used in a wide array of applications. Once installed in the heat-sink these may require soldering to install onto transformer taps.
Use caution when replacing diodes always verify polarity or damage to equipment or self may result. Century Tool & Equipment assumes no responsibility for loss, damage or personal injury due to the miss-application of any electrical component. Purchase of this item agrees to said statement. This item should only be installed by a qualified and experienced electrician.
more info
3599000136 Schumacher Battery Charger Handle
3599000136 Schumacher Battery Charger Handle
Discontinued

3599000136 Schumacher Battery Charger Handle more info
3599000662 Schumacher Battery Charger Handle Round Black Steel
3599000662 Schumacher Battery Charger Handle Round Black Steel
Discontinued

3599000662 Schumacher Battery Charger Handle Round Black Steel. Replaces handle part number 3599000136. more info
3899001964 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"
3899001964 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"
Discontinued

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 80" long with strain relief on cable. more info
3899001980 Schumacher Output Cable And Clamp Red Positive 6 AWG 82"
3899001980 Schumacher Output Cable And Clamp Red Positive 6 AWG 82"
Discontinued

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 80" long with strain relief on cable. more info
3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp
3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp
Discontinued

3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp. When ordering, it may be necessary to purchase a pair of the 5199000406 screws if replacing and older circuit breaker for retrofit. more info
51-288 115 Volt Fan Motor With Fan Blade & Mount
51-288 115 Volt Fan Motor With Fan Blade & Mount
Price $55.50

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it. more info
5399100082 Schumacher Ammeter Horizontal 0-200 Amp Range
5399100082 Schumacher Ammeter Horizontal 0-200 Amp Range
Discontinued

Ammeter Horizontal 0-200 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face. 0-200 Amp range and wire through induction pick-up for greater accuracy. more info

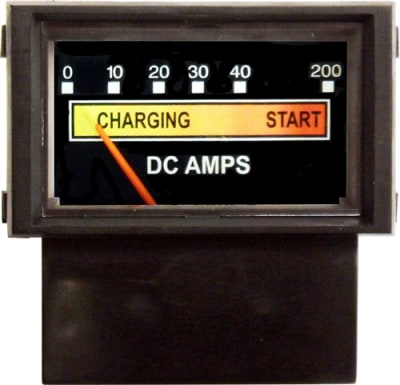

5399100141 Schumacher Ammeter Horizontal 0-200 Amp
5399100141 Schumacher Ammeter Horizontal 0-200 Amp
Discontinued See 5399100088

Ammeter Horizontal 0-200 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face. 0-40 Amp range For Charge 0-200 Amp Start. Wire through induction pick-up for greater accuracy. more info


*Variations of models due to production changes and parts availability are not our responsibility
*No refunds on electrical components
*Service should be performed only by a qualified technician
*Please read all supporting documentation and safety instructions
