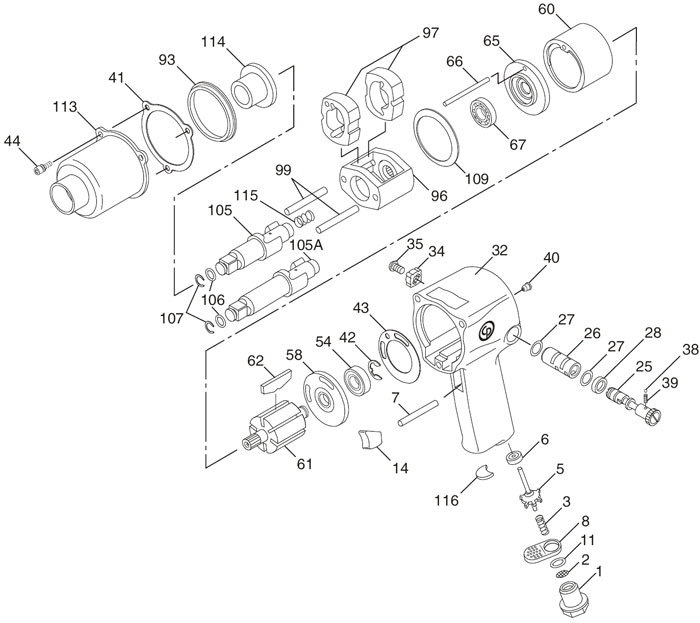

CP7733 Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 8940158625 Bushing - Air Inlet 1
2 CA059037 Strainer - Air 1
3 8940158840 Spring - Throttle 1
5 CA158018 Valve - Throttle 1
6 CA158017 Seat - Throttle 1
7 8940158766 Pin - Throttle 1
8 8940158626 Deflector - Exhaust 1
11 C055373 O-Ring (-015) 1
14 8940158628 Trigger 1
25 CA145485 Valve - Reverse 1
26 8940158695 Bushing - Reverse Valve 1
27 A043001 O-Ring (-013) 2
28 CA149668 Bushing - Detent 1
32 8940158627 Housing - Motor Assembly
(Incl Index Nos: 25, 26, 27, 28, 34, 35, 38 & 39)
1
34 CA145488 Knob - Reverse Valve 1
35 CA145489 Screw - Cap 1
38 CA145486 Ball - Reverse Valve Detent 1
39 CA145487 Spring - Valve Detent 1
40 CA158034 Assembly - Grease Fitting 1
41 CA147054 Gasket - Motor Housing 1
42 CA145494 Retainer - Bearing 1
43 CA145501 Gasket - End Plate 1
44 CA145508 Socket Head Screw w/ Lockwasher 3
54 S065618 Bearing - Ball 1
58 8940158694 Plate - Rear End 1
60 8940158692 Liner 1
61 8940158702 Rotor 1
62 8940158863 Set - Rotor Blade (6) 1
65 8940158693 Plate - Front End 1
66 CA145496 Dowel - Liner 1
67 C066342 Bearing - Ball 1
93 8940158699 Ring - Alignment 1
96 8940158700 Cage - Hammer 1
97 8940158850 Dog - Clutch 2
99 CA155734 Pin - Cage 2
105 CA157175 Shank - Anvil (CP7733)(Incl Index Nos: 106 & 107) 1
105A CA157176 Shank - Anvil (CP7733-2)
(2" Longer)(Incl Index Nos: 106 & 107)
1
106 P083071 O-Ring (-011) 1
107 CA088097 Socket -Retainer Ring 1
109 CA145502 Washer - Motor Clamp 1
113 CA156840 Housing - Clutch (Incl Index No: 114) 1
114 CA155145 Bushing - Anvil 1
115 8940158985 Spring 1
116 8940158955 Silencer 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $3.41
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940158625 Chicago Pneumatic Bushing-Air Inlet 8940158625 Chicago Pneumatic Bushing-Air Inlet

8940158625 Chicago Pneumatic Bushing-Air Inlet

Price $5.64
8940158626 Chicago Pneumatic Deflector-Exhaust 8940158626 Chicago Pneumatic Deflector-Exhaust

8940158626 Chicago Pneumatic Deflector-Exhaust

Price $3.89
8940158627 Chicago Pneumatic Assy-Motor Housing 8940158627 Chicago Pneumatic Assy-Motor Housing

8940158627 Chicago Pneumatic Assy-Motor Housing

Discontinued
8940158628 Chicago Pneumatic Trigger 8940158628 Chicago Pneumatic Trigger

8940158628 Chicago Pneumatic Trigger

Price $3.89
8940158693 Chicago Pneumatic Plate-Front End 8940158693 Chicago Pneumatic Plate-Front End

8940158693 Chicago Pneumatic Plate-Front End

Discontinued
8940158694 Chicago Pneumatic Plate-Rear End 8940158694 Chicago Pneumatic Plate-Rear End

8940158694 Chicago Pneumatic Plate-Rear End

Discontinued
8940158699 Chicago Pneumatic Bushing-Alignment 8940158699 Chicago Pneumatic Bushing-Alignment

8940158699 Chicago Pneumatic Bushing-Alignment

Price $5.42
8940158700 Chicago Pneumatic Cage (Cp7733) 8940158700 Chicago Pneumatic Cage (Cp7733)

8940158700 Chicago Pneumatic Cage (Cp7733)

Discontinued
8940158766 Chicago Pneumatic Pin Throttle 8940158766 Chicago Pneumatic Pin Throttle

8940158766 Chicago Pneumatic Pin Throttle

Price $3.89
8940158840 Chicago Pneumatic Spring-Throttle 8940158840 Chicago Pneumatic Spring-Throttle

8940158840 Chicago Pneumatic Spring-Throttle

Price $3.89
8940158850 Chicago Pneumatic Dog-Koldflo 8940158850 Chicago Pneumatic Dog-Koldflo

8940158850 Chicago Pneumatic Dog-Koldflo

Price $20.64
8940158863 Chicago Pneumatic Set-Rotor Blades (6) 8940158863 Chicago Pneumatic Set-Rotor Blades (6)

8940158863 Chicago Pneumatic Set-Rotor Blades (6)

Price $10.10
8940158955 Chicago Pneumatic Muffler-Cp7733 8940158955 Chicago Pneumatic Muffler-Cp7733

8940158955 Chicago Pneumatic Muffler-Cp7733

Price $11.10
8940158985 Chicago Pneumatic Spring-Clutch 8940158985 Chicago Pneumatic Spring-Clutch

8940158985 Chicago Pneumatic Spring-Clutch

Price $3.89
A043001 Chicago Pneumatic O-Ring In-013 A043001 Chicago Pneumatic O-Ring In-013

A043001 Chicago Pneumatic O-Ring In-013

Price $3.44
C055373 Chicago Pneumatic O-Ring In-015 C055373 Chicago Pneumatic O-Ring In-015

C055373 Chicago Pneumatic O-Ring In-015

Discontinued
C066342 Chicago Pneumatic Bearing-Ball C066342 Chicago Pneumatic Bearing-Ball

C066342 Chicago Pneumatic Bearing-Ball

Price $22.12
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA088097 Chicago Pneumatic Socket Retaining Ring 1/2" CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

Price $5.38
CA145485 Chicago Pneumatic Valve-Reverse CA145485 Chicago Pneumatic Valve-Reverse

CA145485 Chicago Pneumatic Valve-Reverse

Discontinued
CA145486 Chicago Pneumatic Ball-Reverse Vav Det CA145486 Chicago Pneumatic Ball-Reverse Vav Det

CA145486 Chicago Pneumatic Ball-Reverse Vav Det

Price $3.86
CA145487 Chicago Pneumatic Spring-Valve Detent CA145487 Chicago Pneumatic Spring-Valve Detent

CA145487 Chicago Pneumatic Spring-Valve Detent

Price $3.89
CA145488 Chicago Pneumatic Knob-Reverse Valve CA145488 Chicago Pneumatic Knob-Reverse Valve

CA145488 Chicago Pneumatic Knob-Reverse Valve

Price $5.41
CA145489 Chicago Pneumatic Screw-Cap CA145489 Chicago Pneumatic Screw-Cap

CA145489 Chicago Pneumatic Screw-Cap

Discontinued
CA145494 Chicago Pneumatic Retainer-Bearing CA145494 Chicago Pneumatic Retainer-Bearing

CA145494 Chicago Pneumatic Retainer-Bearing

Price $3.89
CA145496 Chicago Pneumatic Dowel-Liner CA145496 Chicago Pneumatic Dowel-Liner

CA145496 Chicago Pneumatic Dowel-Liner

Price $3.87

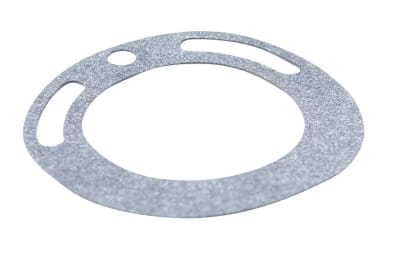

CA145501 Chicago Pneumatic Gasket-End Plate CA145501 Chicago Pneumatic Gasket-End Plate

CA145501 Chicago Pneumatic Gasket-End Plate

Price $1.97
CA145502 Chicago Pneumatic Washer-Motor Clamp CA145502 Chicago Pneumatic Washer-Motor Clamp

CA145502 Chicago Pneumatic Washer-Motor Clamp

Price $7.18
CA145508 Chicago Pneumatic Screw-Cap Hamer Cage CA145508 Chicago Pneumatic Screw-Cap Hamer Cage

CA145508 Chicago Pneumatic Screw-Cap Hamer Cage

Price $3.89
CA147054 Chicago Pneumatic Gasket-Motor Housing CA147054 Chicago Pneumatic Gasket-Motor Housing

CA147054 Chicago Pneumatic Gasket-Motor Housing

Discontinued
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA149668 Chicago Pneumatic Bushing-Detent CA149668 Chicago Pneumatic Bushing-Detent

CA149668 Chicago Pneumatic Bushing-Detent

Price $3.88
CA155145 Chicago Pneumatic Bushing-Anvil CA155145 Chicago Pneumatic Bushing-Anvil

CA155145 Chicago Pneumatic Bushing-Anvil

Discontinued
CA155734 Chicago Pneumatic Pin-Cage CA155734 Chicago Pneumatic Pin-Cage

CA155734 Chicago Pneumatic Pin-Cage

Price $7.19
CA156840 Chicago Pneumatic Assy-Clutch Housing CA156840 Chicago Pneumatic Assy-Clutch Housing

CA156840 Chicago Pneumatic Assy-Clutch Housing

Price $44.21
CA157175 Chicago Pneumatic Assy-1/2" Square Anv CA157175 Chicago Pneumatic Assy-1/2" Square Anv

CA157175 Chicago Pneumatic Assy-1/2" Square Anv

Price $57.51
CA157176 Chicago Pneumatic Assy-1/2" Square Anv CA157176 Chicago Pneumatic Assy-1/2" Square Anv

CA157176 Chicago Pneumatic Assy-1/2" Square Anv

Price $66.37
CA158017 Chicago Pneumatic Valve Seat CA158017 Chicago Pneumatic Valve Seat

CA158017 Chicago Pneumatic Valve Seat

Price $3.89
CA158018 Chicago Pneumatic Valve CA158018 Chicago Pneumatic Valve

CA158018 Chicago Pneumatic Valve

Price $5.40
CA158034 Chicago Pneumatic Grease Fitting CA158034 Chicago Pneumatic Grease Fitting

CA158034 Chicago Pneumatic Grease Fitting

Price $3.89
CP7733 Chicago Pneumatic 1/2" Impact Wrench CP7733 Chicago Pneumatic 1/2" Impact Wrench

CP7733 1/2" Impact Wrench - This 1/2" square drive impact wrench has a patented clutch, low air consumption, high torque (up to 550 ft-lbs), a full teasing trigger. This unit has the best power to weight to speed ratio in its class.

Discontinued See CP7736
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
S000821 Chicago Pneumatic Ball-Steel .125"Dia S000821 Chicago Pneumatic Ball-Steel .125"Dia

S000821 Chicago Pneumatic Ball-Steel .125"Dia

Discontinued See CA145486
S065618 Chicago Pneumatic Ball Bearing S065618 Chicago Pneumatic Ball Bearing

S065618 Chicago Pneumatic Ball Bearing

Price $22.13
