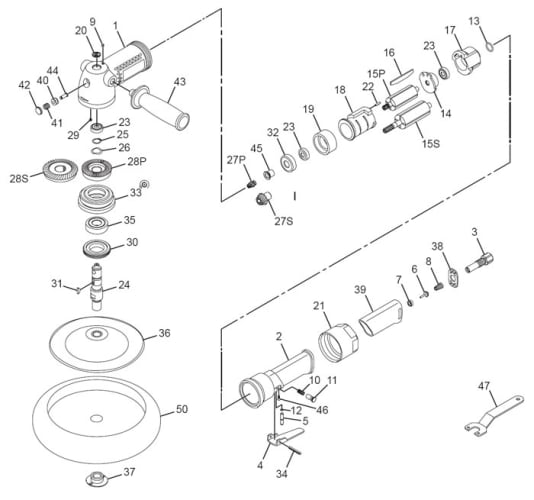

| Index No. | Part No. | Description | No. Req'd |
| - | 8940168380 | Motor Housing Assembly | 1 |
| 1 | Motor Housing | 1 | |
| 9 | 8940167973 | Oil Cap | 1 |
| 20 | CP Logo Ring | 1 | |
| - | 8940168377 | Lock OffTrigger Kit | |
| 40 | Bushing | 1 | |
| 41 | Spring | 1 | |
| 42 | Press Button | 1 | |
| 44 | Shaft | 1 | |
| 29 | 8940167989 | Set Screw | 1 |
| - | 8940168381 | Motor Kit | |
| 14 | 8940167977 | End Plate | 1 |
| 17 | Inlet Guide | 1 | |
| 18 | Cylinder | 1 | |
| 19 | 2050484743 | Front End Plate | 1 |
| 22 | Spring Pin (3 x 12L) | 1 | |
| - | 8940168382 | HandleAssembly1 | |
| 2 | Valve Housing | 1 | |
| 38 | Exhaust Diffuser | 1 | |
| 3 | Air Inlet | 1 | |
| 39 | Rubber Grip | 1 | |
| - | 8940168378 | ThrottleAssembly | |
| 4 | Throttle Lever | 1 | |
| 5 | Valve Pin | 1 | |
| 10 | Spring | 1 | |
| 11 | Safe Lever | 1 | |
| 12 | O-Ring (3 x 1) | 1 | |
| 34 | Spring Pin | 1 | |
| 46 | Screw | 1 | |
| - | 8940168379 | ValveAssembly | |
| 6 | Valve | 1 | |
| 7 | Valve Seat | 1 | |
| 8 | Spring | 1 | |
| - | 8940168383 | Gear KitSander | |
| 27S | Pinion Gear Sander | 1 | |
| 28S | Bevel Gear Sander | 1 | |
| - | 8940168384 | Gear KitPolisher | |
| 27P | Pinion Gear Polisher | ||
| 28P | Bevel Gear Polisher | ||
| 45 | Bushing Polisher | ||
| - | |||
| 21 | 8940167982 | Nut | 1 |
| 24 | 8940167983 | Spindle | 1 |
| 30 | 8940167990 | Nut | 1 |
| 31 | 2050484843 | Key | 1 |
| 36 | 2050530693 | Back Disc | 1 |
| 37 | 2050530733 | Disc Nut | 1 |
| 43 | 2050524063 | Handle | 1 |
| 47 | 2050486673 | Pin Wrench | 1 |
| 50 | 2050531233 | Bonnet | 1 |
| 33 | 8940167991 | Spindle Cap | 1 |
| 15S | 8940167978 | Rotor Sander | 1 |
| 15P | 8940167979 | Rotor Polisher | 1 |
| - | 2050468093 | Warning Label | 1 |
| - | 8940167963 | Tune-Up Kit | |
| 12 | O-Ring (3 x 1) | 1 | |
| 13 | O-Ring (13.8 x 2) | 1 | |
| 16 | 2050484723 | Rotor Blade (set) | 4 |
| 23 | 2050486823 | Ball Bearing (608ZZ) | 3 |
| 25 | Retaining Ring | 1 | |
| 26 | 2050501143 | Spring Washer | 1 |
| 32 | 2050486953 | Ball Bearing (6201Z) | 1 |
| 35 | 8940167993 | Ball Bearing | 1 |
