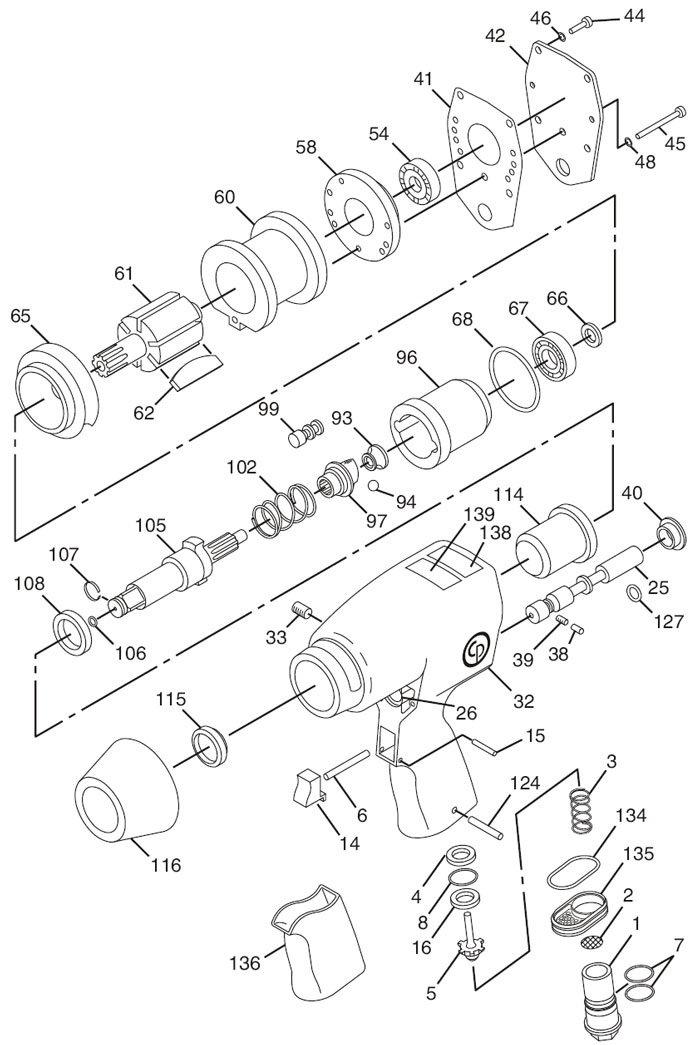

Chicago Pneumatic CP734FR Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA147022 Bushing - Air Inlet (1/4" NPT) 1
2 CA059037 Strainer - Air 1
3 CA142464 Spring - Throttle 1
4 CA149095 Spacer 1
5 CA142460 Valve - Throttle 1
6 CA144831 Pin - Throttle 1
7 C105693 O-Ring (-017) 2
8 CA149096 O-Ring 1
14 CA147017 Trigger 1
15 CA144836 Pin - Roll (3/32) 1
16 C139037 Seat - Throttle 1
25 CA147016 Valve - Reverse 1
26 CA147015 Bushing - Reverse Valve 1
32 CA147012 Housing - Motor (Invl Index No: 33) 1
33 S089953 Plug - Pipe (1/16" NPT) 1
38 8940158391 Pin 1
39 CA147021 Spring - Detent 1
40 8940158392 Sleeve - Regulator 1
41 CA147020 Gasket 1
42 CA147013 Cover - Housing 1
44 CA088193 Screw - Hex Socket Head Cap 4
45 KF129084 Screw 3
46 S091250 Lockwasher 4
48 S008020 Lockwasher 3
54 C075878 Bearing - Ball 1
58 CA099904 Plate -Rear End 1
60 CA147025 Liner 1
61 CA147024 Rotor 1
62 KF131274 Blade Set - Rotor (6) 1
65 CA099903 Plate - Front End 1
66 CA087513 Seal 1
67 C066342 Bearing - Ball 1
68 CA045206 O-Ring (-032) 1
93 KF144074 Pilot 1
94 C011046 Ball - Steel 0.312" dia. 1
96 KF144076 Cage - Hammer 1
97 CA045906 Cam - Hammer 1
99 CA045902 Pin 2
102 KF144075 Spring 1
105 CA045907 Shank - Anvil (1/2" Sq. Dr.)
(Incl Index Nos: 106 & 107)
1
- CA046723 Shank - Anvil (1/2" Sq. Dr.)
(2" Longer)
1
106 P083071 O-Ring (-011) 1
107 CA088097 Retainer - Socket 1
108 KF129046 Spacer 1
114 CA099916 Bushing 1
115 CA088095 Seal - Oil 1
116 KF129085 Shield 1
124 R086991 Pin -Roll (0.188 x 1.00) 1
127 CA147018 O-Ring 1
134 CA148528 Gasket - Exhaust Deflector 1
135 CA147023 Deflector - Exhaust 1
136 8940158432 Grip 1
138 CA155779 Decal - Warning 1
139 8940162135 Decal - Torque 1
Tune-Up Kit CA147716 Incl Index Nos: 7, 41, 62, 66, 68, 106, 107, 115 & 127
Repair Kit CA147717 Incl All Parts in Tune-Up Kit Plus Index Nos: 94, 99, 102 & 105
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $3.41
8940158432 Chicago Pneumatic Handle-Grip Impact 8940158432 Chicago Pneumatic Handle-Grip Impact

8940158432 Chicago Pneumatic Handle-Grip Impact

Price $5.36
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940168257 Chicago Pneumatic Tune Up Kit 8940168257 Chicago Pneumatic Tune Up Kit

8940168257 Chicago Pneumatic Tune Up Kit

Price $41.63
C011046 Chicago Pneumatic Ball-Steel .312"Dia C011046 Chicago Pneumatic Ball-Steel .312"Dia

C011046 Chicago Pneumatic Ball-Steel .312"Dia

Discontinued
C066342 Chicago Pneumatic Bearing-Ball C066342 Chicago Pneumatic Bearing-Ball

C066342 Chicago Pneumatic Bearing-Ball

Price $22.12
C075878 Chicago Pneumatic Bearing-Ball C075878 Chicago Pneumatic Bearing-Ball

C075878 Chicago Pneumatic Bearing-Ball

Price $19.21
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C105693 Chicago Pneumatic O-Ring In-017 C105693 Chicago Pneumatic O-Ring In-017

C105693 Chicago Pneumatic O-Ring In-017

Price $3.92
C139037 Chicago Pneumatic Seat-Throttle C139037 Chicago Pneumatic Seat-Throttle

C139037 Chicago Pneumatic Seat-Throttle

Price $10.13
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA045206 Chicago Pneumatic O-Ring In-032 CA045206 Chicago Pneumatic O-Ring In-032

CA045206 Chicago Pneumatic O-Ring In-032

Price $7.13
CA045902 Chicago Pneumatic Pin CA045902 Chicago Pneumatic Pin

CA045902 Chicago Pneumatic Pin

Price $8.65
CA045906 Chicago Pneumatic Cam CA045906 Chicago Pneumatic Cam

CA045906 Chicago Pneumatic Cam

Price $33.91
CA045907 Chicago Pneumatic Anvil- .50sq R CA045907 Chicago Pneumatic Anvil- .50sq R

CA045907 Chicago Pneumatic Anvil- .50sq R

Price $57.07
CA046723 Chicago Pneumatic Anvil-2"Ext .50sq Dr CA046723 Chicago Pneumatic Anvil-2"Ext .50sq Dr

CA046723 Chicago Pneumatic Anvil-2"Ext .50sq Dr

Price $140.04
CA087513 Chicago Pneumatic Seal-Oil CA087513 Chicago Pneumatic Seal-Oil

CA087513 Chicago Pneumatic Seal-Oil

Price $7.14
CA088095 Chicago Pneumatic Seal-Oil CA088095 Chicago Pneumatic Seal-Oil

CA088095 Chicago Pneumatic Seal-Oil

Price $5.37
CA088097 Chicago Pneumatic Socket Retaining Ring 1/2" CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

Price $5.38
CA088193 Chicago Pneumatic Screw-Hex Skt Hd CA088193 Chicago Pneumatic Screw-Hex Skt Hd

CA088193 Chicago Pneumatic Screw-Hex Skt Hd

Price $3.92
CA099903 Chicago Pneumatic End Plate-Lower CA099903 Chicago Pneumatic End Plate-Lower

CA099903 Chicago Pneumatic End Plate-Lower

Price $36.87
CA099904 Chicago Pneumatic Plate-Upper End CA099904 Chicago Pneumatic Plate-Upper End

CA099904 Chicago Pneumatic Plate-Upper End

Price $35.35
CA099916 Chicago Pneumatic Bushing-Clutch CA099916 Chicago Pneumatic Bushing-Clutch

CA099916 Chicago Pneumatic Bushing-Clutch

Price $25.09
CA142460 Chicago Pneumatic Valve-Throttle CA142460 Chicago Pneumatic Valve-Throttle

CA142460 Chicago Pneumatic Valve-Throttle

Price $12.63
CA142464 Chicago Pneumatic Spring-Throttle CA142464 Chicago Pneumatic Spring-Throttle

CA142464 Chicago Pneumatic Spring-Throttle

Price $7.17
CA144831 Chicago Pneumatic Pin-Throttle CA144831 Chicago Pneumatic Pin-Throttle

CA144831 Chicago Pneumatic Pin-Throttle

Discontinued
CA147012 Chicago Pneumatic Housing-Motor CA147012 Chicago Pneumatic Housing-Motor

CA147012 Chicago Pneumatic Housing-Motor

Price $166.62
CA147013 Chicago Pneumatic Cover-Housing CA147013 Chicago Pneumatic Cover-Housing

CA147013 Chicago Pneumatic Cover-Housing

Price $19.16
CA147015 Chicago Pneumatic Bushing-Reverse Valv CA147015 Chicago Pneumatic Bushing-Reverse Valv

CA147015 Chicago Pneumatic Bushing-Reverse Valv

Discontinued
CA147016 Chicago Pneumatic Valve-Reverse CA147016 Chicago Pneumatic Valve-Reverse

CA147016 Chicago Pneumatic Valve-Reverse

Price $19.16
CA147017 Chicago Pneumatic Trigger CA147017 Chicago Pneumatic Trigger

CA147017 Chicago Pneumatic Trigger

Price $11.07
CA147018 Chicago Pneumatic O-Ring In-203 CA147018 Chicago Pneumatic O-Ring In-203

CA147018 Chicago Pneumatic O-Ring In-203

Price $5.37
CA147020 Chicago Pneumatic Gasket CA147020 Chicago Pneumatic Gasket

CA147020 Chicago Pneumatic Gasket

Price $8.66
CA147021 Chicago Pneumatic Spring-Detent CA147021 Chicago Pneumatic Spring-Detent

CA147021 Chicago Pneumatic Spring-Detent

Price $5.39
CA147022 Chicago Pneumatic Bushing-Air Inlet CA147022 Chicago Pneumatic Bushing-Air Inlet

CA147022 Chicago Pneumatic Bushing-Air Inlet

Price $55.99
CA147023 Chicago Pneumatic Deflector-Exhaust CA147023 Chicago Pneumatic Deflector-Exhaust

CA147023 Chicago Pneumatic Deflector-Exhaust

Price $12.67
CA147024 Chicago Pneumatic Rotor CA147024 Chicago Pneumatic Rotor

CA147024 Chicago Pneumatic Rotor

Price $73.71
CA147025 Chicago Pneumatic Liner CA147025 Chicago Pneumatic Liner

CA147025 Chicago Pneumatic Liner

Price $69.31
CA147716 Chicago Pneumatic Kit-Tune Up Cp734 H CA147716 Chicago Pneumatic Kit-Tune Up Cp734 H

CA147716 Chicago Pneumatic Kit-Tune Up Cp734 H

Price $44.22
CA147717 Chicago Pneumatic Kit-Repair Cp734 H CA147717 Chicago Pneumatic Kit-Repair Cp734 H

CA147717 Chicago Pneumatic Kit-Repair Cp734 H

Price $84.00
CA148528 Chicago Pneumatic Gasket-Deflector Exh CA148528 Chicago Pneumatic Gasket-Deflector Exh

CA148528 Chicago Pneumatic Gasket-Deflector Exh

Price $5.37
CA149095 Chicago Pneumatic Spacer CA149095 Chicago Pneumatic Spacer

CA149095 Chicago Pneumatic Spacer

Price $8.71
CA149096 Chicago Pneumatic O Ring CA149096 Chicago Pneumatic O Ring

CA149096 Chicago Pneumatic O Ring

Price $7.19
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CP734H Chicago Pneumatic 1/2" Impact Wrench CP734H Chicago Pneumatic 1/2" Impact Wrench

CP734H 1/2" Impact Wrench - This 1/2" square drive impact wench is part of the "Classic" line, it has the DYNA-PACT clutch with oil bath, one hand operation forward / reverse button, four power settings, ergonomic compact grip, exhaust air is vented through the handle and it has a full 360 degree swiveling air inlet. This versatile tool is ideal for all general maintenance / repair usage.

Price $183.31
KF129046 Chicago Pneumatic Spacer KF129046 Chicago Pneumatic Spacer

KF129046 Chicago Pneumatic Spacer

Price $15.76
KF129084 Chicago Pneumatic Screw KF129084 Chicago Pneumatic Screw

KF129084 Chicago Pneumatic Screw

Price $5.41
KF129085 Chicago Pneumatic Shield KF129085 Chicago Pneumatic Shield

KF129085 Chicago Pneumatic Shield

Price $8.68
KF131274 Chicago Pneumatic Blade Set-Rotor  (6) KF131274 Chicago Pneumatic Blade Set-Rotor (6)

KF131274 Chicago Pneumatic Blade Set-Rotor  (6)

Price $22.14
KF144074 Chicago Pneumatic Pilot KF144074 Chicago Pneumatic Pilot

KF144074 Chicago Pneumatic Pilot

Price $15.79
KF144075 Chicago Pneumatic Spring KF144075 Chicago Pneumatic Spring

KF144075 Chicago Pneumatic Spring

Price $5.35
KF144076 Chicago Pneumatic Cage-Hammer KF144076 Chicago Pneumatic Cage-Hammer

KF144076 Chicago Pneumatic Cage-Hammer

Price $76.64
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
R086991 Chicago Pneumatic Pin-Roll .188x1.00 R086991 Chicago Pneumatic Pin-Roll .188x1.00

R086991 Chicago Pneumatic Pin-Roll .188x1.00

Price $7.17
S008020 Chicago Pneumatic Lock Washer S008020 Chicago Pneumatic Lock Washer

S008020 Chicago Pneumatic Lock Washer

Discontinued
S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

Price $5.33
S091250 Chicago Pneumatic Lockwasher (Each) S091250 Chicago Pneumatic Lockwasher (Each)

S091250 Chicago Pneumatic Lockwasher #10

Price $3.92
