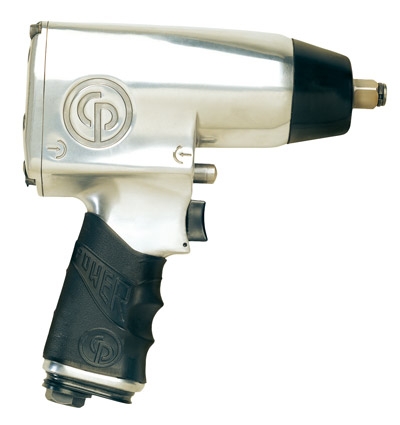

CP734H Chicago Pneumatic 1/2" Impact Wrench

CP734H Chicago Pneumatic 1/2" Impact Wrench

Price $248.38
Part #: T024351

Product Code: CPTCP734H
Qty:

Description Prop65

CP734H 1/2" Impact Wrench - This 1/2" square drive impact wench is part of the "Classic" line, it has the DYNA-PACT clutch with oil bath, one hand operation forward / reverse button, four power settings, ergonomic compact grip, exhaust air is vented through the handle and it has a full 360 degree swiveling air inlet. This versatile tool is ideal for all general maintenance / repair usage.
Product Features
  • 1/2" impact wrench for general maintenance with ring retainer
  • DYNA-PACT (Pin clutch) with oil bath
  • One-handed reverse button with 4 positive power settings
  • Compact and ergonomic with rubber grip
  • Through handle air exhaust and 360° air inlet swivel
  • General Maintenance
  • Clutch delivers smooth and comfortable operation
  • Robust housing and oil bath clutch provide durability
  • Versatile tool ideal for all general repairs and maintenance applications

Specifications:

  • Model: CP734H
  • Handle type: Pistol
  • Square drive: 1/2"
  • Working Torque Range (fwd): 25-310 ft-lb (34-420 Nm)
  • Maximum Torque (reverse): 425 ft.lbs (576 Nm)
  • Free speed: 8,400 rpm
  • Blows per minute: 1,020
  • Net weight: 5.13 lb (2.32 kg)
  • Power/weight ratio: 54 ft.lb/lb (161.3 Nm/kg)
  • Length: 7.5" (191mm)
  • Average air consumption: 3.75 cfm (1.8 l/s)
  • Actual air consumption: 15 cfm (7.1 l/s)
  • Air inlet thread size: 0.25"
  • Min. hose size: 3/8" (10mm)
  • Noise level93: db(A)
  • Sound Power: 104 db(A)
  • Vibration (ISO-8662-7): 3.4 m/sē
  • Vibration α (ISO-28927-2): 7.2 m/sē
  • Vibration K (ISO-28927-2): 3.3 m/sē
  • Socket retainer: Friction ring
  • Clutch type: Pin clutch
