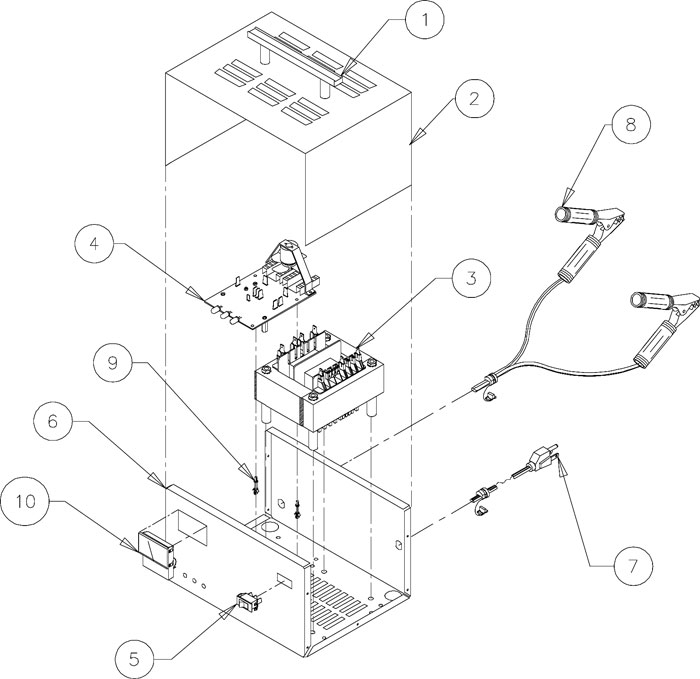

YA1220 Snap-On Battery Charger Parts List


Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610619
Cabinet top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610672
Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610677
Circuit board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610679
Rate switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610620
Cabinet base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610881
A.C. Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610680
D.C. Cord & Clamps . . . . . . . . . . . . . . . . . . . . . . . . 610888
Stand-off (Set of 2) . . . . . . . . . . . . . . . . . . . . . . . . . 610759
Feet (Set of 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610684
Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610685
Snap-On YA1220 Battery Charger Wiring Diagram
Sort By:
Page of 1
610684 Associated Feet Ya1220 (Set Of 4)
610684 Associated Feet Ya1220 (Set Of 4)
Discontinued

610684 Associated Feet Ya1220 (Set Of 4)
240000195 Silicone Heat Transfer Compound
240000195 Silicone Heat Transfer Compound
Price $2.65

Designed for use in transferring heat away from electrical and electronic devices such as; transistors, power diodes, semi-conductors, ballast's and thermocouple wells. High thermal conductivity, high dielectric constant, high dissipation factor, use with heat sinks or metal chassis, will not dry or harden. Contains zinc oxide and polydimethyl siloxane.

610759 Associated Stand Off (Set Of 2)
610759 Associated Stand Off (Set Of 2)
Price $9.57

610759 Associated Stand Off (Set Of 2)
610620 Associated Selector Switch
610620 Associated Selector Switch
Price $14.96

Associated Selector Switch
610685 Associated Ammeter Horizontal 0-40 Amp Range W/ Start
610685 Associated Ammeter Horizontal 0-40 Amp Range W/ Start
Price $15.04

Horizontal Snap In Mount, no tools needed to install. "Wire Through" Induction pick-up
610619 Associated Battery Charger Handle
610619 Associated Battery Charger Handle
Price $16.52

610619 Associated Battery Charger Handle
610888 Associated DC Cable Set With Clamps
610888 Associated DC Cable Set With Clamps
Price $61.44

DC CABLE  SET WITH CLAMPS
610679 Associated PC Board Assembly
610679 Associated Circuit Board
Price $142.65

610679 Associated PC Board Assembly
610926 Associated PC Board Assembly
610926 Associated PC Board Assembly
Price $221.20

Associated PC Board Assembly. For new style units only. Your unit must have connections matching this board to work properly. Identify your new style unit by the momentary mode switch on the front of the unit.


20-amp continuous output. Microprocessor-controlled charger for 6V and 12V deep-cycle, gel-cell, and lead acid batteries of all sizes. Features automatic voltage selection and full automatic shutoff. Provides ideal amperage regardless of battery size and state of charge. Includes antisparking, short circuit and polarity protection. Has battery maintainer, variable charge rate, and charge complete indicator. Cranking assist: 100 amp (3 sec on, 180 sec off). 100-amp clamp rating.
