 71460 Sears 60/20/2/250/125 Amp Manual Battery Charger Parts List
 71460 Sears 60/20/2/250/125 Amp Manual Battery Charger Wiring Diagram
 Replacement Parts List Sears 71460
 Item Description Part Number
1 Plastic Cap Top
3799001211
2 Wheel Hub 2199700006
3 Wheel 0099000120
4 Axle 0099000472
5 Power Cord 0090026050
6 Negative Cable With Clamp
3899000391
7 Negative Cable With Clamp 3899000408
8 Circuit Breaker
3999000066
9 Transformer 0093026430
10 Heat Sink Rectifier Assy.
2299000679
10Single Diode Only
3100100032
11 Fan Motor 0099000063
12 Rocker Switch (Volt Select) 0499000052
13 Volt Meter 5399200012
14 Front Panel Decal 0899000556
15 Mounting Foot
1199005112
16Handle3599000262
17Ammeter5399100083
18Axle Mounting Bracket1199004366
19Timer Control Knob
0099000096
20Volt Rate Switch Knob
0099000045
21Timer0099000094
22Rate Selector Switch
0499000058
-Owners Manual
0000000518
Sort By:
Page of 1
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers 0099000045 Schumacher Knob For Selector Switches on SE Series Chargers

This Knob is for selector switches on SE Series chargers only, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000062 Schumacher 6" CW Fan Blade 0099000062 Schumacher 6" CW Fan Blade

0099000062 Schumacher 6" CW Fan Blade.

Discontinued see 316-009-000
0099000063 Schumacher Fan Motor Open Frame 115 Volt 0099000063 Schumacher Fan Motor Open Frame 115 Volt

Fan Motor Open Frame 115 Volt

Discontinued
0099000094 Schumacher 135 Minute Timer Mechanical with Hold 0099000094 Schumacher 135 Minute Timer Mechanical with Hold

Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Discontinued
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft 0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft

0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers 0099000269 Schumacher Knob For Timer Switches on PS Series Chargers

This Knob is for timers on PS Series chargers only with a 1/2 Shaft, there are separate knobs for selector switches with a 3/4 shaft. Please check your part numbers carefully.

Price $4.62
0099000270 Schumacher Knob For Selector Switches on PS Series Chargers 0099000270 Knob For Selector Switches on PS Series Chargers

This Knob is for selector switches with a 3/4 Shaft only, there are separate knobs for timers with a half shaft. Please check your part numbers carefully.

Discontinued
0099000472 Schumacher Battery Charger Axle 15-5/8" 3/8 Dia. With Cotter Pin Holes 0099000472 Schumacher Battery Charger Axle 15-5/8" 3/8 Dia. With Cotter Pin Holes

0099000472 Schumacher Battery Charger Axle 15-5/8" 3/8 Dia. With Cotter Pin Holes

Discontinued
0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals. 0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals.

0499000052 Schumacher 3 Position Rocker Switch SPDT On-Off-On 16 amp 1/4 spade terminals.

Discontinued
0499000058 Schumacher 6 Position Rotary Selector Switch 0499000058 Schumacher 6 Position Rotary Selector Switch

6 Position Rotary Selector Switch, 7 wire new style.

Discontinued
1199005112 Schumacher Metal Foot 1199005112 Schumacher Metal Foot

1199005112 Schumacher Foot, Metal, no hardware included. For 8" Wheeled units.

Price $5.73
2199700006 Axle End Cap .375 Dia Axle (Pair) 2199700006 Schumacher Axle End Cap .375 Dia Axle (Pair)

Axle End Cap Fits .375 (3/8") Diameter Axle, Sold as a Pair, Can be used on any 3/8" Axle to secure wheels.

Discontinued
2299000679 Schumacher Heatsink Rectifier Assembly 2299000679 Schumacher Heatsink Rectifier Assembly

2299000679 Schumacher Heatsink Rectifier Assembly

Discontinued
246-177-666 Switch 3 Position Rocker SPDT On-Off-On 246-177-666 Switch 3 Position Rocker SPDT On-Off-On

246-177-666 Switch 3 Position Rocker SPDT On-Off-On 16 amp 1/4 spade terminals.

Price $13.58
316-009-000 Fan Blade 6" 4 Blade CW 316-009-000 Fan Blade 6" 4 Blade CW

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie

Price $12.85
3599000262 Schumacher Battery Charger Handle Round Black Steel Flat Sides 3599000262 Schumacher Battery Charger Handle Round Black Steel Flat Sides

3599000262 Schumacher Battery Charger Handle Round Black Steel Flat Sides

Price $8.85
3899000391 Schumacher DC Output Clamp Cable Black 3899000391 Schumacher DC Output Clamp And Cable Black

DC Output Clamp And Cable Black. 7ft Long, 6ga, Ring Terminal connector. Steel Clamp. Used on chargers with 250 amp max rates.

Discontinued
3899000408 Schumacher DC Output Clamp And Cable Red 3899000408 Schumacher DC Output Clamp And Cable Red

DC Output Clamp And Cable Red. 7ft Long, 6ga, Ring Terminal connector. Steel Clamp. Used on chargers with 250 amp max rates.

Discontinued
3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82" 3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 82" long with square strain relief on cable.

Discontinued
3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88" 3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 88" long with square strain relief on cable.

Discontinued
3999000066 Discontinued Schumacher Circuit Breaker 3999000066 Schumacher Circuit Breaker

Discontinued Circuit Breaker

Discontinued
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
5100000005 Timer Screw M3 X 5.5 5100000005 Timer Screw M3 X 5.5

5100000005 Screw M3 X 5.5 For Original Timer

Price $0.05
5399100083 Schumacher Ammeter 5399100083 Schumacher Ammeter

Ammeter Horizontal 0-60 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy.

Discontinued
5399100084 Schumacher Ammeter Horizontal 0-80 Amp 5399100084 Schumacher Ammeter Horizontal 0-80 Amp

Ammeter Horizontal 0-80 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face. 0-80 Amp range and wire through induction pick-up for greater accuracy.

Discontinued
5399100117 Ammeter Horizontal 0-80 Amp Range with Charge & Start 5399100117 Schumacher Ammeter Horizontal 0-80 Amp Range with Charge & Start

5399100117 Ammeter Horizontal 0-80 Amp Range with Charge & Start

Discontinued
5399100143 Schumacher Ammeter Horizontal 0-80 Amp 5399100143 Schumacher Ammeter Horizontal 0-80 Amp

Ammeter Horizontal 0-80 AMP features easy snap-in installation, no tools required. Yellow Orange Charge Rate face. 0-80 Amp range and wire through induction pick-up for greater accuracy.

Discontinued
5399200013 Schumacher Voltmeter Testmeter With Circuit Board 5399200013 Schumacher Voltmeter Testmeter With Circuit Board

Voltmeter Testmeter Horizontal features easy snap-in installation, no tools required. Displays. Battery charge level scale, battery Condition Meter, Alternator test scale Bad Weak Good Scale. 1/4" Spade Terminal Connections make installation a snap. Displays both 6 and 12 Volt Systems.

Discontinued

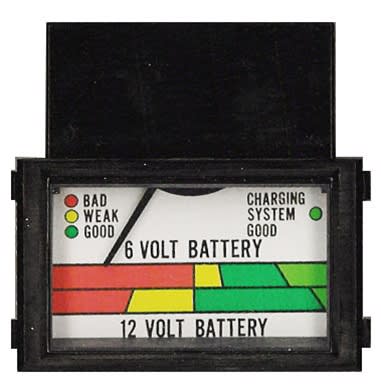

5399200014 Schumacher Voltmeter 6 - 12 Volt Range 5399200014 Schumacher Voltmeter 6 - 12 Volt Range
