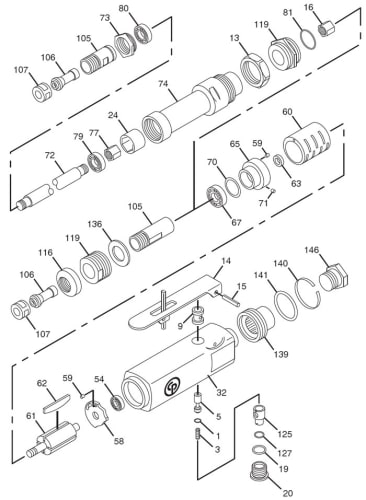

Chicago Pneumatic CP860 - 860ES Die Grinder Repair Parts


Index
No.
Part No. Description No.
Req'd
1 C100129 O-Ring 1
3 KF124504 Spring - Throttle Valve 1
5 KF124505 Valve - Throttle 1
9 KF124507 Bushing - Throttle Valve 1
13 C138654 Cap - Housing 1
14 C138731 Lever - Throttle (Lock-Off) 1
15 C114089 Pin - Roll 1
16 C138656 Nut - Rotor 1
19 A043001 O-Ring 1
20 KF124511 Plug - Motor Valve 1
24 C138660 Coupling 1
32 KF125471 Housing - Motor
(Incl Index Nos: 9 & 146)
1
54 S039709 Bearing - Ball 1
58 KF125474 Plate - Rear End
(Incl Index No: 59)
1
59 KF127209 Pin - Roll (2.5mm x 6mm) 2
60 KF125477 Liner 1
61 KF124517 Rotor 1
62 KF138243 Blade - Rotor Set (4) 1
63 KF124519 Collar - Rotor 1
65 KF125473 Plate - Front End (CP860)
(Incl Index Nos: 59 & 71)
1
- CA148594 Plate - Front End (CP860ES)
(Incl Index Nos: 59 & 71)
1
67 C120326 Bearing - Ball 1
70 KF124522 Shim As
Req'd
71 KF127208 Pin - Roll (2.5mm x 4mm) 1
72 C138659 Shaft - Extension 1
73 C138651 Nut - Spindle 1
74 C138658 Housing - Extension 1
77 C138664 Nut - Extension Shaft 1
79 S064819 Bearing - Ball 1
80 S085501 Bearing - Ball 1
81 C116352 O-Ring 1
105 KF124523 Chuck - Spindle (CP860) 1
- C138650 Chuck - Spindle (CP860ES) 1
106 C138727 Collet (1/4" Capacity) (860ES Only) 1
- C139289 Collet (6mm Capacity) 1
107 KF124525 Nut - Collet 1
116 KF124526 Cap - Housing 1
119 KF125478 Nut - Clamp (CP860) 1
- C138655 Nut - Clamp (CP860ES) 1
125 KF124528 Regulator - Air 1
127 P083071 O-Ring (-011) 1
136 KF125472 Spacer - End Plate 1
139 KF125475 Sleeve - Exhaust 1
140 KF125476 Ring - Snap 1
141 P092536 O-Ring (-020) 1
145 KF134718 Wrench - Collet (Not Shown) 2
146 8940158447 Inlet Bushing 1
- CA131376 Decal - Oil Daily 1
- CA144007 Decal - Safety Warning 1
Sort By:
Page of 1
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top
1001-4 Milton Industries Tool Oil 4oz. Flip Top
Price $3.41

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F. more info
2050496423 Chicago Pneumatic Collet Nut 6mm
2050496423 Chicago Pneumatic Collet Nut 6mm
Discontinued See KF124525

2050496423 Chicago Pneumatic Collet Nut 6mm more info
8940158447 Chicago Pneumatic Inlet Bushing
8940158447 Chicago Pneumatic Inlet Bushing
Price $11.52

8940158447 Chicago Pneumatic Inlet Bushing more info
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube
Price $29.28

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube more info
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge
Price $36.54

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge more info
A043001 Chicago Pneumatic O-Ring In-013
A043001 Chicago Pneumatic O-Ring In-013
Price $1.47

A043001 Chicago Pneumatic O-Ring In-013 more info
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings
Price $19.20

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings more info
C100129 Chicago Pneumatic O-Ring In-009
C100129 Chicago Pneumatic O-Ring In-009
Price $2.84

C100129 Chicago Pneumatic O-Ring In-009 more info
C114089 Chicago Pneumatic Pin-Roll .125x.875
C114089 Chicago Pneumatic Pin-Roll .125x.875
Price $1.92

C114089 Chicago Pneumatic Pin-Roll .125x.875 more info
C116352 Chicago Pneumatic O-Ring In-035
C116352 Chicago Pneumatic O-Ring In-035
Price $5.00

C116352 Chicago Pneumatic O-Ring In-035 more info
C138650 Chicago Pneumatic Chuck-Spindle
C138650 Chicago Pneumatic Chuck-Spindle
Price $27.80

C138650 Chicago Pneumatic Chuck-Spindle more info
C138651 Chicago Pneumatic Nut-Spindle
C138651 Chicago Pneumatic Nut-Spindle
Price $19.80

C138651 Chicago Pneumatic Nut-Spindle more info
C138654 Chicago Pneumatic Cap-Housing
C138654 Chicago Pneumatic Cap-Housing
Price $15.53

C138654 Chicago Pneumatic Cap-Housing more info
C138655 Chicago Pneumatic Nut-Clamp
C138655 Chicago Pneumatic Nut-Clamp
Price $13.72

C138655 Chicago Pneumatic Nut-Clamp more info
C138656 Chicago Pneumatic Nut-"A" Drive
C138656 Chicago Pneumatic Nut-"A" Drive
Price $6.86

C138656 Chicago Pneumatic Nut-"A" Drive more info
C138658 Chicago Pneumatic Housing-Extention
C138658 Chicago Pneumatic Housing-Extention
Price $186.95

C138658 Chicago Pneumatic Housing-Extention more info
C138659 Chicago Pneumatic Shaft-Extention
C138659 Chicago Pneumatic Shaft-Extention
Price $14.88

C138659 Chicago Pneumatic Shaft-Extention more info
C138660 Chicago Pneumatic Coupling
C138660 Chicago Pneumatic Coupling
Price $13.76

C138660 Chicago Pneumatic Coupling more info
C138664 Chicago Pneumatic Nut-"B" Drive
C138664 Chicago Pneumatic Nut-"B" Drive
Price $7.65

C138664 Chicago Pneumatic Nut-"B" Drive more info
C138727 Chicago Pneumatic Collet-.250
C138727 Chicago Pneumatic Collet-.250
Price $15.09

C138727 Chicago Pneumatic Collet-.250 more info
C138731 Chicago Pneumatic Lever-Throttle
C138731 Chicago Pneumatic Lever-Throttle
Price $18.53

C138731 Chicago Pneumatic Lever-Throttle more info
C139289 Chicago Pneumatic Collet-6mm
C139289 Chicago Pneumatic Collet-6mm
Price $13.95

C139289 Chicago Pneumatic Collet-6mm more info
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.
Price $9.73

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. more info
CA144007 Chicago Pneumatic Decal-Safety Warning
CA144007 Chicago Pneumatic Decal-Safety Warning
Price $2.70

CA144007 Chicago Pneumatic Decal-Safety Warning more info
CA144889 Chicago Pneumatic Blade-Set-Rotor
CA144889 Chicago Pneumatic Blade-Set-Rotor
Price $11.38

CA144889 Chicago Pneumatic Blade-Set-Rotor more info
CA148594 Chicago Pneumatic Front End Plate
CA148594 Chicago Pneumatic Front End Plate
Price $25.47

CA148594 Chicago Pneumatic Front End Plate more info
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.
Price $4.99

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. more info
CP860 Chicago Pneumatic 1/4" Die Grinder
CP860 Chicago Pneumatic 1/4" Die Grinder
Price $123.98

CP860 1/4" Die Grinder - This die grinder has a 1/4" collet, 0.54 horse power motor, adjustable speed regulator, lock-off throttle and a square handle for improved comfort. This tool is ideal for cleaning and high-speed grinding and polishing applications. more info
KF124504 Chicago Pneumatic Spring
KF124504 Chicago Pneumatic Spring
Price $3.70

KF124504 Chicago Pneumatic Spring more info
KF124505 Chicago Pneumatic Valve-Throttle
KF124505 Chicago Pneumatic Valve-Throttle
Price $10.58

KF124505 Chicago Pneumatic Valve-Throttle more info
KF124507 Chicago Pneumatic Bushing-Valve
KF124507 Chicago Pneumatic Bushing-Valve
Price $7.61

KF124507 Chicago Pneumatic Bushing-Valve more info
KF124511 Chicago Pneumatic Plug-Motor Valve
KF124511 Chicago Pneumatic Plug-Motor Valve
Price $9.58

KF124511 Chicago Pneumatic Plug-Motor Valve more info
KF124517 Chicago Pneumatic Rotor
KF124517 Chicago Pneumatic Rotor
Price $39.44

KF124517 Chicago Pneumatic Rotor more info
KF124519 Chicago Pneumatic Collar-Rotor
KF124519 Chicago Pneumatic Collar-Rotor
Price $4.78

KF124519 Chicago Pneumatic Collar-Rotor more info
KF124522 Chicago Pneumatic Shim
KF124522 Chicago Pneumatic Shim
Price $4.79

KF124522 Chicago Pneumatic Shim more info
KF124523 Chicago Pneumatic Chuck-Spindle
KF124523 Chicago Pneumatic Chuck-Spindle
Price $41.81

KF124523 Chicago Pneumatic Chuck-Spindle more info
KF124525 Chicago Pneumatic Nut-Collet
KF124525 Chicago Pneumatic Nut-Collet
Price $13.64

KF124525 Chicago Pneumatic Nut-Collet more info
KF124526 Chicago Pneumatic Cap-Housing
KF124526 Chicago Pneumatic Cap-Housing
Price $9.87

KF124526 Chicago Pneumatic Cap-Housing more info
KF124528 Chicago Pneumatic Regulator-Air
KF124528 Chicago Pneumatic Regulator-Air
Price $7.70

KF124528 Chicago Pneumatic Regulator-Air more info
KF125471 Chicago Pneumatic Housing-Motor
KF125471 Chicago Pneumatic Housing-Motor
Price $83.10

KF125471 Chicago Pneumatic Housing-Motor more info
KF125472 Chicago Pneumatic Spacer-End Plate
KF125472 Chicago Pneumatic Spacer-End Plate
Price $3.89

KF125472 Chicago Pneumatic Spacer-End Plate more info
KF125473 Chicago Pneumatic Plate-Front End
KF125473 Chicago Pneumatic Plate-Front End
Price $22.47

KF125473 Chicago Pneumatic Plate-Front End more info
KF125474 Chicago Pneumatic Plate-Rear End
KF125474 Chicago Pneumatic Plate-Rear End
Price $31.85

KF125474 Chicago Pneumatic Plate-Rear End more info
KF125475 Chicago Pneumatic Sleeve-Exhaust
KF125475 Chicago Pneumatic Sleeve-Exhaust
Price $5.86

KF125475 Chicago Pneumatic Sleeve-Exhaust more info
KF125476 Chicago Pneumatic Ring-Snap
KF125476 Chicago Pneumatic Ring-Snap
Price $3.98

KF125476 Chicago Pneumatic Ring-Snap more info
KF125477 Chicago Pneumatic Liner
KF125477 Chicago Pneumatic Liner
Price $55.62

KF125477 Chicago Pneumatic Liner more info
KF125478 Chicago Pneumatic Nut-Clamp
KF125478 Chicago Pneumatic Nut-Clamp
Price $26.57

KF125478 Chicago Pneumatic Nut-Clamp more info
KF127208 Chicago Pneumatic Pin-Roll
KF127208 Chicago Pneumatic Pin-Roll
Price $2.60

KF127208 Chicago Pneumatic Pin-Roll more info
KF127209 Chicago Pneumatic Pin-Roll
KF127209 Chicago Pneumatic Pin-Roll
Price $2.60

KF127209 Chicago Pneumatic Pin-Roll more info
KF134718 Chicago Pneumatic Wrench-Collet
KF134718 Chicago Pneumatic Wrench-Collet
Price $10.79

KF134718 Chicago Pneumatic Wrench-Collet more info
KF138243 Chicago Pneumatic Blade Set-Rotor 860
KF138243 Chicago Pneumatic Blade Set-Rotor 860
Discontinued See CA144889

KF138243 Chicago Pneumatic Blade Set-Rotor 860 more info
P083071 Chicago Pneumatic O-Ring In-011
P083071 Chicago Pneumatic O-Ring In-011
Price $1.60

P083071 Chicago Pneumatic O-Ring In-011 more info
P092536 Chicago Pneumatic O-Ring In-020
P092536 Chicago Pneumatic O-Ring In-020
Price $4.82

P092536 Chicago Pneumatic O-Ring In-020 more info
S039709 Chicago Pneumatic Bearing-Ball
S039709 Chicago Pneumatic Bearing-Ball
Price $19.74

S039709 Chicago Pneumatic Bearing-Ball more info
S064819 Chicago Pneumatic Bearing-Ball
S064819 Chicago Pneumatic Bearing-Ball
Discontinued

S064819 Chicago Pneumatic Bearing-Ball more info
S085501 Chicago Pneumatic Bearing-Ball
S085501 Chicago Pneumatic Bearing-Ball
Price $25.84

S085501 Chicago Pneumatic Bearing-Ball more info
