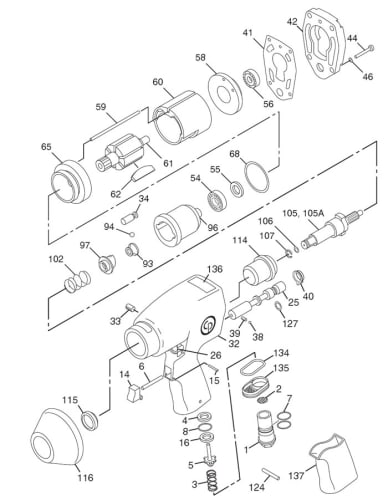

Chicago Pneumatic CP724H - 726H Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA147022 Bushing - Air Inlet 1
2 CA059037 Screen - Air 1
3 CA142464 Spring - Throttle 1
4 CA149095 Spacer 1
5 CA142460 Valve - Throttle 1
6 CA144831 Pin - Throttle Push 1
7 C105693 O-Ring (-017) 2
8 CA149096 O-Ring 1
14 CA147017 Trigger - Throttle 1
15 CA144836 Pin - Roll 1
16 C139037 Seat - Throttle 1
25 CA155206 Valve - Reverse 1
26 CA155211 Bushing - Reverse Valve 1
32 CA155209 Housing - Motor (Incl Index Nos: 26, 33, 114, 115 & 136) 1
33 S089953 Plug - Pipe (1/16" NPT) 1
34 KF137787 Pin - Anvil Hammer 2
38 S008613 Ball 1
39 CA147021 Spring - Detent 1
40 CA155212 Switch 1
41 CA155213 Gasket - Housing Cover 1
42 CA155207 Cover - Motor Housing 1
44 CA088193 Screw - Hex Socket Head 4
46 S091250 Lockwasher 4
54 S065618 Bearing - Ball 1
55 C090396 Seal - Grease 1
56 C075878 Bearing - Ball 1
58 KF136477 Plate - Rear End 1
59 KF136504 Dowel - Liner 1
60 KF136479 Liner 1
61 KF136481 Rotor 1
62 KF137810 Blade - Set Rotor 1
65 KF136482 Plate - Front End 1
68 C042234 O-Ring 1
93 C102506 Ball - Pilot 1
94 C014143 Ball - Steel 0.219" dia. 1
96 KF137788 Cage - Hammer 1
97 C119091 Cam - Hammer 1
102 KF136495 Spring - Cam Release 1
105 CA144779 Shank - Anvil (3/8" Sq. Dr. CP724H)
(Incl Index Nos: 106 & 107)
1
105A KF136506 Shank - Anvil (1/2" Sq. Dr. CP726H)
(Incl Index Nos: 106 & 107)
1
106 CA147075 O-Ring (CP724H) 1
106A P083071 O-Ring (CP726H)(Not Shown) 1
107 CA147674 Retainer - Socket (CP724H) 1
107A CA088097 Retainer - Socket (CP726H)(Not Shown) 1
114 KF136484 Bushing - Anvil Shank 1
115 KF136490 Seal - Oil 1
116 KF136485 Shield - Nose 1
124 R086991 Pin - Roll 1
127 C148187 O-Ring 1
134 CA148528 Gasket 1
135 CA147023 Deflector - Exhaust 1
136 CA155878 Decal - Safety Warning 1
137 8940158432 Grip 1
Tune-Up Kit CA155218 CP724H (Incl Index Nos: 7, 8, 41, 55, 62, 68, 106, 107, 115 &127)
Tune-Up Kit CA155309 CP726H (Incl Index Nos: 7, 8, 41, 55, 62, 68, 106, 107, 115 &127)
Repair Kit CA155310 CP724H (All parts in Tune-Up Kit Plus Index Nos: 34, 94, 102 & 105)
Repair Kit CA155311 CP726H (All parts in Tune-Up Kit Plus Index Nos: 34, 94, 102 & 105)
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158432 Chicago Pneumatic Handle-Grip Impact 8940158432 Chicago Pneumatic Handle-Grip Impact

8940158432 Chicago Pneumatic Handle-Grip Impact

Price $5.36
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C014143 Chicago Pneumatic Ball-Steel .219"Dia C014143 Chicago Pneumatic Ball-Steel .219"Dia

C014143 Chicago Pneumatic Ball-Steel .219"Dia

Price $3.92
C042234 Chicago Pneumatic O-Ring C042234 Chicago Pneumatic O-Ring

C042234 Chicago Pneumatic O-Ring

Price $8.71
C075878 Chicago Pneumatic Bearing-Ball C075878 Chicago Pneumatic Bearing-Ball

C075878 Chicago Pneumatic Bearing-Ball

Price $19.21
C090396 Chicago Pneumatic Seal-Grease C090396 Chicago Pneumatic Seal-Grease

C090396 Chicago Pneumatic Seal-Grease

Price $12.65
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C102506 Chicago Pneumatic Ball Pilot C102506 Chicago Pneumatic Ball Pilot

C102506 Chicago Pneumatic Ball Pilot

Price $15.80
C105693 Chicago Pneumatic O-Ring In-017 C105693 Chicago Pneumatic O-Ring In-017

C105693 Chicago Pneumatic O-Ring In-017

Price $3.92
C119091 Chicago Pneumatic Cam-Hammer C119091 Chicago Pneumatic Cam-Hammer

C119091 Chicago Pneumatic Cam-Hammer

Price $32.45
C139037 Chicago Pneumatic Seat-Throttle C139037 Chicago Pneumatic Seat-Throttle

C139037 Chicago Pneumatic Seat-Throttle

Price $10.13
C148187 Chicago Pneumatic O-Ring In-202 C148187 Chicago Pneumatic O-Ring In-202

C148187 Chicago Pneumatic O-Ring In-202

Price $3.89
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA088097 Chicago Pneumatic Socket Retaining Ring 1/2" CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

Price $5.38
CA088193 Chicago Pneumatic Screw-Hex Skt Hd CA088193 Chicago Pneumatic Screw-Hex Skt Hd

CA088193 Chicago Pneumatic Screw-Hex Skt Hd

Price $3.92
CA092093 Chicago Pneumatic 3/8" Socket Retaining Ring CA092093 Chicago Pneumatic 3/8" Socket Retaining Ring

CA092093 Chicago Pneumatic 3/8" Socket Retaining Ring

Price $5.35
CA142460 Chicago Pneumatic Valve-Throttle CA142460 Chicago Pneumatic Valve-Throttle

CA142460 Chicago Pneumatic Valve-Throttle

Price $12.63
CA142464 Chicago Pneumatic Spring-Throttle CA142464 Chicago Pneumatic Spring-Throttle

CA142464 Chicago Pneumatic Spring-Throttle

Price $7.17
CA144779 Chicago Pneumatic Shank-Anvil 3/8" Sq CA144779 Chicago Pneumatic Shank-Anvil 3/8" Sq

CA144779 Chicago Pneumatic Shank-Anvil 3/8" Sq

Price $40.46
CA144831 Chicago Pneumatic Pin-Throttle CA144831 Chicago Pneumatic Pin-Throttle

CA144831 Chicago Pneumatic Pin-Throttle

Discontinued
CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1 CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1

CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1

Price $3.87
CA147017 Chicago Pneumatic Trigger CA147017 Chicago Pneumatic Trigger

CA147017 Chicago Pneumatic Trigger

Price $11.07
CA147021 Chicago Pneumatic Spring-Detent CA147021 Chicago Pneumatic Spring-Detent

CA147021 Chicago Pneumatic Spring-Detent

Price $5.39
CA147022 Chicago Pneumatic Bushing-Air Inlet CA147022 Chicago Pneumatic Bushing-Air Inlet

CA147022 Chicago Pneumatic Bushing-Air Inlet

Price $55.99
CA147023 Chicago Pneumatic Deflector-Exhaust CA147023 Chicago Pneumatic Deflector-Exhaust

CA147023 Chicago Pneumatic Deflector-Exhaust

Price $12.67
CA147075 Chicago Pneumatic O-Ring P6, Use Ca147 CA147075 Chicago Pneumatic O-Ring P6, Use Ca147

CA147075 Chicago Pneumatic O-Ring P6, Use Ca147

Price $3.89
CA147674 Chicago Pneumatic 3/8" Socket Retaining Ring CA147674 Chicago Pneumatic 3/8" Socket Retaining Ring

CA147674 Chicago Pneumatic 3/8" Socket Retaining Ring

Discontinued See CA092093
CA148528 Chicago Pneumatic Gasket-Deflector Exh CA148528 Chicago Pneumatic Gasket-Deflector Exh

CA148528 Chicago Pneumatic Gasket-Deflector Exh

Price $5.37
CA149095 Chicago Pneumatic Spacer CA149095 Chicago Pneumatic Spacer

CA149095 Chicago Pneumatic Spacer

Price $8.71
CA149096 Chicago Pneumatic O Ring CA149096 Chicago Pneumatic O Ring

CA149096 Chicago Pneumatic O Ring

Price $7.19
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA155206 Chicago Pneumatic Valve-Reverse CA155206 Chicago Pneumatic Valve-Reverse

CA155206 Chicago Pneumatic Valve-Reverse

Price $26.56
CA155207 Chicago Pneumatic Cover-Motor Hsg CA155207 Chicago Pneumatic Cover-Motor Hsg

CA155207 Chicago Pneumatic Cover-Motor Hsg

Price $16.19
CA155209 Chicago Pneumatic Housing-Motor CA155209 Chicago Pneumatic Housing-Motor

CA155209 Chicago Pneumatic Housing-Motor

Discontinued
CA155211 Chicago Pneumatic Bushing-Reverse Valv CA155211 Chicago Pneumatic Bushing-Reverse Valv

CA155211 Chicago Pneumatic Bushing-Reverse Valv

Price $23.58
CA155212 Chicago Pneumatic Switch CA155212 Chicago Pneumatic Switch

CA155212 Chicago Pneumatic Switch

Price $5.39
CA155213 Chicago Pneumatic Gasket-Housing Cover CA155213 Chicago Pneumatic Gasket-Housing Cover

CA155213 Chicago Pneumatic Gasket-Housing Cover

Price $8.71
CA155218 Chicago Pneumatic Kit-Tuneup Cp0724h CA155218 Chicago Pneumatic Kit-Tuneup Cp0724h

CA155218 Chicago Pneumatic Kit-Tuneup Cp0724h

Price $64.89
CA155309 Chicago Pneumatic Kit-Tuneup Cp0726h CA155309 Chicago Pneumatic Kit-Tuneup Cp0726h

CA155309 Chicago Pneumatic Kit-Tuneup Cp0726h

Discontinued
CA155310 Chicago Pneumatic Kit-Repair Cp0724h CA155310 Chicago Pneumatic Kit-Repair Cp0724h

CA155310 Chicago Pneumatic Kit-Repair Cp0724h

Price $143.02
CA155311 Chicago Pneumatic Kit-Repair Cp0726h CA155311 Chicago Pneumatic Kit-Repair Cp0726h

CA155311 Chicago Pneumatic Kit-Repair Cp0726h

Discontinued
CP724H Chicago Pneumatic 3/8" Impact Wrench CP724H Chicago Pneumatic 3/8" Impact Wrench

CP724H 3/8" Impact Wrench - This 3/8" square drive impact wrench has the DYNA-PACT oil bath clutch, one hand operation forward / reverse button, four power settings, ergonomic compact rubber grip, exhaust is vented through the handle and a full 360 degree swivel air inlet. This is a very versatile tool that is well suited for all general repair / maintenance applications.

Price $359.00
KF136477 Chicago Pneumatic Plate-Rear KF136477 Chicago Pneumatic Plate-Rear

KF136477 Chicago Pneumatic Plate-Rear

Price $38.34
KF136479 Chicago Pneumatic Liner KF136479 Chicago Pneumatic Liner

KF136479 Chicago Pneumatic Liner

Discontinued
KF136481 Chicago Pneumatic Rotor KF136481 Chicago Pneumatic Rotor

KF136481 Chicago Pneumatic Rotor

Price $72.23
KF136482 Chicago Pneumatic Plate-Front End KF136482 Chicago Pneumatic Plate-Front End

KF136482 Chicago Pneumatic Plate-Front End

Discontinued
KF136484 Chicago Pneumatic Bushing-Anvil Shank KF136484 Chicago Pneumatic Bushing-Anvil Shank

KF136484 Chicago Pneumatic Bushing-Anvil Shank

Price $26.58
KF136485 Chicago Pneumatic Shield-Nose KF136485 Chicago Pneumatic Shield-Nose

KF136485 Chicago Pneumatic Shield-Nose

Price $8.67
KF136490 Chicago Pneumatic Seal-Oil KF136490 Chicago Pneumatic Seal-Oil

KF136490 Chicago Pneumatic Seal-Oil

Price $7.16
KF136504 Chicago Pneumatic Pin-Liner Dowel KF136504 Chicago Pneumatic Pin-Liner Dowel

KF136504 Chicago Pneumatic Pin-Liner Dowel

Price $7.11
KF136506 Chicago Pneumatic Shank-Anvil KF136506 Chicago Pneumatic Shank-Anvil

KF136506 Chicago Pneumatic Shank-Anvil

Price $70.79
KF137787 Chicago Pneumatic Pin-Anvil Hammer KF137787 Chicago Pneumatic Pin-Anvil Hammer

KF137787 Chicago Pneumatic Pin-Anvil Hammer

Price $15.80
KF137788 Chicago Pneumatic Cage-Hammer KF137788 Chicago Pneumatic Cage-Hammer

KF137788 Chicago Pneumatic Cage-Hammer

Price $54.53
KF137810 Chicago Pneumatic Blade Set-Rotor KF137810 Chicago Pneumatic Blade Set-Rotor

KF137810 Chicago Pneumatic Blade Set-Rotor

Price $41.29
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
R086991 Chicago Pneumatic Pin-Roll .188x1.00 R086991 Chicago Pneumatic Pin-Roll .188x1.00

R086991 Chicago Pneumatic Pin-Roll .188x1.00

Price $7.17
S008613 Chicago Pneumatic Ball-Steel .156"Dia S008613 Chicago Pneumatic Ball-Steel .156"Dia

S008613 Chicago Pneumatic Ball-Steel .156"Dia

Price $5.34
S065618 Chicago Pneumatic Ball Bearing S065618 Chicago Pneumatic Ball Bearing

S065618 Chicago Pneumatic Ball Bearing

Price $22.13
S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

Price $5.33
S091250 Chicago Pneumatic Lockwasher (Each) S091250 Chicago Pneumatic Lockwasher (Each)

S091250 Chicago Pneumatic Lockwasher #10

Price $3.92
