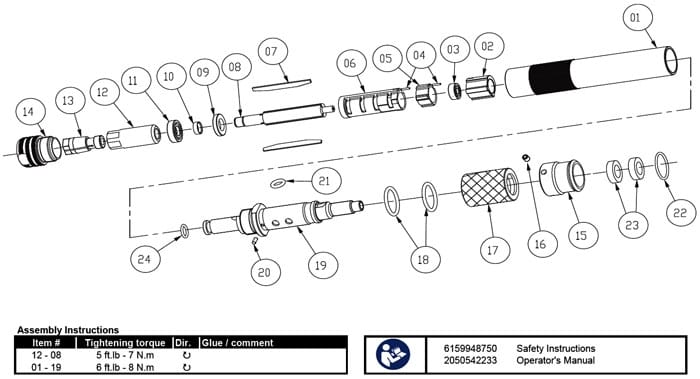

Chicago Pneumatic CP3000-600CR Die Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
1
2050548513
Housing (engraved)
1
2
2050548523
Bearing cover
1
6
2050548593
Cylinder
1
8
2050548573
Rotor
1
12
2050548533
Chuck body
1
-
2050548553
Collet (1/8")
1
13
2050548563
Collet (3mm)
1
-
2050548543
Spindle bearing cover
1
14
2050548603
Throttle valve
1
19
5412060277
Warning label
1
A
2050548433 Rear Housing Kit
-
15
-
Exhaust hose joint
1
16
-
Set screw
3
17
-
Throttle handle
1
B
2050548443 Upper Plate Kit
-
3
-
Ball bearing
1
4
-
Pin
2
5
-
Cylinder upper plate
1
C
2050548453 Rear Plate Kit
-
9
-
Cylinder lower plate
1
10
-
Adjusting Collar
1
11
-
Ball bearing 1
D
2050548463 Bearing Kit
-
3
-
Ball bearing 1
11
-
Ball bearing
1
F
2050548503 Small Parts Kit
-
4
-
Pin
2
16
-
Set screw
3
20
-
Needle roller
1
G
2050548613 Tune-up Kit
-
7
2050548483 Blades (set of 3)
1
18
-
O-Ring 2
21
-
O-Ring 1
22
-
O-Ring 1
23
-
Muffler pad
2
24
-
O-Ring
1
Sort By:
2050548433 Chicago Pneumatic Rear Housing Kit 2050548433 Chicago Pneumatic Rear Housing Kit

2050548433 Chicago Pneumatic Rear Housing Kit

Price $81.11
2050548443 Chicago Pneumatic Upper Plate Kit 2050548443 Chicago Pneumatic Upper Plate Kit

2050548443 Chicago Pneumatic Upper Plate Kit

Price $89.93
2050548453 Chicago Pneumatic Rear Plate Kit 2050548453 Chicago Pneumatic Rear Plate Kit

2050548453 Chicago Pneumatic Rear Plate Kit

Price $107.59
2050548463 Chicago Pneumatic Bearing Kit 2050548463 Chicago Pneumatic Bearing Kit

2050548463 Chicago Pneumatic Bearing Kit

Price $44.73
2050548483 Chicago Pneumatic Blades Kit (Set Of 3) 2050548483 Chicago Pneumatic Blades Kit (Set Of 3)

2050548483 Chicago Pneumatic Blades Kit (Set Of 3)

Price $17.71
2050548503 Chicago Pneumatic Small Parts Kit 2050548503 Chicago Pneumatic Small Parts Kit

2050548503 Chicago Pneumatic Small Parts Kit

Price $8.65
2050548513 Chicago Pneumatic Housing(Engraved) 2050548513 Chicago Pneumatic Housing(Engraved)

2050548513 Chicago Pneumatic Housing(Engraved)

Price $64.86
2050548523 Chicago Pneumatic Bearing Cover 2050548523 Chicago Pneumatic Bearing Cover

2050548523 Chicago Pneumatic Bearing Cover

Price $50.09
2050548533 Chicago Pneumatic Chuck Body 2050548533 Chicago Pneumatic Chuck Body

2050548533 Chicago Pneumatic Chuck Body

Price $157.45
2050548543 Chicago Pneumatic Spindle Bearing Cover 2050548543 Chicago Pneumatic Spindle Bearing Cover

2050548543 Chicago Pneumatic Spindle Bearing Cover

Price $21.44
2050548553 Chicago Pneumatic Collet 1/8" 2050548553 Chicago Pneumatic Collet 1/8"

2050548553 Chicago Pneumatic Collet 1/8"

Price $35.39
2050548563 Chicago Pneumatic Collet 3 mm 2050548563 Chicago Pneumatic Collet 3 mm

2050548563 Chicago Pneumatic Collet 3 mm

Price $35.39
2050548573 Chicago Pneumatic Rotor 2050548573 Chicago Pneumatic Rotor

2050548573 Chicago Pneumatic Rotor

Price $61.58
2050548593 Chicago Pneumatic Cylinder 2050548593 Chicago Pneumatic Cylinder

2050548593 Chicago Pneumatic Cylinder

Price $84.42
2050548603 Chicago Pneumatic Throttle Valve 2050548603 Chicago Pneumatic Throttle Valve

2050548603 Chicago Pneumatic Throttle Valve

Price $100.22
2050548613 Chicago Pneumatic Tune-Up Kit Cp3000-600Cr 2050548613 Chicago Pneumatic Tune-Up Kit Cp3000-600Cr

2050548613 Chicago Pneumatic Tune-Up Kit Cp3000-600Cr

Price $30.96
CP3000-600CR Chicago Pneumatic 1/8" (3.2mm) Collet 0.12Hp Die Grinder CP3000-600CR Chicago Pneumatic 1/8" (3.2mm) Collet 0.12Hp Die Grinder

CP3000-600CR Chicago Pneumatic 1/8" (3.2mm) Collet 0.12Hp Die Grinder - Industrial Production applications pencil grinder. Great durability, operator comfort and high precision.

Price $454.65
CP3000-600CR Chicago Pneumatic 3mm Collet 0.12Hp Die Grinder CP3000-600CR Chicago Pneumatic 3mm Collet 0.12Hp Die Grinder

CP3000-600CR Chicago Pneumatic 3mm Collet 0.12Hp Die Grinder - Industrial Production applications pencil grinder. Great durability, operator comfort and high precision.

Discontinued
