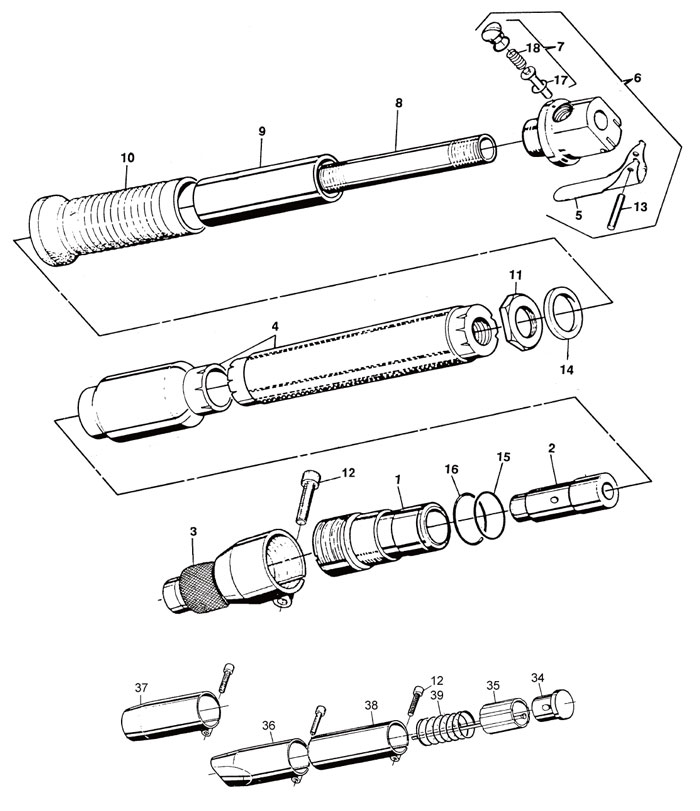

Chicago Pneumatic B20-0 Long Reach Scaler Repair Parts



Index
No.
Part No. Description No.
Req'd
1
113.522
Body cylinder
1
2
143.524
Piston
1
3
6152505260
5/8" hex. shank chisels/scrape
1
4
320.515
Cover assembly  (B20)
1
4
320.519
Cover assembly  (B20-00) 1
4
320.520
Cover assembly  (B20-0) 1
4
320.521
Cover assembly  (B20-1) 1
5
321.574
Throttle lever
1
6
395.518
Valve body assembly (5-7-13)
1
7
399.745
Valve stem set (17-18)
1
8
570.537
Inner tube
1
9
570.538
Handle tube
1
10
570.539
Grip
1
11
607.518
Locknut
1
12
616.05
Screw
1
13
637.116
Roll pin
1
14
650.29
Sealing washer
1
15
658.242
O-Ring
1
16
658.243
O-Ring 1
17
658.239
O-Ring 1
18
681.578
Valve spring
1
-
-
Nameplate
1
Sort By:
Page of 1
113.522 Chicago Pneumatic Body Cylinder B20
113.522 Chicago Pneumatic Body Cylinder B20
Price $694.32

113.522 Chicago Pneumatic Body Cylinder B20 more info
143.524 Chicago Pneumatic Piston B19M
143.524 Chicago Pneumatic Piston B19M
Price $167.67

143.524 Chicago Pneumatic Piston B19M more info
395.518 Chicago Pneumatic Valve
395.518 Chicago Pneumatic Valve
Price $398.26

395.518 Chicago Pneumatic Valve more info
399.745 Chicago Pneumatic Assembly Kit
399.745 Chicago Pneumatic Assembly Kit
Price $76.36

399.745 Chicago Pneumatic Assembly Kit more info
570.539 Chicago Pneumatic Handle Grip
570.539 Chicago Pneumatic Handle Grip
Price $39.17

570.539 Chicago Pneumatic Handle Grip more info
6152505260 Chicago Pneumatic Hex Tool Retainer
6152505260 Chicago Pneumatic Hex Tool Retainer
Price $227.95

6152505260 Chicago Pneumatic Hex Tool Retainer more info
616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap
616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap
Price $2.18

616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap more info
658.239 Chicago Pneumatic O Ring B15M
658.239 Chicago Pneumatic O Ring B15M
Price $10.08

658.239 Chicago Pneumatic O Ring B15M more info
658.242 Chicago Pneumatic O Ring B19M
658.242 Chicago Pneumatic O Ring B19M
Price $10.08

658.242 Chicago Pneumatic O Ring B19M more info
681.578 Chicago Pneumatic Valve Spring
681.578 Chicago Pneumatic Valve Spring
Price $4.41

681.578 Chicago Pneumatic Valve Spring more info
B20-0 Chicago Pneumatic Long Reach Scaler (43") with 5/8" Hexagonal Shank
B20-0 Chicago Pneumatic Long Reach Scaler (43") with 5/8" Hexagonal Shank
Price $661.89

B20-0 Chicago Pneumatic Long Reach Scaler (43") with 5/8" Hexagonal Shank - Three tools in one: chipping, scraping, de-scaling using wide range of accessories. High efficiancy low air consumption. Ideal for chipping, scraping, de-scaling. more info
