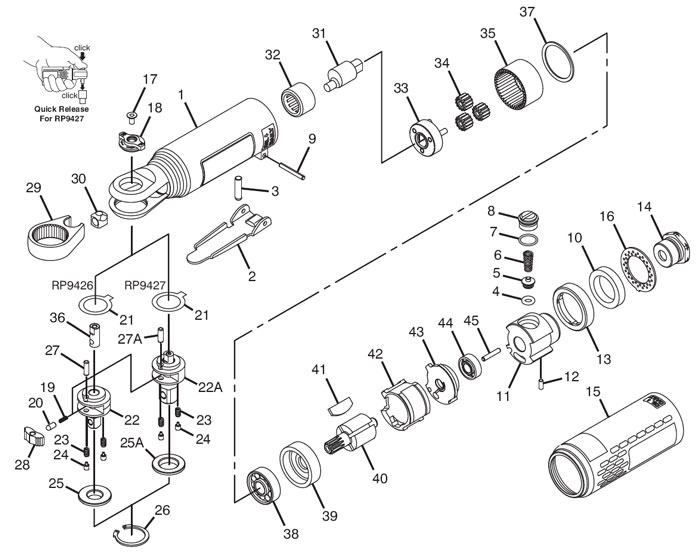

CP9427 Mini Air Ratchet Repair Parts


Index
No.
 Part No.
Description
No.
Req'd
1
2050526543
Housing
1
2
2050526553 Trigger
1
3
2050526563 Valve Stem
1
4
2050526573 O-Ring 1
5
2050526583 Discharge Sheet 1
6
2050526593 Discharge Sheet Spring 1
7
2050526603 O-Ring 1
8
2050526613 Discharge Sheet Seal 1
9
2050526623 Spring Pin 1
10
2050526633 Muffler 1
11
2050526643 Valve Unit 1
12
2050526653 Pin 1
13
2050526663 Packing 1
14
2050526673 Air Inlet 1
15
2050526683 Handle Grip 1
16
2050526693 Deflector 1
17
2050526703 Counter Sunk Screw 1
18
2050526713 Reverse Lever A 1
19
2050526723 Reverse Spring
1
20
2050526743 Reverse Pin
1
21
2050526753 Yoke - Washer
1
22
2050526763 Anvil Assembly
1
22A
2050526773 Anvil B Assembly
1
23
2050526783 Thrust Washer Spring
2
24
2050526793 Pin
2
25
2050526803 Anvil - Washer 1
25A
2050526813 Anvil - Washer
1
26
2050526823 In-Concentric Ring
1
27
2050526833
Planet Pin
1
27A
2050526843 Planet Pin
1
28
2050526853 Ratchet Pawl
1
29
2050526863 Yoke
1
30
2050526873 Drive Bushing
1
31
2050526883 Motor Shaft Balancer
1
32
2050526893 Needle Bearing
1
33
2050526903 Planet Cage
1
34
2050526913 Planet Gear
3
35
2050526923 Internal Gear
1
36
2050526933 Reverse Lever B
1
37
2050526943 Spring - Washer
1
38
2050526953 Bearing
1
39
2050526963 Front Bearing Plate
1
40
2050526973 Rotor
1
41
2050526983 Blade Set
4
42
2050526993 Cylinder
1
43
2050527003 Rear End Plate
1
44
2050527013 Bearing
1
45
2050527023 Spring Pin
1
-
2050527033 Tune-Up Kit
(Incl: 4, 5, 6, 7, 20, 21, 23, 24, 26, 41)
-
2050527043 Ratchet Head Replacement Kit (RP9426)
Incl: 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 36)
-
2050527053 Ratchet Head Replacement Kit (RP9427)
(Incl: 19, 20, 21, 22A, 23, 24, 25A, 26, 27A, 28)
