6009 Associated Battery Charger Parts List



MODEL 6009 REPAIR PARTS
Diagram # Description Part Number
1 Front Foot 605671
2 Axle w/nuts (2) 610052
3 Wheels w/nuts (2) 605672
4 Rectifier Assembly 610122
5 Transformer
610237
6 Fan Blade 610189
7 Fan Motor 610190
8 AC Circuit Breaker 603597
9 DC Circuit Breaker
610069
10 Amps Charge Meter 605204
11 Switch w/knob (1) 611187
12 Timer With Knob 610389
13 AC Cord
611248
14 DC Cable Set With Clamps 610258
15 Stop/Go Lite 604579
16 Clamps (1 pair With Jaws) 6202
17 Jaw Kit (repairs 1 clamp) 610970
18 Base 610054
19 Front Panel 610609
20 Back Panel 610610
21 Side Panel 610152
22 Side Panel 610151
- Capacitor assembly
610785
- -
-
Not Shown


Top Panel 610149

Handle 605213

MAINTENANCE INSTRUCTIONS
Worn clamps and jaws should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of jaw and clamp kits. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
600121 Associated Meter Cover 600121 Associated Meter Cover

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others

Price $10.02

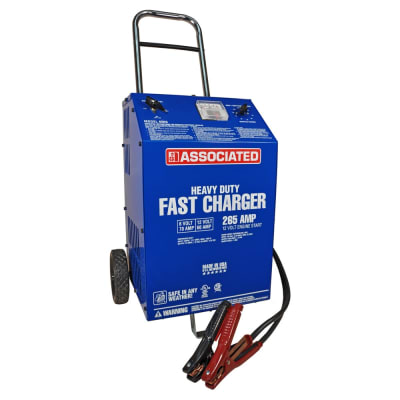

6009 Associated 70/60/2/265 Amp 6/12 Volt Automotive Battery Charger W/ Start 6009 Associated 70/60/2/265 Amp 6/12 Volt Automotive Battery Charger W/ Start

Made In The USAThe Associated 6009 automotive charger has the highest performance crank assist of any 60-amp charger on the market. Listed for indoor and outdoor use by both UL and cUL, "SAFE IN ANY WEATHER". This fast starter has more features and higher ratings for the price than any competitive charger in its class. Powerful Performance with 6/12 Volt 70/60/2 Amps 265 Amp Boost Assist. Rejuvenates all standard & maintenance-free 6/12 volt batteries. Fast charger with the highest performance crank assist of any 60 Amp charger on the market.

Discontinued See 6009AGM

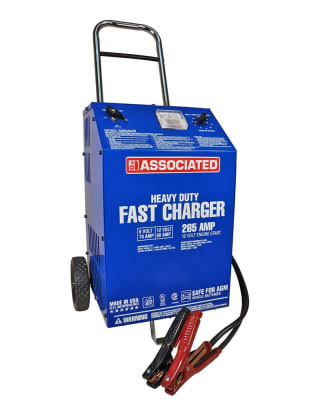

6009AGM Associated 70/60/2/265 Amp 6/12 Volt Automotive Battery Charger W/ Start 6009AGM Associated 70/60/2/265 Amp 6/12 Volt Automotive Battery Charger W/ Start

Made In The USAThe Associated 6009AGM automotive charger has the highest performance crank assist of any 60-amp charger on the market. Listed for indoor and outdoor use by both UL and cUL, "SAFE IN ANY WEATHER". This fast starter has more features and higher ratings for the price than any competitive charger in its class. Powerful Performance with 6/12 Volt 70/60/2 Amps 265 Amp Boost Assist. Rejuvenates all standard & maintenance-free 6/12 volt batteries. Fast charger with the highest performance crank assist of any 60 Amp charger on the market.

Price $596.58
603147 Associated Pointer Knob (Press-On) 603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $10.95
603597 Associated A/C Circuit Breaker 603597 Associated A/C Circuit Breaker

603597 Associated A/C Circuit Breaker

Price $41.67
604579 Associated Stop/Go Polarity Indicator Assembly 604579 Associated Stop/Go Polarity Indicator Assembly

STOP/GO LITE Assembly will upgrade any battery charger clamp kit or repair an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $33.71
604592 Associated Stop/Go Polarity Indicator Lamp 604592 Associated Stop/Go Polarity Indicator Lamp

604592 Associated Booster Cables STOP/GO LITE Assembly. This is the replacement light only (does not include resistor See 604579 for complete kit). For repair of an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $29.45
605204 Associated Ammeter 0-100 Amp Range W/ Boost 605204 Associated Ammeter 0-100 Amp Range W/ Boost

Associated 605204 Ammeter 0-100 Amp Range w/ Boost. Includes Sealing Gasket, Mounting Template and mounting hardware.

Price $29.34
605206 Associated A/C Cord 16-3 605206 Associated A/C Cord 16-3

605206 Associated A/C Cord 16-3

Discontinued
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $52.11
605671 Associated Front Leg With Screws 605671 Associated Front Leg With Screws

Front Leg With Screws

Price $31.87
605672 Associated Wheel Kit With Nuts (Set Of Two Plastic) 605672 Associated Wheel Kit With Nuts 6" Plastic

605672 Associated Wheel Kit With Nuts 6" Plastic 3/8" hub diameter

Price $36.09
605675 Associated Rotary Switch Multi Knob Kit 605675 Associated Rotary Switch Multi Knob Kit

605675 Associated Rotary Switch Multi Knob Kit. This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob of your choice and discard the rest. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

When Discontinued See 611187

Discontinued See 611187
610043 Associated 3/8 Axle Cap (Each) 610043 Associated 3/8 Axle Cap (Each)

610043 Associated 3/8 Axle Cap (Each)

Price $2.84
610054 Associated Universal Base 6009 (See Notes) 610054 Associated Universal Base 6009 (See Notes)

610054 Associated Universal Base 6009 (UNIVERSAL BASE 6009 (SEE 610498 Base if transformer has four "L" shaped legs.)

Price $22.33
610069 Associated 50 Amp DC Circuit Breaker 610069 Associated 50 Amp DC Circuit Breaker

50 Amp DC Circuit Breaker

Price $26.50
Associated 610122 Rectifier Installation Kit. The Highest rated 20 Diode Rectifier in the market, completely assembled. 610122 Associated Rectifier

Associated 610122 Rectifier Installation Kit. The Highest rated 20 Diode Rectifier in the market, completely assembled.

Discontinued See 610364
610180 Associated Knob 610180 Associated Knob

Associated 610180 KNOB

Price $21.92
610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $14.39
610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $62.04
610201 Associated Transformer 44-84 6009 610201 Associated Transformer 44-84 6009

610201 Associated Transformer 44-84 6009

Price $356.56
610242 Associated Thermal Fuse Link 100 Degree Celsius includes two crimps for attachment to wires. 610242 Associated Thermal Fuse Link

Thermal Fuse Link 100 Degree Celsius includes two crimps for attachment to wires.

Price $13.08
610258 Associated DC Cable Set 7 ft 4 AWG 610258 Associated DC Cable Set 7 ft 4 AWG

610258 Associated DC Cable Set 7 ft 4 AWG , Replaces 605677

Price $156.26
610364 Associated Rectifier 610364 Associated Rectifier

Associated 610364 Rectifier Installation Kit. The Highest rated Rectifier in the market, completely assembled and includes mounting hardware and insulators.

Price $60.21
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit 610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Discontinued
610498 Associated Universal Base W/Transformer Leg Mounting Holes 610498 Associated Universal Base W/Transformer Leg Mounting Holes

Universal Base W/Transformer Leg Mounting Holes

Price $22.29
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $7.58
610518 Associated Rectifier Mounts 610518 Associated Rectifier Mounts

610518 Associated Rectifier Mounts

Price $8.55
610612 Associated A/C Cord Kit Uk 610612 Associated A/C Cord Kit Uk

610612 Associated A/C Cord Kit Uk

Price $87.27
610753 Associated Chrome Handle 610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213
610895 Associated Timer W/Knob 610895 Associated 90 Minute Mechanical Timer With Knob

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.

Discontinued See 611254

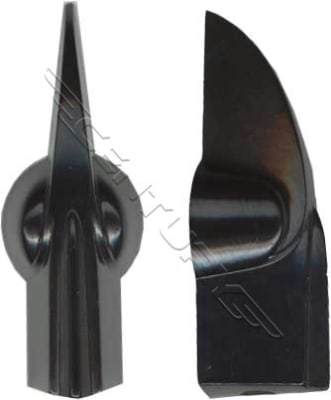

610930 Associated Pointer Knob (Set Screw) 610930 Associated Pointer Knob (Set Screw)

Associated Pointer Knob with set screw. Fits 1/2 & 3/4 round shaft switches and timers.

Price $7.47
610931 Associated Knob 610931 Associated Knob With Set Screw

610931 Associated Knob with set screw for controls with 1/4" Stem.

Price $10.95
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob 611187 Associated 8 Position Rotary Selector Switch With Pointer Knob

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

Price $44.18
611245 Associated 120 Minute Electronic Timer with Knob 611245 Associated 120 Minute Electronic Timer with Knob

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $67.74
611248 Associated A/C Power Cord 611248 Associated A/C Power Cord 16ga 84"

611248 Associated A/C Power Cord 16ga 84" 3 conductor grounded with strain relief bushing.

Price $37.76
611249 Associated Front Panel 6009 120 Minute Timer 611249 Associated Front Panel 6009 120 Minute Timer

Front Panel 6009 120 Minute Timer

Price $57.45
611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit 611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit

611254 Associated 120 Minute Electronic Timer with Knob, retrofit for units with a mechanical timer. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $76.68
6200 Associated Side Terminal Adapter Pair 6200 Associated Side Terminal Adapter Pair

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.

Price $7.34
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair) 6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

Price $37.35
6204 Associated 500 Amp Jaw Kit 6204 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Discontinued See 610970
