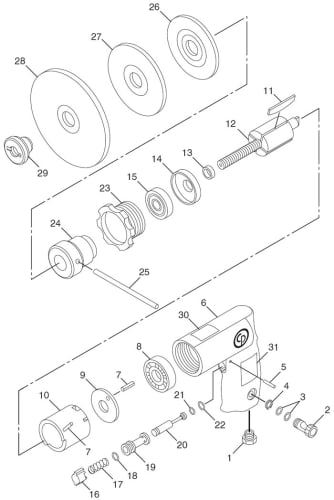

| Index No. | Part No. | Description | No. Req'd |
| 1 | KF136541 | Bushing- Air Inlet | 1 |
| 2 | KF136511 | Regulator- Air | 1 |
| 3 | KF131709 | O-Ring | 2 |
| 4 | KF136542 | Ring- Retaining (Ext.) | 1 |
| 5 | KF137213 | Pin- Roll | 1 |
| 6 | KF136510 | Housing- Motor | 1 |
| 7 | KF125279 | Pin- Roll | 2 |
| 8 | C069511 | Bearing- Ball | 1 |
| 9 | KF136533 | Plate-Rear End | 1 |
| 10 | KF136540 | Liner Incl Index No: 7 | 1 |
| 11 | KF138245 | Blade- Rotor Set (4) | 1 |
| 12 | KF136535 | Rotor | 1 |
| 13 | KF136538 | Spacer | 1 |
| 14 | KF136534 | Plate- Front End | 1 |
| 15 | S026055 | Bearing- Ball | 1 |
| 16 | KF137212 | Trigger- Throttle | 1 |
| 17 | KF137219 | Spring- Throttle | 1 |
| 18 | KF137226 | O-Ring | 1 |
| 19 | KF136544 | Bushing- Throttle | 1 |
| 20 | KF136543 | Valve- Throttle | 1 |
| 21 | KF125427 | O-Ring | 1 |
| 22 | CA146599 | O-Ring | 2 |
| 23 | KF136537 | Nut- Clamp | 1 |
| 24 | KF136539 | Hub | 1 |
| 25 | KF137217 | Rod- Hub | 1 |
| 26 | KF137216 | Plate- Backing (3") | 1 |
| 27 | KF137215 | Plate- Backing (4") | 1 |
| 28 | KF137214 | Plate- Backing (5") | 1 |
| 29 | KF137218 | Nut- Retaining | 1 |
| 30 | KF141292 | Decal- Warning (Not Shown) | 1 |
| 31 | CA144007 | Decal- Warning | 1 |
| - | KF141291 | Tag- Warning (Not Shown) | 1 |
