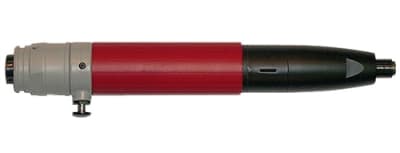

Chicago Pneumatic CP2010 Screwdriver Repair Parts

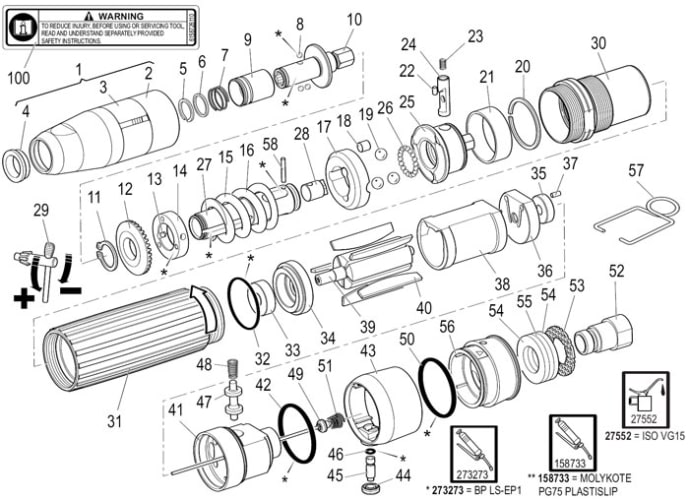

Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
2050480833
|
Clutch module case complete
|
1
|
2
|
2050480053 |
Clutch case
|
1
|
3
|
161253
|
Clip, spring
|
1
|
4
|
465873
|
Bearing
|
1
|
5
|
443773
|
Circlip
|
1
|
6
|
2050481893 |
Ring
|
1
|
7
|
301013
|
Spring
|
1
|
8
|
280313
|
Ball
|
3
|
9
|
2050481863 |
Sleeve
|
1
|
10
|
465633
|
Output spindle
|
1
|
11
|
218453
|
Circlip
|
1
|
12
|
465663
|
Ring, adjusting
|
1
|
13
|
280313
|
Ball
|
4
|
14
|
465673
|
Ring, locking
|
1
|
15
|
465783
|
Spring, clutch
|
1
|
16
|
2050486253 |
Spring, clutch (0.7 - 2.2 Nm)
|
1
|
17
|
465683
|
Cam follower
|
1
|
18
|
465743
|
Roller
|
3
|
19
|
093893
|
Ball, (6mm)
|
3
|
20
|
465793
|
Circlip
|
1
|
21
|
2050482073 |
Sleeve, retaining
|
1
|
22
|
2050482093 |
Roller
|
1
|
23
|
307123
|
Spring
|
1
|
24
|
2050482083 |
Latch pin
|
1
|
25
|
465693
|
Cam, clutch
|
1
|
26
|
280313
|
Ball
|
18
|
27
|
465653
|
Spindle
|
1
|
28
|
465713
|
Star cam
|
1
|
29
|
029932
|
Clutch key
|
1
|
30
|
2050481283 |
Gearbox
|
1
|
31
|
2050480203 |
Motor case
|
1
|
32
|
369163
|
O-Ring
|
1
|
33
|
465983
|
Bearing, front
|
1
|
34
|
2050482113 |
Housing, front bearing
|
1
|
35
|
279863
|
Bearing, rear
|
1
|
36
|
2050482123 |
Housing, rear bearing
|
1
|
37
|
301043
|
Pin
|
1
|
38
|
465963
|
Cylinder
|
1
|
39
|
465953
|
Rotor, radial
|
1
|
40
|
465973
|
Blade, radial standard
|
5
|
41
|
466283
|
Housing valve
|
1
|
42
|
200763
|
O-Ring |
1
|
43
|
2050482383 |
Collar button
|
1
|
44
|
242993
|
Button, black
|
1
|
45
|
466363
|
Plunger, button
|
1
|
46
|
251733
|
O-Ring |
1
|
47
|
2050482153 |
Valve, reverse
|
1
|
48
|
466463
|
Spring
|
1
|
49
|
466733
|
Valve, complete
|
1
|
50
|
200763
|
O-Ring |
1
|
51
|
466453
|
Spring
|
1
|
52
|
2050482403 |
Bolt, air inlet, complete
|
1
|
53
|
2050482193 |
Baffle, exhaust
|
1
|
54
|
466823
|
Silencer
|
2
|
55
|
466793
|
Silencer
|
1
|
56
|
2050480223 |
Housing, exhaust
|
1
|
57
|
2050482253 |
Suspension bail
|
1
|
58
|
205173
|
Pin
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
