You are here: Home > Chicago Pneumatic Air Impact Wrench Repair Parts > Chicago Pneumatic 1" Drive Impact Wrenches > Chicago Pneumatic CP7779 1" Impact Wrench Repair Parts

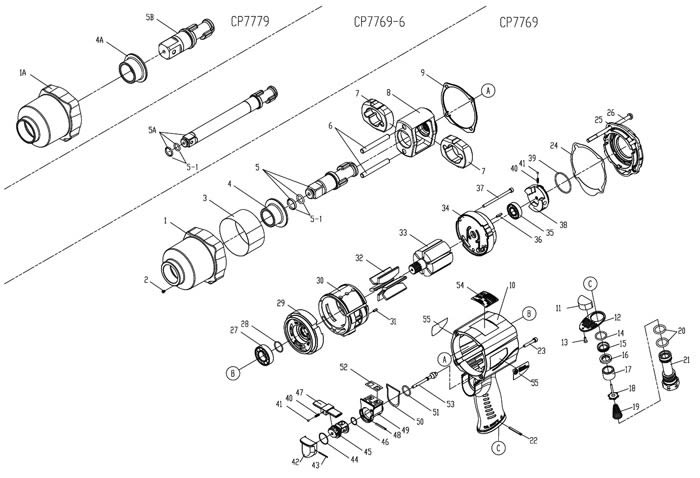

CP7779 1" Impact Wrench Repair Parts


Index
No.
Part No.
Description
No.
Req'd
-
8940169886 Clutch Housing Kit (CP7769 & 7769-6)
1

Hammer Case CP7769
1
2

Hammer Case Grease Fitting
1
3

Steel Ring
1
4

Hammer Case Bushing
1
40

Positioning Spring 2
41

Steel Ball 2
-
8940169887 Clutch Housing Kit (CP7779)
1A

Hammer Case
1
2

Hammer Case Grease Fitting
1
3

Steel Ring
1
4A

Hammer Case Bushing
1
40

Positioning Spring 2
41

Steel Ball 2
5
8940168682
Anvil Unit CP7769
1
5A
8940168683
Anvil Unit CP7769-6
1
5B
8940168684
Anvil Unit CP7779
1
5-1
8940168715
Socket Retaining Ring Kit CP7769
1
6
2050524343
Hammer Pin
2
7
8940168685
Hammer
2
8
2050524363
Hammer Frame
1
10
8940168687
Housing
1
11
8940168688
Muffler
1
-
8940169888 Throttle Kit
14

O-Ring
1
15

Insert Bushing
1
16

Seal Unit
1
17

Bushing
1
18

Tip Valve
1
19

Conical Spring
1
-
8940169889 Air Inlet Kit
12
8940168689
Deflector
1
13

Tap Bolt
1
20

O-Ring 2
21

Air Inlet
1
22

Spring Pin 1
30
8940168697
Cylinder
1
32
2050524483
Rotor Blades Set
6
33
8940168699
Rotor
1
-
8940169890 Front Plate Kit
27
2050524443
Bearing
1
28

O-Ring 1
29

Front Bearing Plate
1
-
8940169891 Rear Plate Kit
31

Spring Pin 1
34

Rear Bearing Plate
1
35
2050521283
Bearing
1
36

Spring Pin 1
37

Hex. Soc. Hd. Bolt
3
-
8940169892 Rear Cover Kit
24

Rear Cover Gasket
1
25

Rear Cover
1
26

Half Round Hd. Hex. Bolt
4
38

Regulator
1
39

O-Ring 1
40

Positioning Spring 2
41

Steel Ball 2
-
8940169893 Trigger Kit
23

Bolt Assembly
1
40

Positioning Spring 2
41

Steel Ball 2
42

Trigger
1
43

Spring Pin 1
44

O-Ring 1
45

Reverse Valve
1
46

O-Ring 1
47

Lever
1
48

Spring Pin 1
49

Body - Throttle Valve
1
50

Regulator Base Gasket
1
51

O-Ring 1
52

Packing - Cylinder
1
53

Trigger Tip
1
54
8940169798
CP7769 Nameplate
1
54A
8940169799
CP7769-6 Nameplate
1
54B
8940169800
CP7779 Nameplate
1
55

Side Label
1
-
8940169894 Gasket Kit
9

Hammer Case Gasket
1
24

Rear Cover Gasket
1
-
8940169895 Tune-Up Kit
9

Hammer Case Gasket
1
14

O-Ring 1
20

O-Ring 2
24

Rear Cover Gasket
1
28

O-Ring 1
32

Blade Set
6
39

O-Ring 1
44

O-Ring 1
46

O-Ring 1
50

Regulator Base Gasket
1
51

O-Ring 1
52

Packing - Cylinder
1
-
8940169896 Bearing Kit
27

Bearing 1
35

Bearing
1
-
8940169897 Small Parts Kit
13

Tap Bolt
1
22

Spring Pin 1
23

Bolt Assembly
1
31

Spring Pin 1
36

Spring Pin 1
40

Positioning Spring
2
41

Steel Ball
2
43

Spring Pin 1
48

Spring Pin
1
Sort By:
2050524343 Chicago Pneumatic Pin (Set Of 2) 2050524343 Chicago Pneumatic Pin (Set Of 2)

2050524343 Chicago Pneumatic Pin (Set Of 2)

Price $7.18
2050524363 Chicago Pneumatic Cage 2050524363 Chicago Pneumatic Cage

2050524363 Chicago Pneumatic Cage

Price $188.72
2050524443 Chicago Pneumatic Bearing 2050524443 Chicago Pneumatic Bearing

2050524443 Chicago Pneumatic Bearing

Price $26.53
2050524483 Chicago Pneumatic Blade Set (6) 2050524483 Chicago Pneumatic Blade Set (6)

2050524483 Chicago Pneumatic Blade Set (6)

Price $50.14
8940168682 Chicago Pneumatic Anvil Unit 8940168682 Chicago Pneumatic Anvil Unit

8940168682 Chicago Pneumatic Anvil Unit

Price $107.60
8940168683 Chicago Pneumatic Anvil Unit Cp7769-6 8940168683 Chicago Pneumatic Anvil Unit Cp7769-6

8940168683 Chicago Pneumatic Anvil Unit Cp7769-6

Price $170.98
8940168684 Chicago Pneumatic Anvil Unit Cp7779 8940168684 Chicago Pneumatic Anvil Unit Cp7779

8940168684 Chicago Pneumatic Anvil Unit Cp7779

Price $125.35
8940168685 Chicago Pneumatic Hammer (Set Of 2) 8940168685 Chicago Pneumatic Hammer (Set Of 2)

8940168685 Chicago Pneumatic Hammer (Set Of 2)

Price $201.99
8940168687 Chicago Pneumatic Housing 8940168687 Chicago Pneumatic Housing

8940168687 Chicago Pneumatic Housing (Black). Will not fit "D" or "E" Red models. (See 8940176432 Handle, 8940176434 Reverse button kit & 8940176437 Screw Kit).

Discontinued
8940168688 Chicago Pneumatic Muffler 8940168688 Chicago Pneumatic Muffler

8940168688 Chicago Pneumatic Muffler

Price $5.64
8940168697 Chicago Pneumatic Cylinder 8940168697 Chicago Pneumatic Cylinder

8940168697 Chicago Pneumatic Cylinder

Price $72.22
8940168699 Chicago Pneumatic Rotor 8940168699 Chicago Pneumatic Rotor

8940168699 Chicago Pneumatic Rotor

Price $162.18
8940168715 Chicago Pneumatic Socket Retaining Kit 8940168715 Chicago Pneumatic Socket Retaining Kit

8940168715 Chicago Pneumatic Socket Retaining Kit

Price $3.89
8940169886 Chicago Pneumatic Clutch Housing Kit Cp7769 & -6 8940169886 Chicago Pneumatic Clutch Housing Kit Cp7769 & -6

8940169886 Chicago Pneumatic Clutch Housing Kit Cp7769 & -6

Discontinued
8940169887 Chicago Pneumatic Clutch Housing Kit Cp7779 8940169887 Chicago Pneumatic Clutch Housing Kit Cp7779

8940169887 Chicago Pneumatic Clutch Housing Kit Cp7779

Price $134.13
8940169888 Chicago Pneumatic Throttle Kit 8940169888 Chicago Pneumatic Throttle Kit

8940169888 Chicago Pneumatic Throttle Kit

Price $12.68
8940169889 Chicago Pneumatic Air Inlet Kit 8940169889 Chicago Pneumatic Air Inlet Kit

8940169889 Chicago Pneumatic Air Inlet Kit

Price $30.99
8940169890 Chicago Pneumatic Front Plate Kit 8940169890 Chicago Pneumatic Front Plate Kit

8940169890 Chicago Pneumatic Front Plate Kit

Price $73.75
8940169891 Chicago Pneumatic Rear Plate Kit 8940169891 Chicago Pneumatic Rear Plate Kit

8940169891 Chicago Pneumatic Rear Plate Kit

Price $95.11
8940169892 Chicago Pneumatic Rear Cover Kit 8940169892 Chicago Pneumatic Rear Cover Kit

8940169892 Chicago Pneumatic Rear Cover Kit

Discontinued
8940169893 Chicago Pneumatic Trigger Kit 8940169893 Chicago Pneumatic Trigger Kit

8940169893 Chicago Pneumatic Trigger Kit

Price $116.48
8940169894 Chicago Pneumatic Gasket Kit 8940169894 Chicago Pneumatic Gasket Kit

8940169894 Chicago Pneumatic Gasket Kit

Price $14.20
8940169895 Chicago Pneumatic Tune Up Kit 8940169895 Chicago Pneumatic Tune Up Kit

8940169895 Chicago Pneumatic Tune Up Kit

Price $75.18
8940169896 Chicago Pneumatic Bearing Kit 8940169896 Chicago Pneumatic Bearing Kit

8940169896 Chicago Pneumatic Bearing Kit

Price $45.72
8940169897 Chicago Pneumatic Small Parts Kit 8940169897 Chicago Pneumatic Small Parts Kit

8940169897 Chicago Pneumatic Small Parts Kit

Price $5.64
CP7779 Chicago Pneumatic 1" Impact Wrench S2S Composite CP7779 Chicago Pneumatic 1" Impact Wrench S2S Composite

CP7779 1" Impact Wrench S2S Composite - This 1" square drive impact wrench has some outstanding features like: a dual retainer, 1,440 ft-lbs of torque, a low consumption motor, lightweight yet durable construction and a full teasing trigger.

Price $736.00
CP7779D Chicago Pneumatic 1" Impact Wrench CP7779D Chicago Pneumatic 1" Impact Wrench

CP7779D Chicago Pneumatic 1" Impact Wrench. The most compact impact wrench in its class. High durability twin hammer mechanism with variable speed trigger. Lightweight and powerful. The most compact impact wrench in its class. High durability twin hammer mechanism with variable speed trigger. Lightweight and powerful.

Discontinued
