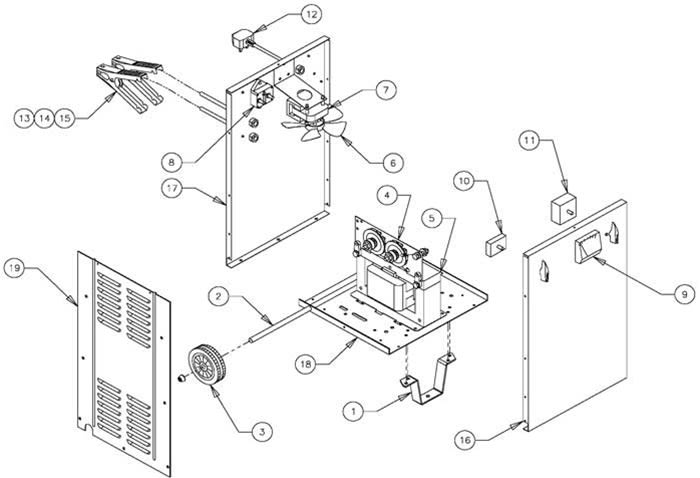

YAH123 Snap-On Battery Charger Parts List

Item Description Part No
1 Front Leg 605671
2 Axle With Nuts 610052
3 Wheel With Nuts 605672
4 Rectifier Assembly 610827
5 Transformer 610828
6 Fan Blade 610189
7 Fan Motor 610783
8 DC Circuit Breaker YAH123-AUS 610536
8 DC Circuit Breaker YAH123AS 610536
8 DC Circuit Breaker YAH123-UK 610573
9 Ammeter 610829
10 Switch With Knob 610894
11 Timer With Knob 610895
12 AC Cord YAH123-AUS 610830
12 AC Cord YAHI23AS 610831
12 AC Cord YAH123-UK 610832
13 DC Cable / Clamp Set 610896
14 Clamps 6202
15 Jaw Kit (Repairs 1 Clamp) 610970
16 Front Panel 610833
17 Back Panel YAH123-AUS 610597
17 Back Panel YAH123AS 610597
17 Back Panel YAH123-UK 610586
18 Base 610054
19 Left Side Panel (Facing Charger) 610835




Replacement parts not shown

Right Side Panel (Facing Charger) 610834

Capacitor Assembly 610785

Top Panel YAH123-AUS 610796

Top Panel YAH123AS 610796

Top Panel YAH123-UK 610796

Handle 605213
Sort By:
Page of 1
240000195 Silicone Heat Transfer Compound
240000195 Silicone Heat Transfer Compound
Price $2.65

Designed for use in transferring heat away from electrical and electronic devices such as; transistors, power diodes, semi-conductors, ballast's and thermocouple wells. High thermal conductivity, high dielectric constant, high dissipation factor, use with heat sinks or metal chassis, will not dry or harden. Contains zinc oxide and polydimethyl siloxane.

603147 Associated Pointer Knob (Press-On)
603147 Associated Pointer Knob (Press-On)
Price $7.95

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.
605213 Associated Chrome Handle
605213 Associated Chrome Handle
Price $50.43

Chrome Handle with screws and insulated clamp bar.
605671 Associated Front Leg With Screws
605671 Associated Front Leg With Screws
Price $30.85

Front Leg With Screws
605672 Associated Wheel Kit With Nuts (Set Of Two Plastic)
605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
Price $34.92

605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
610043 Associated 3/8 Axle Cap (Each)
610043 Associated 3/8 Axle Cap (Each)
Price $2.18

610043 Associated 3/8 Axle Cap (Each)
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit
Discontinued

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.
610536 Associated 30 Volt DC 110 Amp Circuit Breaker
610536 Associated 30 Volt DC 110 Amp Circuit Breaker
Price $43.28

DC Circuit Breaker Kit
610827 Associated Rectifier YAH123
610827 Associated Rectifier YAH123
Price $56.18

610827 Associated Rectifier YAH123
610829 Associated Ammeter 0-100 Amp Range W/ Boost
610829 Associated Ammeter 0-100 Amp Range W/ Boost
Price $56.25

Associated 610829 Ammeter 0-100 Amp Range w/ Boost. Includes Mounting Template and mounting hardware.
610894 Associated Switch W/Pointer Knob 277V
610894 Associated Switch W/Pointer Knob 277V
Discontinued See 611187

610894 Associated Switch W/Pointer Knob 277V
610895 Associated Timer W/Knob
610895 Associated 90 Minute Mechanical Timer With Knob
Discontinued See 611254

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Price $17.29

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob
Price $42.76

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.
611245 Associated 120 Minute Electronic Timer with Knob
611245 Associated 120 Minute Electronic Timer with Knob
Price $65.55

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit
611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit
Price $74.21

611254 Associated 120 Minute Electronic Timer with Knob, for use in units with a 90 Minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.
6200 Associated Side Terminal Adapter Pair
6200 Associated Side Terminal Adapter Pair
Price $6.62

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
Price $32.09

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.
6204 Associated 500 Amp Jaw Kit
6204 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Discontinued See 610970

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
