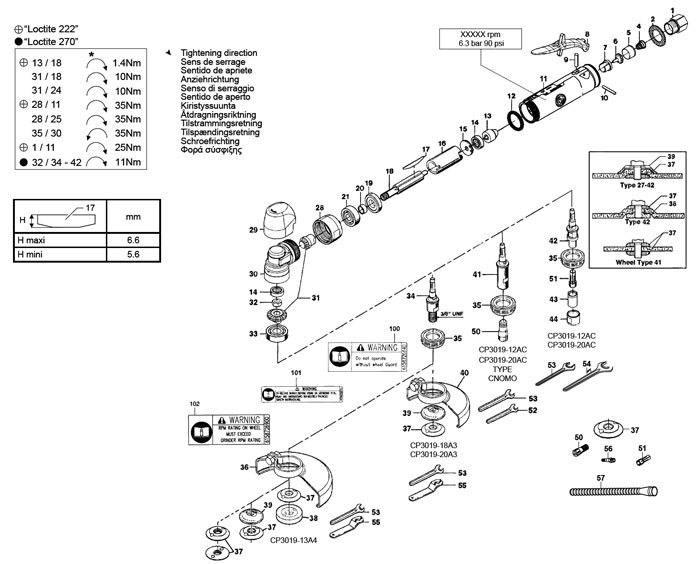

Chicago Pneumatic CP3019-13A4 Angle Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050542053
Air Inlet Kit
-
1
-
Adapter complete 1/4"
1
2
-
Silencer
1
B
2050542063
Throttle Kit
-
4
-
Spring valve
1
5
-
Tube inlet
1
6
-
Throttle valve
1
7
-
Seat valve
1
C
2050542073
Lever Kit
-
8
-
Throttle lever
1
9
-
Pin
1
10
-
Pin
1
D
2050542083
Rear Plate Kit
-
14
758.63
Ball bearing
1
15
-
Rear end plate
1
E
2050542093
Front Plate Kit
-
19
-
Front end plate
1
21
758.113
Ball bearing (CP3019-..)
1
20
-
Collar rotor
1
F
2050542103
Motor Kit
-
12
-
O-Ring
1
D
2050542083
Rear plate kit
1
E
2050542093
Front plate kit
1
16
400.134
Cylinder
1
17
434.55
Blade
3
18
426.92
Rotor
1
G
2050541413
Collet Clamp Kit
-
43
-
Cap (CP3019-..AC) 1
44
-
Nut (CP3019-..AC)
1
H
2050541313
Bevel Gear Kit
-
14
758.63
Ball bearing
1
31
-
Gear-bevel
1
32
-
Nut
1
33
758.117
Ball bearing
1
I
2050541323
Angle Head Kit (CP3019-..A3, CP3019-..A4)
-
H
2050541313
Bevel gear kit
1
29
6155704290
Sleeve protection
1
30
595.230
Housing angle
1
34
-
Spindle-wheel 3/8" (CP3019..A3, CP3019-..A4)
1
35
-
Cap-angle housing
1
J
2050541333
Angle Head Kit (CP3019-..AC)
-
H
2050541313
Bevle gear kit
1
G
2050541413
Collet clamp kit
1
29
6155704290
Sleeve protection
1
30
595.230
Housing angle
1
35
-
Cap-angle housing
1
42
2050541433
Spindle-collet (CP3019-..AC)
1
51
6155260590
Series 300 resilient collet 1/4"
1
K
2050559713
Angle Head Kit CP3019 CNOMO
-
H
2050541313
Bevel gear kit
1
G
2050541413
Collet clamp kit
1
29
6155704290
Sleeve protection
1
30
595.230
Housing angle
1
35
-
Cap-angle housing
1
41
6155011040
CNOMO Collet holder
1
50
6155260460
Collet for CP3019 CNOMO
1
-
11
2050542193
Motor housing kit
1
13
457.30
Govenor CP3019-20AC, CP3019-20A3
1
13
457.29
Govenor CP3019-12AC 1
13
457.25
Govenor CP3019-13A4 1
13
457.31
Govenor CP3019-18A3
1
21
758.113
Ball bearing
1
28
730.179
Sleeve alignment
1
36
6155041600
Wheel guard 4" (CP3019-..A4) 1
37
6155020640 Flange (CP3019-..A3) 1
37
6155020640
Flange (CP3019-..A4) 2
38
6156065150
Rear flange (CP3019-..A4) 1
39
6155031440
Rear flange
1
40
6155041550
Wheel guard 3" (CP3019-..A4)
1
52
6158010020
Flat wrench 3/8" for CNOMO tools
1
53
6158010030
Flat wrench 11/16" 1
54
6158010320
Flat wrench 11/16"
1
55
6158020080
Pin wrench
1
56
6157040190
Air hose nipple (1/4" for 5/16" ID hose)
1
57
6158751060
Exhaust hose (L=31")
1
100
6158726840
Warning guard label
1
101
6158726110
Warning instruction label
1
102
6158726900
Warning wheel speed label
1
-
2050542133
Tune-up Kit
(incl 2, 12, 17, 9, 10, 21, 33)
-
