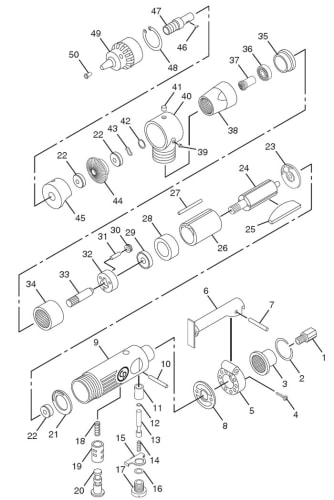

CP879 Angle Drill Repair Parts


Index
No.
 Part No.
Description
 No.
Req'd
1
 CA144942
 Bushing - Air Inlet
1
2
 CA144871 Ring - Retaining
1
3
 CA144872 Deflector - Exhaust
1
4
 CA144943 Screw
 2
5
 CA144944 Cover - Housing
 1
6
 CA144945 Lever - Throttle
1
7
 CA144878 Pin - Roller
 1
8
 CA144946 Gasket - Housing Cover
1
9
 CA144947 Housing - Motor
 1
10
 CA144948 Pin - Roll
 1
11
 CA144949 Bushing - Throttle Valve
1
12
 CA144950 O-Ring
 1
13
 CA144951 Valve - Throttle
1
14
 CA144952 Spring - Throttle Valve 1
15
 CA144953 Ring - Valve Retainer
1
16
 CA144882 O-Ring
 1
17
 CA144955 Plug - Throttle Valve 1
18
 CA144956 Spring - Reverse Valve 1
19
 CA144957 Bushing - Reverse Valve 1
20
 CA144958 Valve - Reverse
1
21
 CA144959 Gasket - Motor Housing
1
22
 CA144885 Bearing - Ball
 1
23
 CA144960 Plate - Rear End
1
24
 CA144961 Rotor
 1
25
 CA144962 Blade Set - Rotor (5)
1
26
 CA144963 Liner
 1
27
 CA144964 Dowel - Liner
 1
28
 CA144965 Plate - Front End
1
29
 CA144966 Bearing - Ball
 1
30
 CA144967 Gear - Idler
 3
31
 CA144968 Shaft - Gear
 3
32
 CA144969 Cage - Gear
 1
33
 CA144970 Spindle
 1
34
 CA144971 Gear - Internal
 1
35
 CA144972 Housing - Bearing
1
36
 CA144973 Bearing - Ball
 1
37
 CA144974 Pinion
 1
38
 CA144975 Nut - Clamp
 1
39
 CA144976 Cap - Oil
 1
40
 CA144977 Housing - Head
(Incl Index No: 93
 1
41
 CA144978 Screw - Set
 1
42
 CA144979 Ring - Retaining
1
43
 CA144980 Washer
 1
44
 CA144981 Gear - Bevel
 1
45
 CA144982 Housing - Bearing
1
46
 CA144983 Key
 1
47
 CA144984 Spindle
 1
48
 CA144985 Ring - Retaining
1
49
 CA144898 Chuck - Drill 3/8"
1
50
 CA144986 Screw
 1
-
 CA144007 Decal - Safety Warning (Not Shown)
1
53
 CA144906 Motor Assembly
 1
-
 CA144907 Angle Head Assembly 1
-
 CA121582
 Key - Chuck
 1
-
 CA146517
 Bearing - Ball
 1
