6021 Associated Battery Charger Parts List




MODEL 6021 REPAIR PARTS
Diagram # Description Part Number
1 Transformer 611007
2 Rectifier 610364
3 Load Switch 610263
4 Volt Meter 611018
5 Charge Rate Switch 605675
6 Timer 610895
7 Ammeter 611008
8 Front Panel 611009
9 Fan Blade 610189
10 Fan Motor 610190
11 Load Assembly 611010
12 DC Circuit Breaker (1) 610536
13 Back Panel 610561
14 Right Side Panel 611032
15 Top Panel 611011
16 Base Panel 610054
Not Shown


AC Power Cord 610696

Positive DC Cable 611012

Negative DC Cable 611013

Left Side Panel 611031

Jaw Kit (repairs 1 clamp) 610970

Clamps (1 pair w/jaws) 6202

Front Leg 605671

Axle w/nuts 610052

Wheels w/nuts (2) 605672

Handle 605213
OCV A/C D/C
6-12 Low 20.7 8.7
12 High 29.7 12.8
Start 32.1 13.8

MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of DC Cable Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
6021 Associated 50/50/5/200 Amp 6/12v Charge/Start/Load Test 6021 Associated 50/50/5/200 Amp 6/12v Charge/Start/Load Test

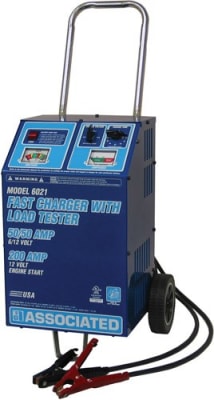

Made In USAThis 6/12 VOlt fast charger has a 50 amp charge rate, a 200 amp crank assist and a 125 amp fixed load tester built right in. Dual meters for easy reading and diagnosis.
