Chicago Pneumatic CP826 Air Ratchet Repair Parts

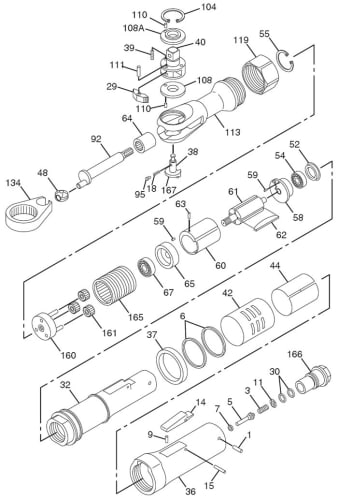

Index
No.
Part No. Description No.
Req'd
1 CA155013 Pin - Dowel 1
3 CA155014 Spring - Throttle 1
5 CA155010 Valve - Throttle 1
6 CA154998 O-Ring 2
7 CA155009 Seat - Valve 1
9 CA155017 Pin - Dowel 1
11 CA155012 Screen - Air 1
14 CA155016 Trigger 1
15 CA155015 Pin - Roll 1
18 KF138212 Spring - Ratchet 1
29 KF138195 Pawl - Ratchet 1
30 C136939 O-Ring 2
32 CA155018 Housing - Motor 1
36 CA155006 Cover - Housing (Black) 1
- CA155008 Cover - Housing (Orange) 1
- CA155007 Cover - Housing (Green) 1
37 CA154995 Ring - Trim (Black) 1
- CA154997 Ring - Trim (Orange) 1
- CA154996 Ring - Trim (Green) 1
38 CA154994 Button - Reverse 1
39 CA149686 Spring - Compression 2
40 CA149701 Shank - Ratchet (CP826, CP826G, CP826O) 1
- CA149687 Shank - Ratchet (CP826T) 1
42 CA155000 Deflector - Exhaust (CP826, CP826G, CP826O) 1
- CA155001 Deflector - Exhaust (CP826T) 1
44 CA154999 Screen - Exhaust 1
48 KF138186 Bushing - Drive 1
52 CA155005 Cap - Bearing 2
54 CA155004 Bearing 1
55 KF138179 Ring - Retaining 1
58 CA155003 Plate - Rear End 1
59 KF138196 Pin - Roll 2
60 KF138199 Liner 1
61 CA155002 Rotor 1
62 KF138202 Set - Rotor Blade (4) 1
63 KF124410 Pin - Dowel 1
64 KF138213 Bearing - Needle 1
65 KF138201 Plate - Front End 1
67 C087834 Bearing - Ball 1
92 KF138177 Shaft - Crank 1
95 KF138187 Pin - Lock 1
104 KF138191 Ring - Internal 1
108 KF141564 Washer - Thrust (1 Req'd for CP826, CP826G, CP826O) 1
108A KF141853 Washer - Thrust (CP826T 1
110 KF140185 Pin - Dowel
(Incl Index Nos: 108 & 108A)
2
111 KF138211 Pin - Ratchet 1
113 KF141563 Housing - Ratchet (Incl Index No: 64) 1
119 KF138174 Clamp - Housing 1
134 KF138206 Yoke - Ratchet 1
160 KF138203 Spindle - Idler 1
161 KF138205 Gear - Idler (13 Teeth) 3
165 KF138204 Housing - Spindle 1
166 CA155011 Bushing - Air Inlet 1
- CA155262 Decal - Safety Warning (Not Shown) (CP826O) 1
- CA154993 Cover - Head (Not Shown) 1
- CA131376 Decal - Oil Daily 1
167 CA147985 Fitting - Grease (Not Shown) 1
Head Replacement CA155034 Incl Index Nos: 18, 29, 38, 39, 40, 95, 104, 108, 108A &111
Head Replacement CA155035 Incl Index Nos: 18, 29, 38, 39, 40, 95, 104, 108, 108A &111
Tune-Up Kit CA155033 Incl Index Nos: 3, 6, 18, 30, 39, 52, 62, 95 &104
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
2050486853 Chicago Pneumatic Ball Bearing 2050486853 Chicago Pneumatic Ball Bearing

2050486853 Chicago Pneumatic Ball Bearing

Price $19.18
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C087834 Chicago Pneumatic Bearing-Ball C087834 Chicago Pneumatic Bearing-Ball

C087834 Chicago Pneumatic Bearing-Ball

Discontinued See CA144800
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144800 Chicago Pneumatic Bearing-Ball CA144800 Chicago Pneumatic Bearing-Ball

CA144800 Chicago Pneumatic Bearing-Ball

Price $26.42
CA147985 Chicago Pneumatic Fitting-Grease CA147985 Chicago Pneumatic Fitting-Grease

CA147985 Chicago Pneumatic Fitting-Grease

Price $5.40
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA149686 Chicago Pneumatic Spring-Compression CA149686 Chicago Pneumatic Spring-Compression

CA149686 Chicago Pneumatic Spring-Compression

Price $3.89
CA149687 Chicago Pneumatic Shank-Ratchet (3/8) CA149687 Chicago Pneumatic Shank-Ratchet (3/8)

CA149687 Chicago Pneumatic Shank-Ratchet (3/8)

Price $60.47
CA149701 Chicago Pneumatic Shank-Ratchet (1/4) CA149701 Chicago Pneumatic Shank-Ratchet (1/4)

CA149701 Chicago Pneumatic Shank-Ratchet (1/4)

Price $55.99
CA154993 Chicago Pneumatic Cover-Head CA154993 Chicago Pneumatic Cover-Head

CA154993 Chicago Pneumatic Cover-Head

Price $7.25
CA154994 Chicago Pneumatic Button-Reverse CA154994 Chicago Pneumatic Button-Reverse

CA154994 Chicago Pneumatic Button-Reverse

Price $23.56
CA154995 Chicago Pneumatic Ring-Trim (Black) CA154995 Chicago Pneumatic Ring-Trim (Black)

CA154995 Chicago Pneumatic Ring-Trim (Black)

Price $8.65
CA155002 Chicago Pneumatic Rotor CA155002 Chicago Pneumatic Rotor

CA155002 Chicago Pneumatic Rotor

Price $48.66
CA155003 Chicago Pneumatic Plate-Rear End CA155003 Chicago Pneumatic Plate-Rear End

CA155003 Chicago Pneumatic Plate-Rear End

Price $14.23
CA155004 Chicago Pneumatic Bearing CA155004 Chicago Pneumatic Bearing

CA155004 Chicago Pneumatic Bearing

Discontinued See 2050486853
CA155005 Chicago Pneumatic Cap-Bearing CA155005 Chicago Pneumatic Cap-Bearing

CA155005 Chicago Pneumatic Cap-Bearing

Price $3.89
CA155006 Chicago Pneumatic Cover-Housing(Black) CA155006 Chicago Pneumatic Cover-Housing(Black)

CA155006 Chicago Pneumatic Cover-Housing(Black)

Price $26.57
CA155007 Chicago Pneumatic Cover-Housing(Green) CA155007 Chicago Pneumatic Cover-Housing(Green)

CA155007 Chicago Pneumatic Cover-Housing(Green)

Discontinued
CA155009 Chicago Pneumatic Seat-Valve CA155009 Chicago Pneumatic Seat-Valve

CA155009 Chicago Pneumatic Seat-Valve

Price $7.14
CA155010 Chicago Pneumatic Valve-Throttle CA155010 Chicago Pneumatic Valve-Throttle

CA155010 Chicago Pneumatic Valve-Throttle

Price $7.14
CA155012 Chicago Pneumatic Screen-Air CA155012 Chicago Pneumatic Screen-Air

CA155012 Chicago Pneumatic Screen-Air

Price $3.89
CA155013 Chicago Pneumatic Pin-Dowel CA155013 Chicago Pneumatic Pin-Dowel

CA155013 Chicago Pneumatic Pin-Dowel

Price $3.89
CA155014 Chicago Pneumatic Spring-Throttle CA155014 Chicago Pneumatic Spring-Throttle

CA155014 Chicago Pneumatic Spring-Throttle

Price $3.89
CA155015 Chicago Pneumatic Pin-Roll CA155015 Chicago Pneumatic Pin-Roll

CA155015 Chicago Pneumatic Pin-Roll

Price $3.89
CA155016 Chicago Pneumatic Trigger CA155016 Chicago Pneumatic Trigger

CA155016 Chicago Pneumatic Trigger

Price $5.39
CA155017 Chicago Pneumatic Pin-Dowel CA155017 Chicago Pneumatic Pin-Dowel

CA155017 Chicago Pneumatic Pin-Dowel

Price $3.89
CA155018 Chicago Pneumatic Housing-Motor CA155018 Chicago Pneumatic Housing-Motor

CA155018 Chicago Pneumatic Housing-Motor

Price $66.37
CA155033 Chicago Pneumatic Kit-Tune-Up Cp0826 CA155033 Chicago Pneumatic Kit-Tune-Up Cp0826

CA155033 Chicago Pneumatic Kit-Tune-Up Cp0826

Price $41.30
CA155034 Chicago Pneumatic Kit-Ratchet Head CA155034 Chicago Pneumatic Kit-Ratchet Head

CA155034 Chicago Pneumatic Kit-Ratchet Head

Price $92.89
CA155035 Chicago Pneumatic Kit-Ratchet Head CP826T CA155035 Chicago Pneumatic Kit-Ratchet Head CP826T

CA155035 Chicago Pneumatic Kit-Ratchet Head CP826T

Price $94.39
CP826 Chicago Pneumatic 1/4" Ratchet CP826 Chicago Pneumatic 1/4" Ratchet

CP826 1/4" Ratchet - This 1/4" square drive ratchet features up to 250 rpm speed for faster rundowns and is an exceptionally durable tool due to a virtually non-slipping advanced head design.

Price $227.30
KF124410 Chicago Pneumatic Pin-Dowel KF124410 Chicago Pneumatic Pin-Dowel

KF124410 Chicago Pneumatic Pin-Dowel

Price $5.41
KF138174 Chicago Pneumatic Clamp-Housing KF138174 Chicago Pneumatic Clamp-Housing

KF138174 Chicago Pneumatic Clamp-Housing

Price $17.71
KF138177 Chicago Pneumatic Shaft-Crank KF138177 Chicago Pneumatic Shaft-Crank

KF138177 Chicago Pneumatic Shaft-Crank

Price $16.18
KF138179 Chicago Pneumatic Ring-Retaining KF138179 Chicago Pneumatic Ring-Retaining

KF138179 Chicago Pneumatic Ring-Retaining

Price $5.41
KF138186 Chicago Pneumatic Bushing-Drive KF138186 Chicago Pneumatic Bushing-Drive

KF138186 Chicago Pneumatic Bushing-Drive

Price $12.65
KF138187 Chicago Pneumatic Pin-Lock KF138187 Chicago Pneumatic Pin-Lock

KF138187 Chicago Pneumatic Pin-Lock

Price $5.41
KF138191 Chicago Pneumatic Ring-Internal KF138191 Chicago Pneumatic Ring-Internal

KF138191 Chicago Pneumatic Ring-Internal

Price $5.41
KF138195 Chicago Pneumatic Pawl-Ratchet KF138195 Chicago Pneumatic Pawl-Ratchet

KF138195 Chicago Pneumatic Pawl-Ratchet

Price $23.60
KF138196 Chicago Pneumatic Pin-Roll KF138196 Chicago Pneumatic Pin-Roll

KF138196 Chicago Pneumatic Pin-Roll

Price $5.41
KF138199 Chicago Pneumatic Liner KF138199 Chicago Pneumatic Liner

KF138199 Chicago Pneumatic Liner

Price $48.65
KF138201 Chicago Pneumatic Plate-Front End KF138201 Chicago Pneumatic Plate-Front End

KF138201 Chicago Pneumatic Plate-Front End

Price $19.16
KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825 KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825

KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825

Price $15.80
KF138204 Chicago Pneumatic Housing-Spindle KF138204 Chicago Pneumatic Housing-Spindle

KF138204 Chicago Pneumatic Housing-Spindle

Price $25.07
KF138205 Chicago Pneumatic Gear-Idler (13t) KF138205 Chicago Pneumatic Gear-Idler (13t)

KF138205 Chicago Pneumatic Gear-Idler (13t)

Price $14.21
KF138206 Chicago Pneumatic Yoke-Ratchet KF138206 Chicago Pneumatic Yoke-Ratchet

KF138206 Chicago Pneumatic Yoke-Ratchet

Discontinued
KF138211 Chicago Pneumatic Pin-Ratchet KF138211 Chicago Pneumatic Pin-Ratchet

KF138211 Chicago Pneumatic Pin-Ratchet

Price $5.41
KF138212 Chicago Pneumatic Spring-Ratchet KF138212 Chicago Pneumatic Spring-Ratchet

KF138212 Chicago Pneumatic Spring-Ratchet

Price $5.41
KF138213 Chicago Pneumatic Bearing-Needle KF138213 Chicago Pneumatic Bearing-Needle

KF138213 Chicago Pneumatic Bearing-Needle

Price $20.64
KF140185 Chicago Pneumatic Pin-Roll KF140185 Chicago Pneumatic Pin-Roll

KF140185 Chicago Pneumatic Pin-Roll

Price $3.86
KF141563 Chicago Pneumatic Housing-Ratchet KF141563 Chicago Pneumatic Housing-Ratchet

KF141563 Chicago Pneumatic Housing-Ratchet

Price $119.40
KF141564 Chicago Pneumatic Washer-Thrust KF141564 Chicago Pneumatic Washer-Thrust

KF141564 Chicago Pneumatic Washer-Thrust

Price $12.65
KF141853 Chicago Pneumatic Washer-Thrust KF141853 Chicago Pneumatic Washer-Thrust

KF141853 Chicago Pneumatic Washer-Thrust

Price $12.61
