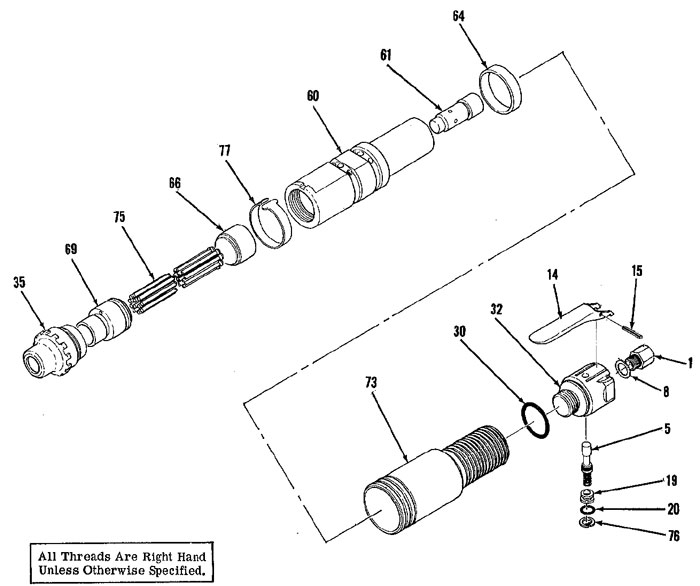

| Index No. | Part No. | Description | No. Req'd |
| 1 | NP123898 | Bushing - air inlet (M16x NPTF 3/8") | 1 |
| 5 | NP138044 | Throttle valve assembly | 1 |
| 8 | NP123899 | Gasket - bushing | 1 |
| 14 | NP131783 | Throttle lever assembly(incl 15) | 1 |
| 15 | NP123891 | Pin - roll | 1 |
| 19 | NP138045 | Seat - spring | 1 |
| 20 | NP138046 | O-Ring (S-10) | 1 |
| 30 | C136799 | O-Ring (G-30) | 1 |
| 32 | NP138047 | Body - valve | 1 |
| 35 | NP138048 | Ring - lock | 1 |
| 60 | NP138049 | Cylinder assembly | 1 |
| - | C132813 | Wrench - spanner | 1 |
| 61 | NP123887 | Piston | 1 |
| 64 | NP138050 | Stopper | 1 |
| 66 | NP123882 | Anvil | 1 |
| 69 | NP138051 | Support - needle (3 mm) | 1 |
| 73 | NP138052 | Cover | 1 |
| 75 | NP123901 | Neeldles - (3 mm) (setof 12) | 1 |
| 76 | NP138053 | Ring - retaining (C-12) | 1 |
| 77 | NP138054 | Band - safety | 1 |
