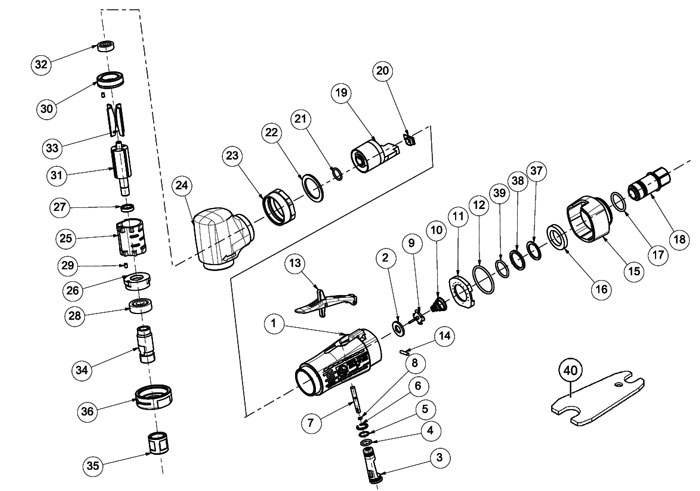

Chicago Pneumatic CP3030-330R Angle Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
615460400 Regulator Assembly
-
3
-
Regulator
1
4
-
O-Ring (8.1 x 1.6)
1
5
-
O-Ring (8 x 1)
1
6
-
Spring ring WR9
1
7
-
Valve stem
1
8
-
O-Ring (2 x 1)
1
B
2050546343
Valve Kit
-
9
-
Tip valve
1
10
-
Spring
1
C
2050546353 Front Plate Assembly
-
23
-
Front plate
1
24
-
Washer
1
25
6157581380
Bearing 608Z (8 x 22 x 7)
1
26
-
Pin Spring (2.5 x 4)
1
D
2050546363 Rear Plate Assembly
-
26
-
Pin spring (2.5 x 4)
1
27
-
Rear plate
1
29
6157580630
Bearing 625ZZ (5 x 16 x 5)
1
E
2050546373 Motor Assembly
-
C
2050546353 Front plate assembly
1
D
2050546363 Rear plate assembly
1
22
6154001500
Cylinder
1
28
6154261210
Rotor M8
1
30
6154340610
Blades
4
F
2050546413 Small Parts Kit
-
6
-
Spring ring WR9
1
8
-
O-Ring (2 x 1) 1
12
-
O-Ring (27 x 2) 1
14
-
Needle (2.5 x 11.8) 1
17
-
O-Ring (17 x 2) 1
21
-
O-Ring (10.5 x 1.5) 1
37
-
External ring 1
38
-
Spacer 1
39
-
O-Ring (15.6 x 1.78)
G
2050546403 Tune-up Kit
-
2
-
Seal
1
16
-
Felt
1
30
6154340610
Blades 300W
4
19
-
Gasket
1
-
1
2050547773
Handle assembly (incl 15)
1
11
6155740660
Air control ring (25,000 rpm)
1
-
6155740640
Air control ring (30,000 rpm) 1
13
2050541493 Safety lever
1
15
-
Rear cap
1
18
2050542533 Inlet assembly
1
19
6153212410
Insert
1
20
6156561900
Rubber gasket
1
23
6157301890
Nut
1
24
6155653210
Motor housing 1
34
6155230260
Collet holder SIAL 300 1
35
6156060440
Collet nut SIAL 300 1
36
6156731400
Cover 1
40
6158727980
Warning label 1
Sort By:
Page of 1
2050542533 Chicago Pneumatic Inlet Assy
2050542533 Chicago Pneumatic Inlet Assy
Price $19.57

2050542533 Chicago Pneumatic Inlet Assy more info
2050546343 Chicago Pneumatic Valve Kit
2050546343 Chicago Pneumatic Valve Kit
Price $6.18

2050546343 Chicago Pneumatic Valve Kit more info
2050546353 Chicago Pneumatic Front Plate Assy 300W
2050546353 Chicago Pneumatic Front Plate Assy 300W
Price $70.04

2050546353 Chicago Pneumatic Front Plate Assy 300W more info
2050546363 Chicago Pneumatic Rear Plate Assembly 300W 7°
2050546363 Chicago Pneumatic Rear Plate Assembly 300W 7
Price $69.01

2050546363 Chicago Pneumatic Rear Plate Assembly 300W 7 more info
2050546373 Chicago Pneumatic Motor Assembly 300W 7°
2050546373 Chicago Pneumatic Motor Assembly 300W 7
Price $301.79

2050546373 Chicago Pneumatic Motor Assembly 300W 7 more info
2050546403 Chicago Pneumatic Tune-Up Kit 300W
2050546403 Chicago Pneumatic Tune-Up Kit 300W
Price $20.60

2050546403 Chicago Pneumatic Tune-Up Kit 300W more info
2050546413 Chicago Pneumatic Small Parts Kit
2050546413 Chicago Pneumatic Small Parts Kit
Price $4.12

2050546413 Chicago Pneumatic Small Parts Kit more info
2050547773 Chicago Pneumatic Handle Assy
2050547773 Chicago Pneumatic Handle Assy
Price $45.32

2050547773 Chicago Pneumatic Handle Assy more info
6154001500 Chicago Pneumatic Cylinder 300W
6154001500 Chicago Pneumatic Cylinder 300W
Price $73.13

6154001500 Chicago Pneumatic Cylinder 300W more info
6154261210 Chicago Pneumatic Rotor M8 300W
6154261210 Chicago Pneumatic Rotor M8 300W
Price $73.13

6154261210 Chicago Pneumatic Rotor M8 300W more info
6154340610 Chicago Pneumatic Blade
6154340610 Chicago Pneumatic Blade
Price $2.06

6154340610 Chicago Pneumatic Blade more info
6155230260 Chicago Pneumatic Collet Holder S300
6155230260 Chicago Pneumatic Collet Holder S300
Price $31.93

6155230260 Chicago Pneumatic Collet Holder S300 more info
6155653210 Chicago Pneumatic Motor Housing 7°
6155653210 Chicago Pneumatic Motor Housing 7
Price $71.07

6155653210 Chicago Pneumatic Motor Housing 7 more info
6155740640 Chicago Pneumatic Air Control Ring 30000Rpm
6155740640 Chicago Pneumatic Air Control Ring 30000Rpm
Price $13.39

6155740640 Chicago Pneumatic Air Control Ring 30000Rpm more info
6155740660 Chicago Pneumatic Air Control Ring 25000Rpm
6155740660 Chicago Pneumatic Air Control Ring 25000Rpm
Price $4.12

6155740660 Chicago Pneumatic Air Control Ring 25000Rpm more info
6156060440 Chicago Pneumatic Collet Nut S300
6156060440 Chicago Pneumatic Collet Nut S300
Price $20.60

6156060440 Chicago Pneumatic Collet Nut S300 more info
6156731400 Chicago Pneumatic Cover Rear Exhaust 300W
6156731400 Chicago Pneumatic Cover Rear Exhaust 300W
Price $14.42

6156731400 Chicago Pneumatic Cover Rear Exhaust 300W more info
6157301890 Chicago Pneumatic Nut Connection 7°
6157301890 Chicago Pneumatic Nut Connection 7
Price $18.54

6157301890 Chicago Pneumatic Nut Connection 7 more info
CP3030-330R Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Angle Grinder
CP3030-330R Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Angle Grinder
Price $267.83

CP3030-330R Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Angle Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision and easy maintenance. more info
