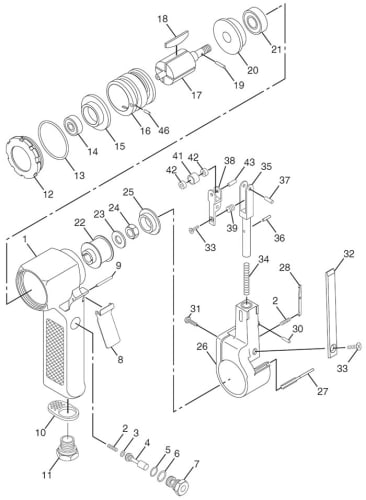

Chicago Pneumatic CP858 Air Sander Repair Parts


Index
No. 		Part No. Description No.
Req'd
1 CA155541 Motor Housing 1
2 CA155542 Spring 2
3 KF125427 O-Ring 1
4 CA155543 Valve Stem 1
5 P083071 O-Ring 1
6 CA155654 O-Ring 1
7 CA155544 Body - Valve 1
8 CA155545 Throttle Lever 1
9 KF124394 Lever Pin (3-24mm) 1
10 CA155547 Deflector 1
11 CA155548 Inlet Bushing 1
12 CA155549 Nut - Motor 1
13 C042234 O-Ring 1
14 S025101 Ball Bearing 1
15 CA155550 Plate - Rear 1
16 CA155551 Liner 1
17 CA155552 Rotor 1
18 CA155553 Rotor Blade 4
19 CA155650 Pin - Pulley 1
20 CA155554 Plate - Front 1
21 C120326 Ball Bearing 1
22 CA155555 Pulley - Drive 1
23 CA155652 Washer 1
24 CA155651 Nut - Lock 1
25 CA155556 Cap - Pulley 1
26 CA155557 Cover - Wheel with Bushing 1
27 CA155558 Deflector 1
28 CA155559 Lever - Stop 1
30 CA155657 Pin - Roll (2.5-10mm) 1
31 C078984 Adjust Screw 1
32 CA155560 Shoe 1
33 CA155655 Screw - Flat (M4 x 12) 1
34 CA155561 Spring - Tension 2
35 CA155562 Arm - Tension 1
36 CA155563 Pin - Stop 1
37 CA155656 Pin - Roll (3-11mm) 1
38 CA155564 Arm - Adjust 1
39 CA155565 Spring - Adjust 1
41 CA155566 Pulley - Idler 1
42 CA155649 Ball Bearing 1
43 CA155567 Pulley Pin 2
46 CA155568 Pin - Roll (2-6mm) 1
- CA145203 Wrench - Hex (Not Shown) 1
