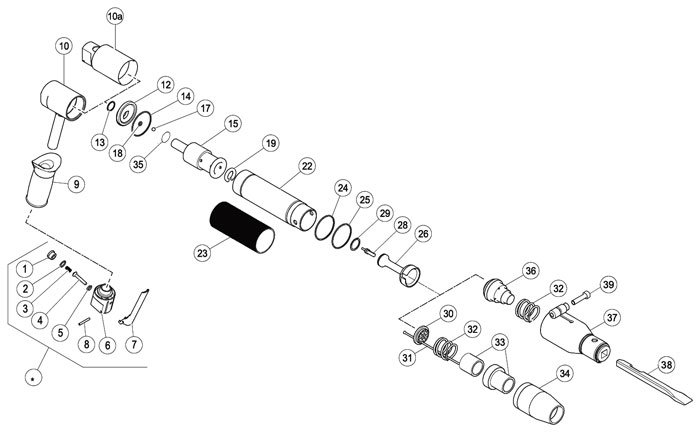

| Index No. | Part No. | Description | No. Req'd |
| 1 | 672.522 | Valve Cap | 1 |
| 2 | 658.238 | Valve Cap O-Ring | 1 |
| 3 | 681.578 | Valve Spring | 1 |
| 4 | 312.531 | Valve Stem | 1 |
| 5 | 658.239 | Valve Seat O-Ring | 1 |
| 6 | 307.516 | Valve Body | 1 |
| 7 | 321.574 | Throttle Lever | 1 |
| 7a | 6153212470 | Safety Lever (B16 only) | 1 |
| 8 | 6156350410 | Roll Pin | 1 |
| * | 395.518 | Valve Body Assembly(incl items 1-8) | 1 |
| 9 | 6153000480 | Rubber Handle Grip | 1 |
| 17 | 6157700570 | Ball (Polyurethane) (6 mmdia) | 1 |
| 18 | 6156583260 | Ball Retaining O-Ring | 1 |
| 10 | 6155731350 | Cover Assembly (PistolGrip) (B18) | 1 |
| - | 6155731370 | Cover Assembly (PistolGrip) (B19) | 1 |
| 10a | 6155731360 | Cover Assembly(Inline) (B16) | 1 |
| 12 | 6155961060 | Guide Plate (B16,B18) | 1 |
| 12 | 6155961070 | Guide Plate (B19) | 1 |
| 13 | 6156500340 | Guide Plate Seal (B16, B18) | 1 |
| 13 | 6156500350 | Guide Plate Seal (B19) | 1 |
| 14 | 658.243 | Guide Plate O-Ring (B16, B18) | 1 |
| 14 | 658.243 | Guide Plate O-Ring (B19) | 1 |
| 15 | 6154001530 | Cylinder (B16, B18) | 1 |
| 15 | 6154001540 | Cylinder Sub Assembly (B19) | 1 |
| 19 | 6156452390 | Piston Cushion (B16, B18) | 1 |
| 19 | 6156452400 | Piston Cushion (B19) | 1 |
| 22 | 6154320090 | Intermediate Tube (B16, B18) | 1 |
| 22 | 6154320100 | Intermediate Tube (B19) | 1 |
| 23 | 6155731380 | Intermediate Tube Outer Sleeve (B16, B18) | 1 |
| 23 | 6155731390 | Intermediate Tube Outer Sleeve (B19) | 1 |
| 24 | 6156870670 | Circlip (B19) | 1 |
| 25 | 658.243 | Front Tube Locking O-Ring (B16, B18) | 1 |
| 25 | 658.243 | Front Tube Locking O-Ring (B19) | 1 |
| 26 | 6151430550 | Piston (B16, B18) | 1 |
| 26 | 6151430560 | Piston (B19) | 1 |
| 28 | 6151550170 | Valve Pin | 1 |
| 29 | 6156583310 | Piston Ring (B16, B18) | 1 |
| 29 | 6156583320 | Piston Ring (B19) | 1 |
| 30 | 6152520130 | Needle Holder (3mm) (B16,B18) | 1 |
| 30 | 6152520140 | Needle Holder (3mm) (B19) | 1 |
| 31 | 6158046160 | Needle Chisel (3mm) (B16,B18) | 19 |
| 31 | 6158046170 | Needle Chisel (3mm) (B19) | 28 |
| 32 | 6156901000 | Front Spring (B16, B18) | 1 |
| 32 | 6156901010 | Front Spring (B19) | 1 |
| 33 | 6155961030 | Front Tube Insert + Spacer (B16, B18) | 1 |
| 33 | 6155961040 | Front Tube Insert (B19) | 1 |
| 34 | 6155751210 | Front Tube (B16, B18) | 1 |
| 34 | 6155751220 | Front Tube (B19) | 1 |
| 35 | 6156452410 | Cylinder Stem Reaction Ring (B16, B18) | 1 |
| 35 | 6156452420 | Cylinder Stem Reaction Ring (B19) | 1 |
| 36 | 6152505600 | Anvil (B16, B18) | 1 |
| 36 | 6152505610 | Anvil (B19) | 1 |
| 37 | 6152520150 | Chisel Holder (B16, B18) | 1 |
| 37 | 6152520160 | Chisel Holder (B19) | 1 |
| 38 | 6158046180 | Chisel, width 3/4" (19mm), length 7" (178mm) (B18BV, B19BV) | 1 |
| 38 | 6158046220 | Chisel, width 3/4" (19mm), length 10" (254mm) (B16BV) | 1 |
| 39 | - | Screw (B16BV, B18BV, B19BV) | 1 |
| - | - | Nameplate | 1 |
