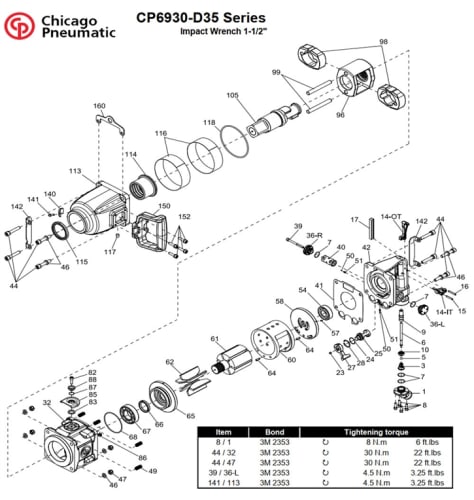

Chicago Pneumatic CP6930-D35 Impact Wrench Repair Parts



Index
No. 		Part No. Description No.
Req'd
A
 2050560983
 Rear Handle Assembly (incl Kits A1, A2, A3, A4, A5)
 -
41
 -
 Housing gasket
 1
42
 -
 Rear handle
 1
44
 -
 Screw
 4
46
 -
 Flat washer
 2
142
 -
 Side protector
 1
A1
 2050560993 Air Inlet Kit
 -
1
 -
 Inlet bushing
 1
8
 -
 Screws
 4
A2
 2050561003 Throttle Valve Kit
 -
3
 -
 Spring
 1
5
 -
 Steel ball
 1
6
 -
 Pin
 1
7
 -
 O-Ring
 2
9
 -
 Bushing
 1
10
 2050532833
 Seal
 1
A3
 2050561013
 Reverse Valve Kit
 -
23
 -
 Screw
 1
24
 -
 O-Ring
 1
25
 -
 Reverse valve
 1
27
 -
 Lever - reverse valve
 1
28
 -
 Ring
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
A4
 2050561023
 Regulator Valve Kit
 -
7
 -
 O-Ring
 2
36-L
 -
 Regulator knob (left part)
 1
36-R
 -
 Regulator knob (right part)
 1
39
 -
 Screw
 1
40
 -
 Regulator valve
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
A5
 2050561033
 Inside Trigger Kit
 -
14-IT
 -
 Trigger (inside)
 1
15
 -
 Spiral pin
 1
16
 -
 Spiral pin
 1
17
 -
 Trigger slot cover
 1
B
 2050561043
 Rear End Plate Assembly
 -
54
 2050532743
 Bearing
 1
57
 -
 Pin
 1
58
 -
 Plate - rear end
 1
64
 -
 Pin
 1
C
 2050561053
 Front End Plate Assembly
 -
64
 -
 Pin
 1
65
 -
 Plate - front end
 1
66
 -
 Oil seal
 1
67
 2050560903
 Bearing
 1
68
 -
 O-Ring
 1
D
 2050561063
 Motor Housing Assembly (incl H1)
 -
32
 -
 Motor housing
 1
44
 -
 Screw
 8
46
 -
 Flat washer
 8
47
 -
 Lock nut
 4
49
 -
 Thread insert
 4
142
 -
 Side protector
 2
D1
 2050561093
 Exhaust Diffuser Kit
 -
82
 -
 Screw
 1
83
 -
 Washer
 1
85
 -
 Deflector
 1
86
 -
 Lock nut
 1
87
 -
 O-Ring
 1
88
 -
 Rubber pad
 1
E
 2050561073
 Clutch Housing Assembly
 -
44
 -
 Screw
 4
46
 -
 Flat washer
 6
47
 -
 Lock nut
 4
113
 -
 Clutch housing
 1
114
 -
 Bushing - clutch housing
 1
115
 -
 Oil seal
 1
116
 -
 Steel sleeve
 2
117
 -
 Plug - oil
 1
118
 -
 O-Ring
 1
140
 -
 Front protector
 1
140
 -
 Screw
 1
142
 -
 Side protector
 1
F
 2050561083
 Side Handle Kit
 -
150
 -
 Handle
 1
152
 -
 Screw
 4
G
 2050561103
 Screws Kit
 -
8
 -
 Screw
 4
23
 -
 Screw
 1
39
 -
 Screw
 1
44
 -
 Screw
 8
46
 -
 Flat washer
 8
47
 -
 Lock nut
 4
82
 -
 Screw
 1
83
 -
 Washer
 1
86
 -
 Lock nut
 1
152
 -
 Screw
 4
H
 2050561113
 Gaskets Kit
 -
41
 -
 Housing gasket
 1
118
 -
 O-Ring
 1
I
 2050561123
 Small Parts Kit
 -
28
 -
 Ring
 1
50
 -
 Steel ball
 2
51
 -
 Spring
 2
57
 -
 Pin
 1
64
 -
 Pin
 2
117
 -
 Plug - oil
 1
140
 -
 Front protector
 1
141
 -
 Screw
 1
142
 -
 Side protector
 2
-
14-OT
 2050532783
 Trigger (outside)
 1
60
 2050560853
 Liner (incl 64)
 1
61
 2050560863
 Rotor
 1
62
 2050560873
 Vanes (set of 6)
 1
96
 2050560913
 Cage
 1
98
 2050561323
 Dog (set of 2)
 1
99
 2050561333
 Hammer pin (set of 2)
 1
105
 2050560943
 Anvil
 1
160
 2050532423
 Suspension hook
 1
LBL
 CA155779
 Warning label
 1
-
 2050560813
 Tune-up Kit
(incl 7, 10, 24, 41, 62, 66, 68, 118)
Sort By:
2050532423 Chicago Pneumatic Suspension Hook 2050532423 Chicago Pneumatic Suspension Hook

2050532423 Chicago Pneumatic Suspension Hook

Discontinued
2050532743 Chicago Pneumatic Bearing 2050532743 Chicago Pneumatic Bearing

2050532743 Chicago Pneumatic Bearing

Discontinued
2050532783 Chicago Pneumatic Trigger 2050532783 Chicago Pneumatic Trigger

2050532783 Chicago Pneumatic Trigger

Discontinued
2050532833 Chicago Pneumatic Seal Unit 2050532833 Chicago Pneumatic Seal Unit

2050532833 Chicago Pneumatic Seal Unit

Discontinued
2050560813 Chicago Pneumatic Tune-up Kit 2050560813 Chicago Pneumatic Tune-up Kit

2050560813 Chicago Pneumatic Tune-up Kit

Price $148.61
2050560853 Chicago Pneumatic Liner 2050560853 Chicago Pneumatic Liner

2050560853 Chicago Pneumatic Liner

Price $318.99
2050560863 Chicago Pneumatic Rotor 2050560863 Chicago Pneumatic Rotor

2050560863 Chicago Pneumatic Rotor

Price $399.10
2050560873 Chicago Pneumatic Vanes (Set Of 6) 2050560873 Chicago Pneumatic Vanes (Set Of 6)

2050560873 Chicago Pneumatic Vanes (Set Of 6)

Price $86.28
2050560903 Chicago Pneumatic Bearing 2050560903 Chicago Pneumatic Bearing

2050560903 Chicago Pneumatic Bearing

Price $39.92
2050560913 Chicago Pneumatic Cage 2050560913 Chicago Pneumatic Cage

2050560913 Chicago Pneumatic Cage

Price $545.54
2050560943 Chicago Pneumatic Anvil 2050560943 Chicago Pneumatic Anvil

2050560943 Chicago Pneumatic Anvil

Price $357.54
2050560993 Chicago Pneumatic Air Inlet 2050560993 Chicago Pneumatic Air Inlet

2050560993 Chicago Pneumatic Air Inlet

Price $51.12
2050561003 Chicago Pneumatic Throttle Valve Kit 2050561003 Chicago Pneumatic Throttle Valve Kit

2050561003 Chicago Pneumatic Throttle Valve Kit

Price $35.15
2050561013 Chicago Pneumatic Reverse Valve Kit 2050561013 Chicago Pneumatic Reverse Valve Kit

2050561013 Chicago Pneumatic Reverse Valve Kit

Price $60.70
2050561023 Chicago Pneumatic Regulator Valve Kit 2050561023 Chicago Pneumatic Regulator Valve Kit

2050561023 Chicago Pneumatic Regulator Valve Kit

Price $71.90
2050561033 Chicago Pneumatic Inside Trigger Kit 2050561033 Chicago Pneumatic Inside Trigger Kit

2050561033 Chicago Pneumatic Inside Trigger Kit

Price $25.57
2050561043 Chicago Pneumatic Rear End Plate Assembly 2050561043 Chicago Pneumatic Rear End Plate Assembly

2050561043 Chicago Pneumatic Rear End Plate Assembly

Price $158.22
2050561053 Chicago Pneumatic Front End Plate Assembly 2050561053 Chicago Pneumatic Front End Plate Assembly

2050561053 Chicago Pneumatic Front End Plate Assembly

Price $207.73
2050561073 Chicago Pneumatic Clutch Housing Assembly 2050561073 Chicago Pneumatic Clutch Housing Assembly

2050561073 Chicago Pneumatic Clutch Housing Assembly

Price $554.78
2050561093 Chicago Pneumatic Exhaust Diffuser Kit 2050561093 Chicago Pneumatic Exhaust Diffuser Kit

2050561093 Chicago Pneumatic Exhaust Diffuser Kit

Price $38.32
2050561103 Chicago Pneumatic Screws Kit 2050561103 Chicago Pneumatic Screws Kit

2050561103 Chicago Pneumatic Screws Kit

Price $36.76
2050561113 Chicago Pneumatic Gasket Kit 2050561113 Chicago Pneumatic Gasket Kit

2050561113 Chicago Pneumatic Gasket Kit

Price $27.19
2050561123 Chicago Pneumatic Small Parts Kit 2050561123 Chicago Pneumatic Small Parts Kit

2050561123 Chicago Pneumatic Small Parts Kit

Price $19.15
2050561323 Chicago Pneumatic Dog (Set Of 2) 2050561323 Chicago Pneumatic Dog (Set Of 2)

2050561323 Chicago Pneumatic Dog (Set Of 2)

Price $297.47
2050561333 Chicago Pneumatic Hammer Pin Set 2050561333 Chicago Pneumatic Hammer Pin Set

2050561333 Chicago Pneumatic Hammer Pin Set

Price $16.69

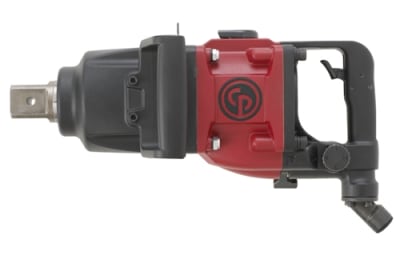

CP6930-D35 Chicago Pneumatic 1-1/2" Square Drive Impact Wrench with Hole-type Retainer CP6930-D35 Chicago Pneumatic 1-1/2" Square Drive Impact Wrench with Hole-type Retainer

CP6930-D35 Chicago Pneumatic 1-1/2" Square Drive Impact Wrench with Hole-type Retainer - Powerful and durable twin hammer clutch with oil bath. Robust aluminum housing with steel trigger and protective plate in the front. Operator comfort and control with 4-positions regulator and side D-handle.

Price $4,382.90
