You are here: Home > Chicago Pneumatic Air Screwdrivers > Chicago Pneumatic CP2037 1/4" Hex Impact Screwdriver Repair Parts

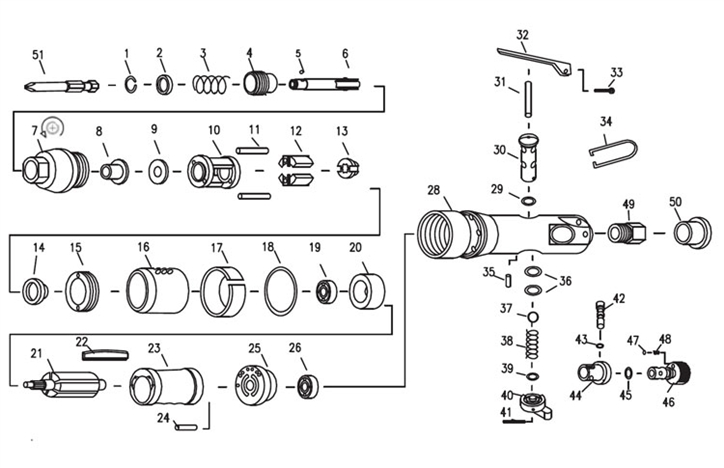

CP2037 1/4" Hex Impact Screwdriver


Index
No.
Part No. Description No.
Req'd
1
8940200751
Wire Retaining Collar
1
2
8940200752
Spring Seat
1
3
8940200753
Spring
1
4
8940200754
Lock Sleeve
1
5
8940200809
Steel Ball
1
6
8940200818
Anvil
1
7
8940200819
Front Sleeve
1
8
8940200757
Bushing
1
9
8940200790
Adjusting Spacer
1
10
8940200758
Cage
1
11
8940200780
Roller Needle
2
12
8940200759
Impact claw
2
13
8940200760
Transmission Sleeve
1
14
8940200761
Washer
1
15
8940200813
Clamp Nut
1
16
8940200814
Exhaust Deflector
1
17
8940200815
Silencing Collar
1
18
8940200816
O-Ring
2
19
8940200430
Ball Bearing
1
20
8940200773
Front plate
1
21
8940200772
Rotor
1
22
8940200774
Blade
10
23
8940200775
Liner
1
24
8940200784
Pin
1
25
8940200776
Rear plate
1
26
8940202422
Ball Bearing
1
28
8940208348
Case
1
29
8940200941
O-Ring
1
30
8940200763
Reverse Valve bushing
1
31
8940200771
Valve Rod
1
32
8940202294
Lever
1
33
8940200782
Spring Pin
1
34
8940202285
Suspensor
1
35
8940200781
Spring Pin
1
36
8940200778
O-Ring
2
37
8940200770
Ball
1
38
8940200764
Switch spring
1
39
8940202350
O-Ring
1
40
8940200768
Reverse valve knob
1
41
8940200783
Spring pin
1
42
8940200767
Positioning screw
1
43
8940200719
O-Ring
1
44
8940200824
Regulator Valve sleeve
1
45
8940200796
O-Ring
1
46
8940200825
Regulator Valve rod
1
47
8940200809
Steel Ball
1
48
8940200769
Spring
1
49
8940203933
Air Inlet
1
50
8940200353
Plug
1
51
8940200620
Cross Bits
1
-
8940204098
Warning label (not shown)
1
-
8940208074
CP ring (not shown)
1
-
6158728990
CP Name plate (not shown)
1
-
8940208401 Tune-up kit
(Incl. 5, 18, 19, 22, 26, 29, 36, 39, 43 & 45)
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
8940200353 Chicago Pneumatic Cap Plug 8940200353 Chicago Pneumatic Cap Plug

8940200353 Chicago Pneumatic Cap Plug

Price $3.90
8940200620 Chicago Pneumatic Cross Bit 8940200620 Chicago Pneumatic Cross Bit

8940200620 Chicago Pneumatic Cross Bit

Price $5.40
8940200719 Chicago Pneumatic O Ring 8940200719 Chicago Pneumatic O Ring

8940200719 Chicago Pneumatic O Ring

Price $3.89
8940200751 Chicago Pneumatic Snap Ring 8940200751 Chicago Pneumatic Snap Ring

8940200751 Chicago Pneumatic Snap Ring

Price $3.89
8940200752 Chicago Pneumatic Spring Seat 8940200752 Chicago Pneumatic Spring Seat

8940200752 Chicago Pneumatic Spring Seat

Price $5.33
8940200753 Chicago Pneumatic Spring 8940200753 Chicago Pneumatic Spring

8940200753 Chicago Pneumatic Spring

Price $3.89
8940200754 Chicago Pneumatic Lock Sleeve 8940200754 Chicago Pneumatic Lock Sleeve

8940200754 Chicago Pneumatic Lock Sleeve

Price $17.71
8940200757 Chicago Pneumatic Bushing 8940200757 Chicago Pneumatic Bushing

8940200757 Chicago Pneumatic Bushing

Price $14.22
8940200758 Chicago Pneumatic Cage 8940200758 Chicago Pneumatic Cage

8940200758 Chicago Pneumatic Cage

Price $44.20
8940200759 Chicago Pneumatic Impact Claw 8940200759 Chicago Pneumatic Impact Claw

8940200759 Chicago Pneumatic Impact Claw

Price $27.98
8940200760 Chicago Pneumatic Transmission Sleeve 8940200760 Chicago Pneumatic Transmission Sleeve

8940200760 Chicago Pneumatic Transmission Sleeve

Price $29.49
8940200761 Chicago Pneumatic Gasket 8940200761 Chicago Pneumatic Gasket

8940200761 Chicago Pneumatic Gasket

Price $5.41
8940200764 Chicago Pneumatic Spring Switch 8940200764 Chicago Pneumatic Spring Switch

8940200764 Chicago Pneumatic Spring Switch

Price $3.89
8940200768 Chicago Pneumatic Reverse Knob 8940200768 Chicago Pneumatic Reverse Knob

8940200768 Chicago Pneumatic Reverse Knob

Price $3.89
8940200769 Chicago Pneumatic Spring 8940200769 Chicago Pneumatic Spring

8940200769 Chicago Pneumatic Spring

Price $3.89
8940200770 Chicago Pneumatic Ball 8940200770 Chicago Pneumatic Ball

8940200770 Chicago Pneumatic Ball

Price $3.90
8940200771 Chicago Pneumatic Stem Switch 8940200771 Chicago Pneumatic Stem Switch

8940200771 Chicago Pneumatic Stem Switch

Price $3.89
8940200774 Chicago Pneumatic Blade 8940200774 Chicago Pneumatic Blade

8940200774 Chicago Pneumatic Blade

Price $3.89
8940200776 Chicago Pneumatic Rear Plate 8940200776 Chicago Pneumatic Rear Plate

8940200776 Chicago Pneumatic Rear Plate

Price $19.61
8940200778 Chicago Pneumatic O Ring 8940200778 Chicago Pneumatic O Ring

8940200778 Chicago Pneumatic O Ring

Price $3.89
8940200780 Chicago Pneumatic Needle Roller 8940200780 Chicago Pneumatic Needle Roller

8940200780 Chicago Pneumatic Needle Roller

Price $3.90
8940200781 Chicago Pneumatic Spring Pin 8940200781 Chicago Pneumatic Spring Pin

8940200781 Chicago Pneumatic Spring Pin

Price $3.13
8940200782 Chicago Pneumatic Spring Pin 8940200782 Chicago Pneumatic Spring Pin

8940200782 Chicago Pneumatic Spring Pin

Price $3.90
8940200783 Chicago Pneumatic Spring Pin 8940200783 Chicago Pneumatic Spring Pin

8940200783 Chicago Pneumatic Spring Pin

Discontinued
8940200784 Chicago Pneumatic Spring Pin 8940200784 Chicago Pneumatic Spring Pin

8940200784 Chicago Pneumatic Spring Pin

Price $3.90
8940200790 Chicago Pneumatic Adjusting Gasket 8940200790 Chicago Pneumatic Adjusting Gasket

8940200790 Chicago Pneumatic Adjusting Gasket

Price $3.04
8940200796 Chicago Pneumatic O Ring 8940200796 Chicago Pneumatic O Ring

8940200796 Chicago Pneumatic O Ring

Price $3.90
8940200813 Chicago Pneumatic Pressing Nut 8940200813 Chicago Pneumatic Pressing Nut

8940200813 Chicago Pneumatic Pressing Nut

Discontinued
8940200814 Chicago Pneumatic Exhaust Deflector 8940200814 Chicago Pneumatic Exhaust Deflector

8940200814 Chicago Pneumatic Exhaust Deflector

Discontinued
8940200815 Chicago Pneumatic Silencing Collar 8940200815 Chicago Pneumatic Silencing Collar

8940200815 Chicago Pneumatic Silencing Collar

Price $3.89
8940200818 Chicago Pneumatic Anvil 8940200818 Chicago Pneumatic Anvil

8940200818 Chicago Pneumatic Anvil

Price $82.57
8940200941 Chicago Pneumatic O Ring 8940200941 Chicago Pneumatic O Ring

8940200941 Chicago Pneumatic O Ring

Price $3.89
8940202285 Chicago Pneumatic Suspension Bail 8940202285 Chicago Pneumatic Suspension Bail

8940202285 Chicago Pneumatic Suspension Bail

Discontinued
8940202294 Chicago Pneumatic Lever 8940202294 Chicago Pneumatic Lever

8940202294 Chicago Pneumatic Lever

Price $3.89
8940202350 Chicago Pneumatic Seal O Ring 8940202350 Chicago Pneumatic Seal O Ring

8940202350 Chicago Pneumatic Seal O Ring

Price $3.89
8940202422 Chicago Pneumatic Bearing 8940202422 Chicago Pneumatic Bearing

8940202422 Chicago Pneumatic Bearing

Price $5.41
8940203933 Chicago Pneumatic Air Inlet 8940203933 Chicago Pneumatic Air Inlet

8940203933 Chicago Pneumatic Air Inlet

Price $25.04
8940208401 Chicago Pneumatic Tune Up Kit (Rp2037) 8940208401 Chicago Pneumatic Tune Up Kit (Rp2037)

8940208401 Chicago Pneumatic Tune Up Kit (Rp2037)

Price $26.55
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86

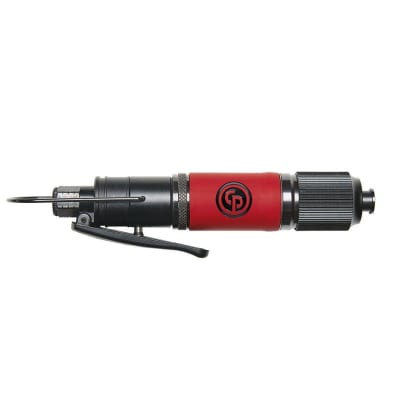

CP2828 Chicago Pneumatic 1/4" Hex Impact Driver CP2828 Chicago Pneumatic 1/4" Hex Impact Driver
