117-009 3Z914 Dayton 160 amp MIG welder

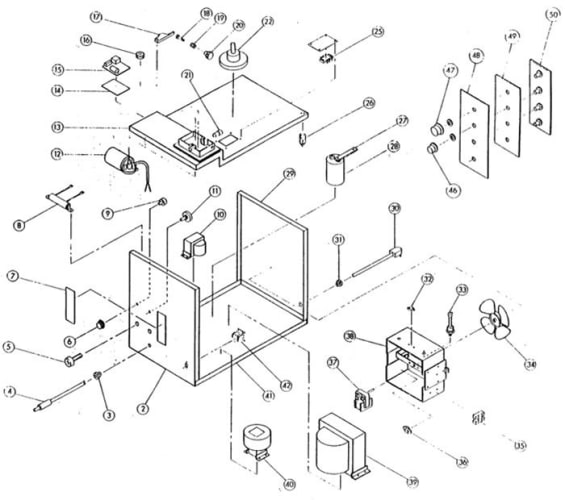

117-009 Replacement Parts List
Item No.
Customer #
Description
2
410-421-050
Base, Front Panel
3
541-004-000
Strain Relief
4
860-525-000
Cable with receptacle
5
312-045-000
Receptacle, Panel Mount
6
246-095-000
Knob, 1.5"
7
711-140-060
Control Panel
8
860-523-000
Resistor Assembly, 25 Ohm, 50 Watt
9
246-120-000
Potentiometer, 5k, 1/4 Watt
10
880-041-888
Control Transformer, 230 Volt AC to 24 Volt DC, 6 Amp
11
246-052-666
Switch, 9 Position
12
860-581-100
Drive Motor
13
410-389-010
Drive Deck
14
512-041-000
Insulation
15
860-614-666
Main Circuit Board wtih Transistor
16
4323
Drive Roller, 0.024 / 0.030 / 0.035

4347,
310-154-000
Drive Roller, 0.045 Serrated
17
310-123-000
Tension Bar with Bearing
18
081-044-000
Tension Bolt
19
330-021-000
Tension Spring
20
246-113-000
Tension Knob
21
410-325-000
Inlet Guide Tube
22
312-066-666
Spindle Assembly
25
239-102-000
Terminal Block
26

Gas Solenoid, 24 Volt DC
27
410-190-000
Buss Bar
28

Capacitor, 45,000 mf, 45 Volt DC
29
410-387-010
Base, Back Panel
30
248-165-000
Power Cord, 10/3, 77"
31
541-004-000
Strain Relief
32
216-053-000
Thermostat
33
214-004-200
Diode
34
316-010-000
Fan Blade, 8"
35
216-062-000
Triac Relay, 75 Amp
36
221-006-000
Transistor (Included with 16)
37
216-063-000
Fan Motor, 230 Volt AC
38
860-692-000
Fan Shroud, Heat Sink Assembly
39
860-669-000
Transformer
40
860-670-000
Reactor Coil
41
410-386-010
Base, Bottom Panel
42
216-042-000
Power Switch, 230 Volt AC, 40 Amp
43
410-390-010
Hood
44
410-391-010
Right Side Panel
45
410-392-010
Left Side Panel
46
238-009-500
Ground Cable with Plug & Clamp 12' (Not Shown)
47
4365
Mig Gun Assembly, 12' (Not Shown)
48

Mig Gun Assembly, 15' (Not Shown)
49
860-489-666
Spot-Stitch Board (Not Shown)
Sort By:
Page of 1
